• Model NO.：ZCL-3-x 1250
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Material Thickness：3mm
• Material Width：1250mm
• Finished Length：300-6000mm
• Length Accuracy：0.3mm
• Diagonal Accuracy：0.5mm
• Leveling Accuracy：1mm,M2
• Line Speed：70m,Min
• Coil Weight：5, 10, 15, 20, 25, 30 Tons
• Transport Package：Seaworthy
• Trademark：zeye
• Origin：China
• HS Code：84623120
• Production Capacity：60

Basic Info.

Model NO. ZCL-3-x 1250 Warranty 12 Months Customized Customized Advantage Use Widely Condition New Material Thickness 3mm Material Width 1250mm Finished Length 300-6000mm Length Accuracy 0.3mm Diagonal Accuracy 0.5mm Leveling Accuracy 1mm/M2 Line Speed 70m/Min Coil Weight 5, 10, 15, 20, 25, 30 Tons Transport Package Seaworthy Trademark zeye Origin China HS Code 84623120 Production Capacity 60

Product Description

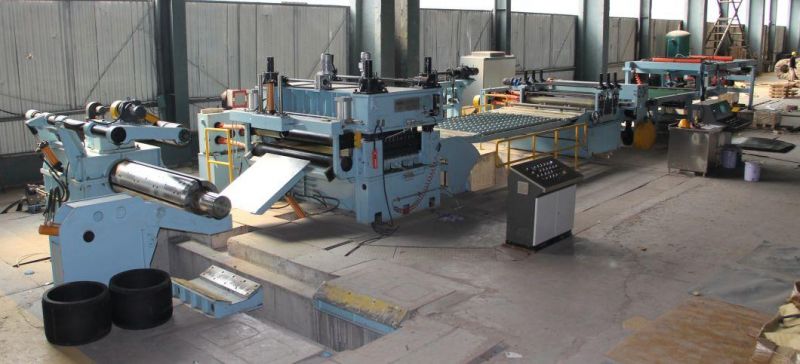

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveliing, measuring, cutting to length and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

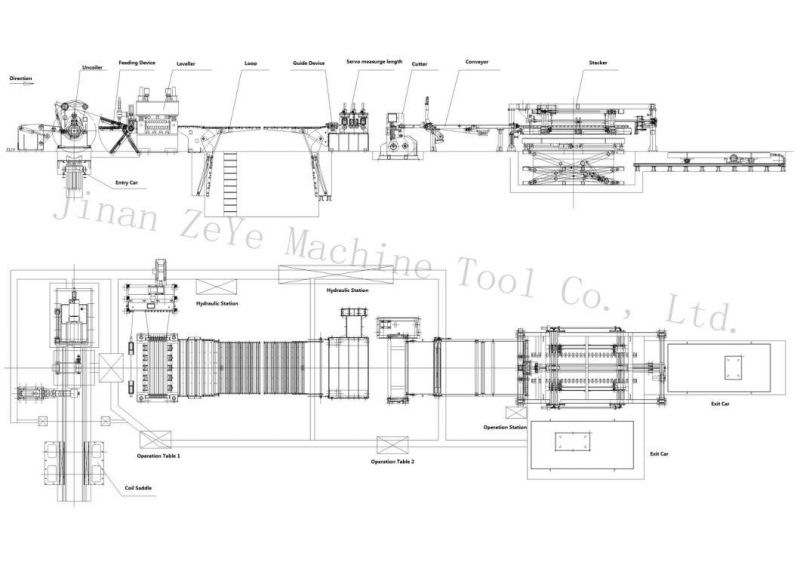

Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Precision leveler	1 set
5	Looper	1 set
6	Side guide	2 sets
7	Servo measure the length	1 set
8	Shear	1 set
9	Conveyor belt	1 set
10	Stacker	1 set
11	Blower	1 set
12	Exit coil car	1 set
13	Hydraulic system	1 set
14	Electrical system	1 set

Main Technical Parameters

Model	ZCL-1	ZCL-2	ZCL-3	ZCL-4
Material thickness	0.2-1.0mm	0.3-2.0 mm	0.4-3.0 mm	0.5-4.0 mm
Material width	300-1250 mm	300-1600 mm	300-1800 mm	300-1800 mm
Finished length	300-3000 mm	300-3000 mm	300-4000 mm	400-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	70 m/min	60 m/min	60 m/min	60 m/min
Coil weight	5,10,15 t	10,15,20 t	15,15,20 t	20,25,30 t

Our advantages

1	Reasonable structure, convenient to adjust, high precision and high efficiency.
2	Automatically detect the material parameter , one key to load coil, automatically centering adjustment.
3	Automatically switch the double stacker and detect flap, calculate precisely ,safe and reliable
4	The manufacturing process is in strict accordance with the mechanical standards, tracking and controlling the manufacture of each part.
5	Cooperating with well-known manufacturers at home and abroad, introducing the first class shear technology ,we have one professional technical team to develop and extend the high quality and high efficiency automatic plate processing equipment for users.
6	The imported bearing and sliding rail and the advanced lubrication system to ensure the longer using life.

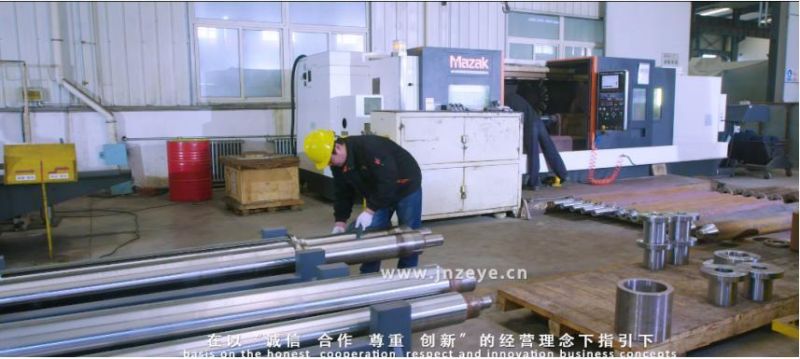

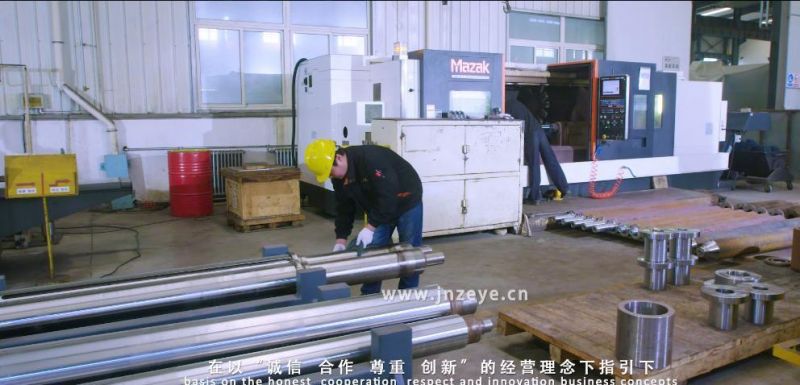

7	Siemens, Schneider etc.imported high end brand electrical components,as well as, Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce high precision shear line with stable quality.

Our Certifictes


              ISO9001:2015 certificate                       High New Technical Enterprise                                         CE certificate


Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.

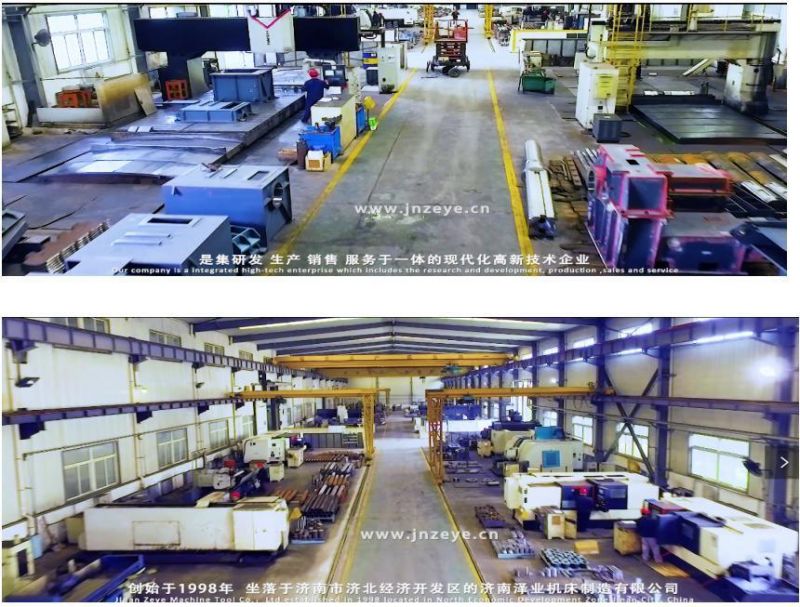

Company introduction



Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.



Welcome to visit our factory.



FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.

Q: What's the shipping cost from China to our country ?
A: We can ship equipment to your port by sea, shipping cost depends on shipping agend and season, FOB,  C&F as well as CIF are all acceptable.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
We offer online service 24 hours per day, Skype, Wechat, Email etc, you could contact us at your available time.
