• Model NO.：CS-A,CS-B,CS-C
• Main Drive Shaft Speed：355r,M
• Wire Diameter：2.0-3.0mm
• Barbed Wire Diameter：1.6-2.8mm
• Barbed Space：102 , 127mm
• Transport Package：Wooden Case or Nude Packaging
• Specification：3100*1000*1150mm
• Trademark：JIAKE
• Origin：Hebei, China
• Production Capacity：43sets,Month
• Package size per unit product：2000.00cm * 1200.00cm * 1500.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. CS-A/CS-B/CS-C Main Drive Shaft Speed 355r/M Wire Diameter 2.0-3.0mm Barbed Wire Diameter 1.6-2.8mm Barbed Space 102 / 127mm Transport Package Wooden Case or Nude Packaging Specification 3100*1000*1150mm Trademark JIAKE Origin Hebei, China Production Capacity 43sets/Month

Packaging & Delivery

Package size per unit product 2000.00cm * 1200.00cm * 1500.00cm Gross weight per unit product 1000.000kg

Product Description

Barbed Wire Fencing Machine1.Description:

1. Application: The machine can produce barbed wire which is extensively used in national defenses,  railway, agriculture, animal husbandry and other industries.
2. Manually installation, Easy to set up;
3. Steel cover on driving shaft for safety operation;
4. Saving materials and high capacity;
5. Counter to count the number of barbs and calculate length of barbed wire.
6. Button switches and leveler to start and stop machine easily.
7. Quick and easy roll extraction from the machine.
8. Guiding system to avoid wire snarls.

2.Technical parameter:

Model	CS-B Type
Motor power	2.2KW
Main drive shaft speed	355r/m
Wire Diameter	2.0-3.0mm
Barbed wire diameter	1.6-2.8mm
Barbed space	102 / 127mm
Theoretical production	40kg/h, 17m/min
Raw material	Galvanized steel wire or PVC coated wire.
Total weight	1000kg
Dimension	3100×1000×1150mm

3.Finished Mesh:

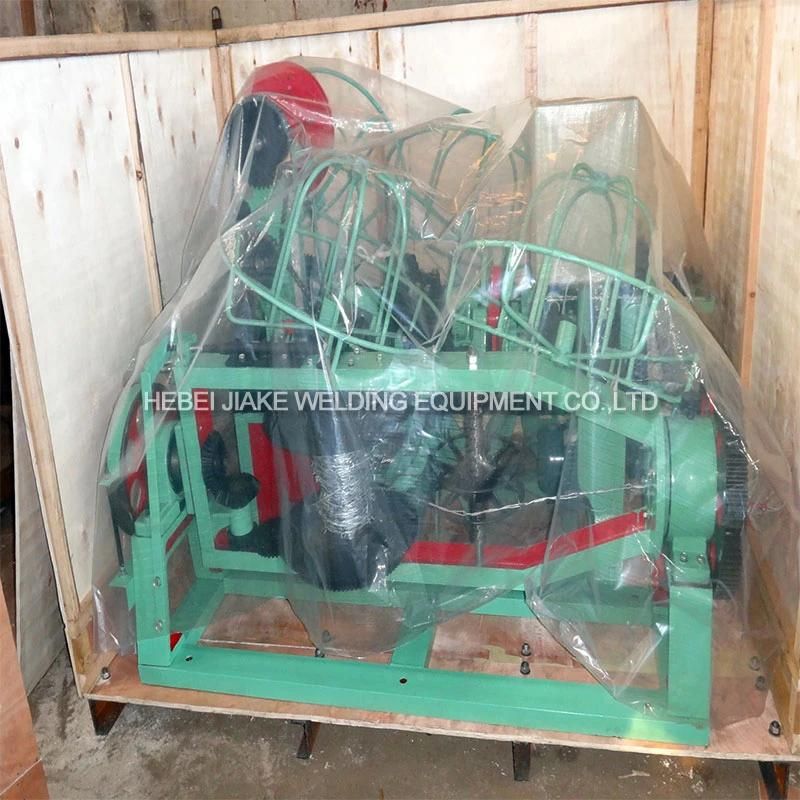

4.Loading Pictures:


5.Certifications we have:

Our machine received a great deal of patents.

We also provid Oringinal Certification,PVoC Certification,ECTN and so on.

6.After-sales service:

NO.1

We provide exactly install videos and live video of instruction.

NO.2

We promiss the original part purchasing of machines in ten years.

Contact Info:

Sales manager:Alice Han
Factory Add:Industrial Zone,Anping,Hebei,China





Inquiry now,we will replay as soon as possible.
