• Model NO.：K10,K20,K30,K40,Yl10.2,Yg6,Yg6X,Yg8,Yg10X,Yl10.2
• Material：Tungsten Carbide
• Application：Metal Recycling Machine, Metal Cutting Machine, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Casting Machinery

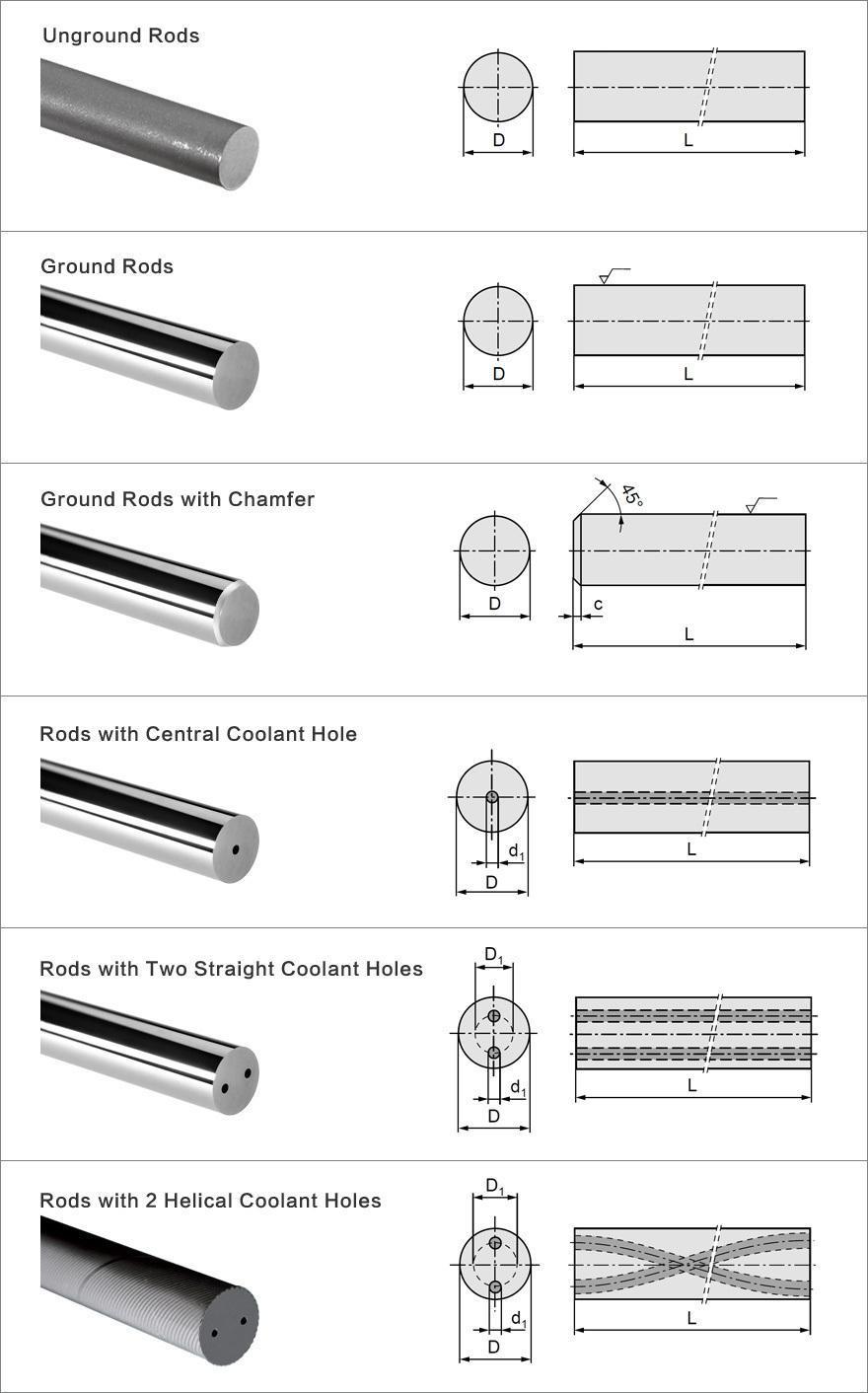

• Types：One,Two Straight Coolant Hole
• Transport Package：Plastic Box Inside Parper Box Outside
• Specification：100% virgin material
• Trademark：Evergreen or EDM
• Origin：Zhuzhou, China
• HS Code：8209009000
• Production Capacity：5tons Per Month
• Package size per unit product：40.00cm * 25.00cm * 20.00cm
• Gross weight per unit product：1.000kg

Basic Info.

Model NO. K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2 Material Tungsten Carbide Application Metal Recycling Machine, Metal Cutting Machine, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Casting Machinery Types One/Two Straight Coolant Hole Transport Package Plastic Box Inside Parper Box Outside Specification 100% virgin material Trademark Evergreen or EDM Origin Zhuzhou, China HS Code 8209009000 Production Capacity 5tons Per Month

Packaging & Delivery

Package size per unit product 40.00cm * 25.00cm * 20.00cm Gross weight per unit product 1.000kg

Product Description

Product Description
We provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 25 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4.  Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery
Recommanded grades to your refer:

EG GRADE	ISO CODE	GRAIN SIZE(μm)	DENSITY(G/cm³)	HARDNESS	TRS(N/MM)
EG06	K05	0.5	14.8	94.3	3800
EG08	K10	0.6	14.75	92.2	3900
YL10.2	K20	0.6	14.5	91.8	4000
EG12	K30	0.5	14.1	92.5	4000
YG15X	K40	0.6	14.0	89.5	4000

Dimension and Tolerance


Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.45	-0/+5.0
Max BL-Φ50.0×330	+0.20/+0.45	-0/+5.0

Diameter	h4	h5	h6	h7
0-3.0mm 0-0.1181 in.	0.003mm 0.00012 in.	0.004 mm 0.00015 in.	0.006 mm 0.00024 in.	0.010 mm 0.00039 in.
3.001-6.0mm 0.1181 - 0.2362 in.	0.004mm 0.00015 in.	0.005 mm 0.00020 in.	0.008 mm 0.00031 in.	0.012 mm 0.00047 in.
6.001-10.0 mm 0.2363 - 0.3937 in.	0.004mm 0.00015 in.	0.006 mm 0.00024 in.	0.009 mm 0.00035 in.	0.015 mm 0.00059 in.
10.001-18.0 mm 0.3938 - 0.7087 in.	0.005mm 0.00020 in.	0.008 mm 0.00031 in.	0.011 mm 0.00043 in.	0.018 mm 0.00071 in.
18.001-30.0 mm 0.7088 - 1.1811 in.	0.006mm 0.00024 in.	0.009 mm 0.00035 in.	0.013 mm 0.00051 in.	0.021 mm 0.00083 in.
30.001-50.0 mm 1.1812 - 1.9685 in.	0.007mm 0.00028 in.	0.011 mm 0.00043 in.	0.016 mm 0.00063 in.	0.025 mm 0.00098 in.

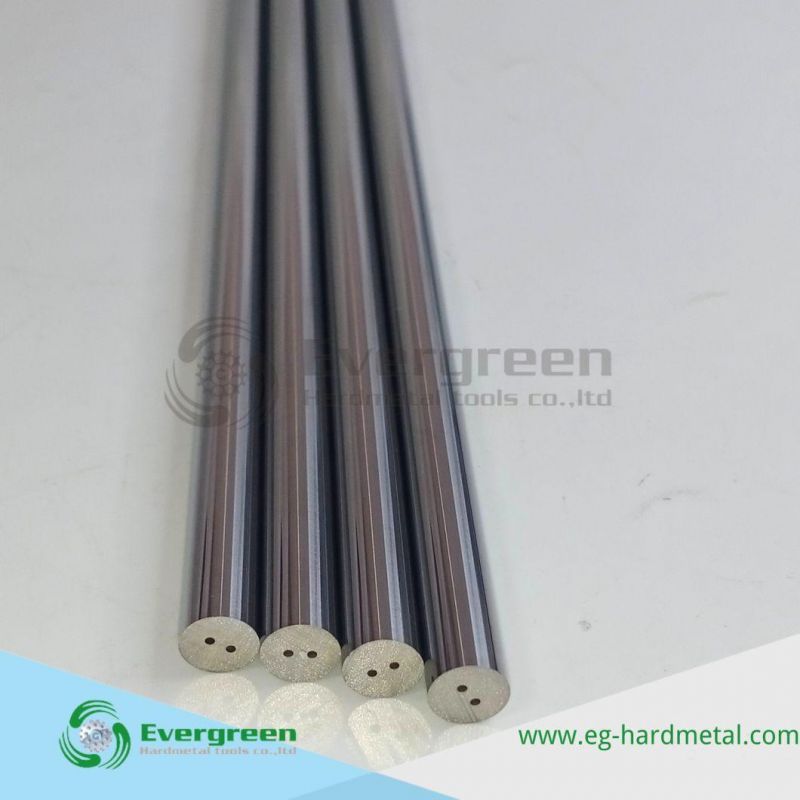

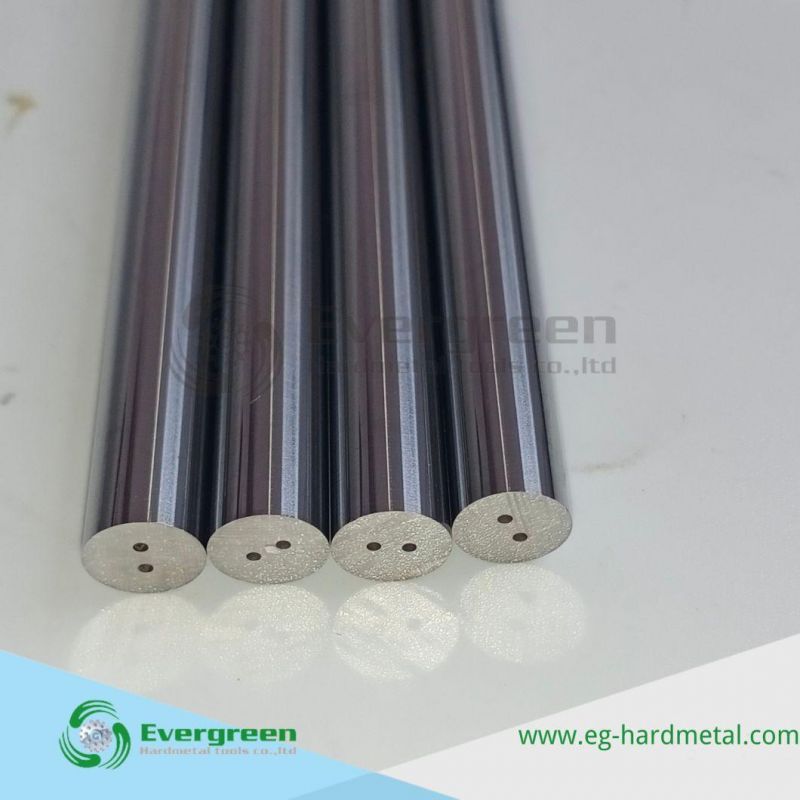

Products Show:

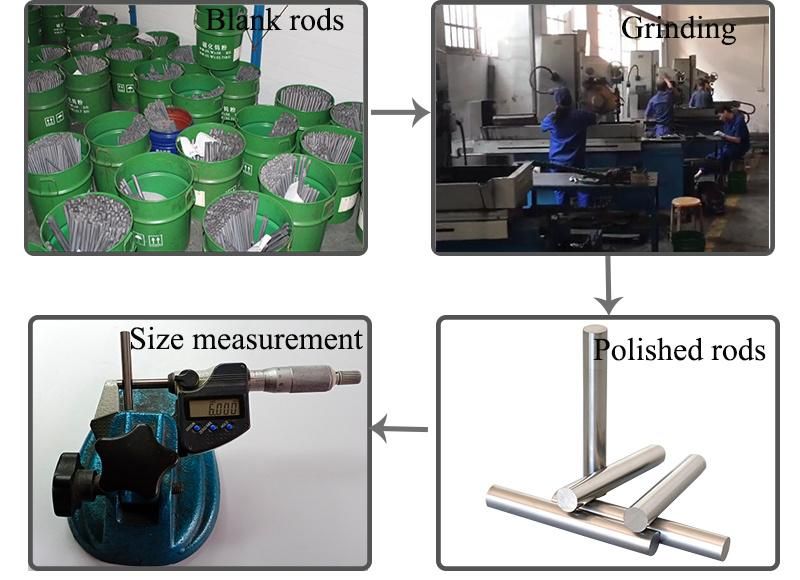

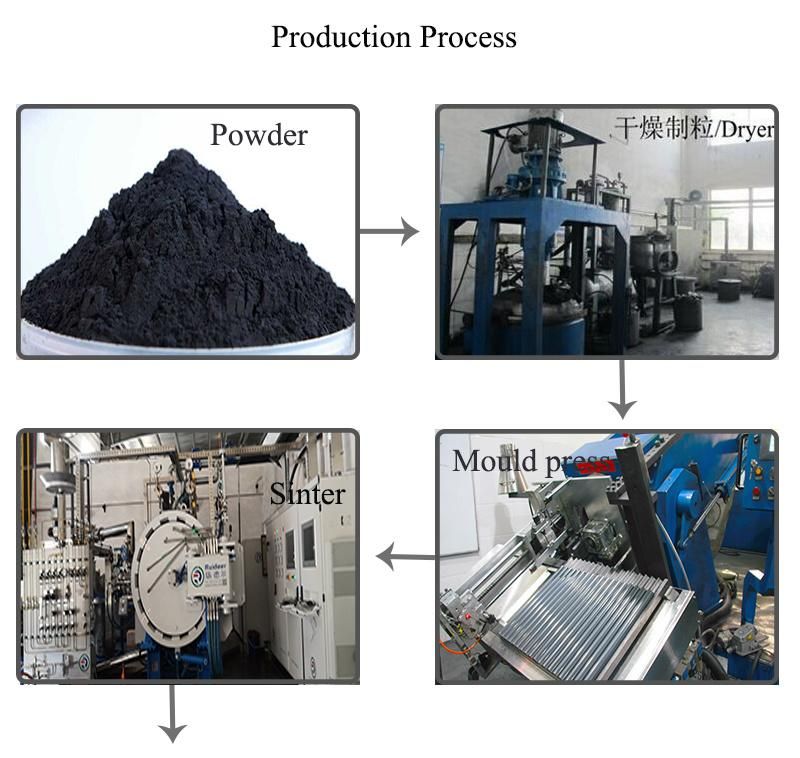

Production Process:

Quality&Packing
