• Model NO.：HCT-826
• Feeding Roller Pairs：2 Pairs
• Spring Index：3
• Max Pitch of Spring：43mm
• Weight：1200kg
• Max Feeding Speed：280m,Min
• Servo motor：YASKAWA
• Feeding motor：4.4kw
• Cutter motor：1.3kw*2
• Cam motor：0.85*2kw
• Pitch motor：0.75kw
• Mandrel moving up-down Motor：1.0kw
• Mandrel Reurn Motor：1.0kw
• Packing dimenstion：L2010*W1710*H2100
• Transport Package：Vacuum Pakages&Wooden Case
• Specification：L1000*W1400*H1900mm
• Trademark：Wecoil
• Origin：China
• HS Code：8463300000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. HCT-826 Feeding Roller Pairs 2 Pairs Spring Index 3 Max Pitch of Spring 43mm Weight 1200kg Max Feeding Speed 280m/Min Servo motor YASKAWA Feeding motor 4.4kw Cutter motor 1.3kw*2 Cam motor 0.85*2kw Pitch motor 0.75kw Mandrel moving up-down Motor 1.0kw Mandrel Reurn Motor 1.0kw Packing dimenstion L2010*W1710*H2100 Transport Package Vacuum Pakages&Wooden Case Specification L1000*W1400*H1900mm Trademark Wecoil Origin China HS Code 8463300000 Production Capacity 100 Sets/Year

Product Description

WECOIL Spring Machinery--Professional for CNC Spring Machine over 30 years, the leader for CNC Spring Machine Industry.

Company Profile:

Wecoil (Dongguan Wecoil Spring Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic Wire Feeding machine, the wire size covers 0.15mm to 20.0mm.



WECOIl Advantanges:

1. The founder Mr. Lau has 34 years experience in CNC Spring Machinery Industry since 1986.

2. Over 20 different types of CNC Spring Coiling Machine, CNC Spring Forming Machine, CNC Versatile Spring Machine to fullfil clients with more choices.

3. 2000m² large production floor to guarantee enough inventory.

4. Adopt the most widely used Taiwan Hust Controller and Japan Sanyo/Yaskawa Motor and high-end precision bearings such as NSK/NTN/IKO.

5. All the workers, Assembly Team, Electrical Team, Spring Testing Team, Sales team, even the Packaging  Personnel are with at least 7 years experience in Spring Machinery Industry which guarantee our machine with high performance.

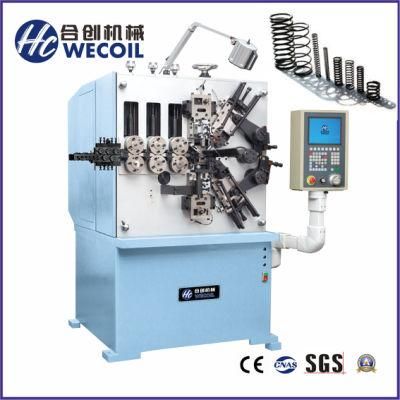

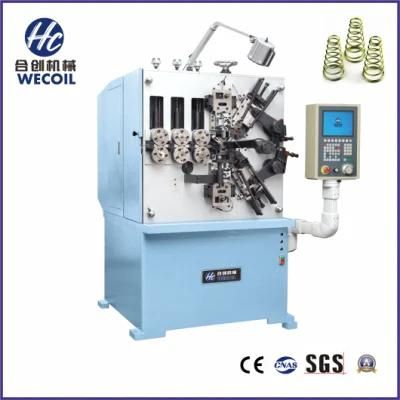

HCT-826--Machine Outlook:

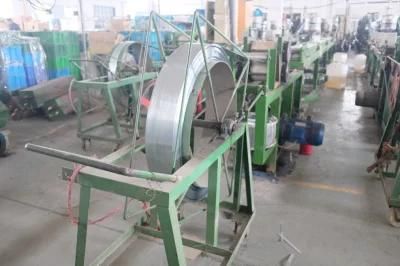

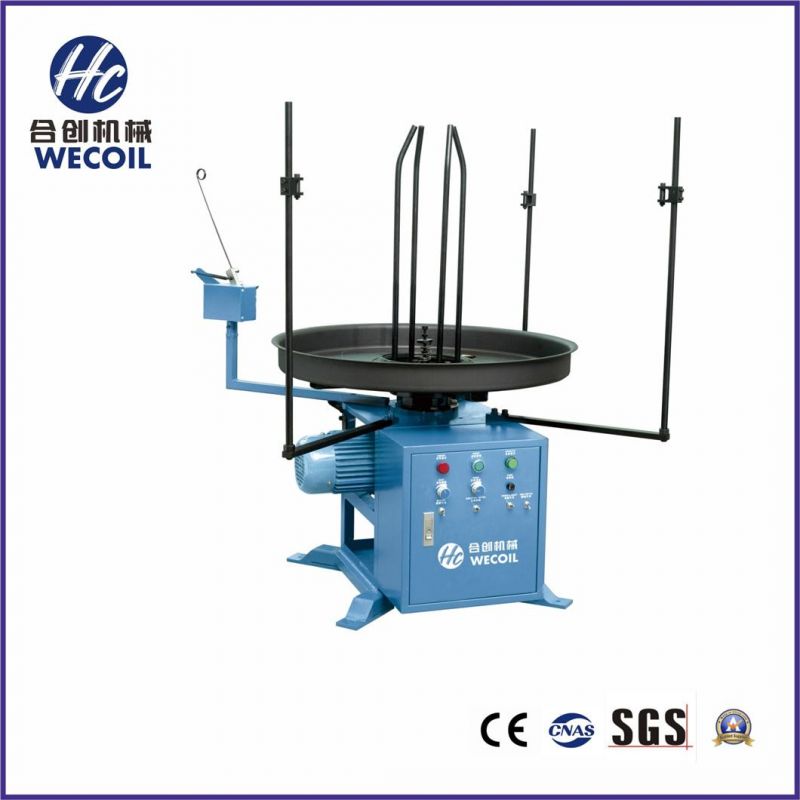

Related Wire Decoiler HCD-200

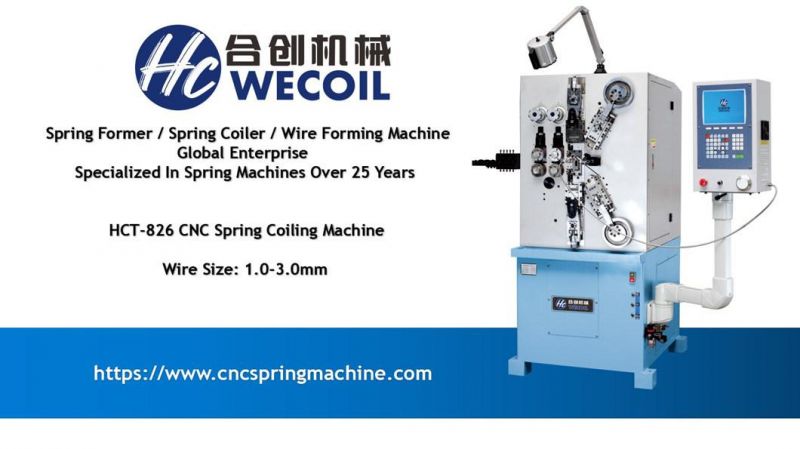

HCT-826 Brief Introduction Preview

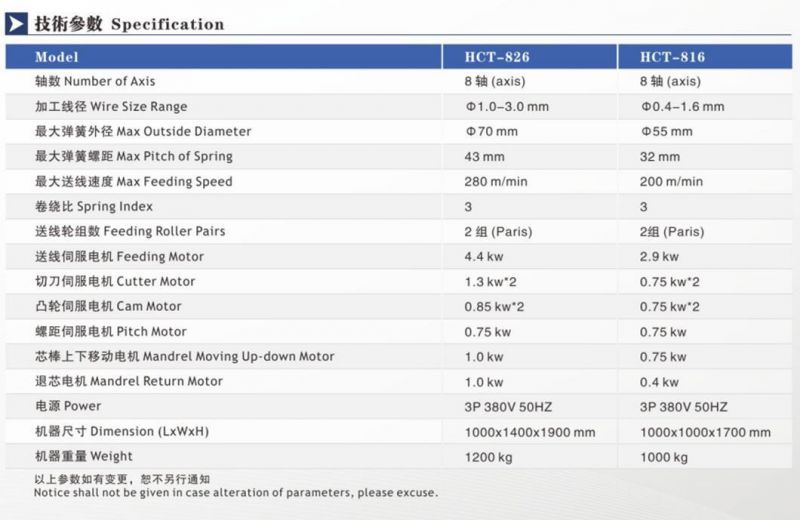

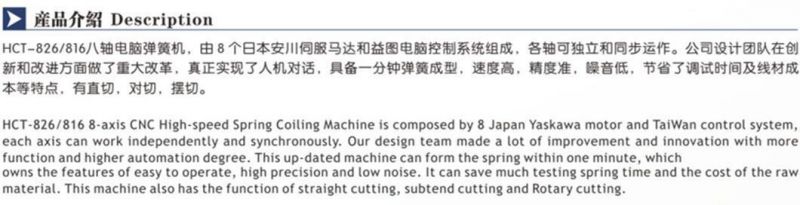

HCT-826 Machine Description and Specification

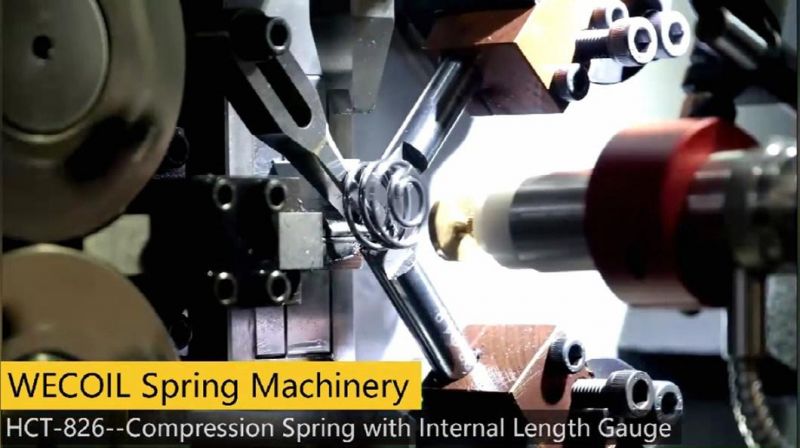

It adopts 8pcs Japan Yaskawa servo motor, Taiwan Hust Controller. It's can make all kinds of compression springs, torsion springs, tension springs, tower springs, magazine springs, drum-shaped springs. It can optional with internal length gauge & external length gauge. It's without cam and it's controlled direcitly by the independent servo motor, which make it easy to setup springs.

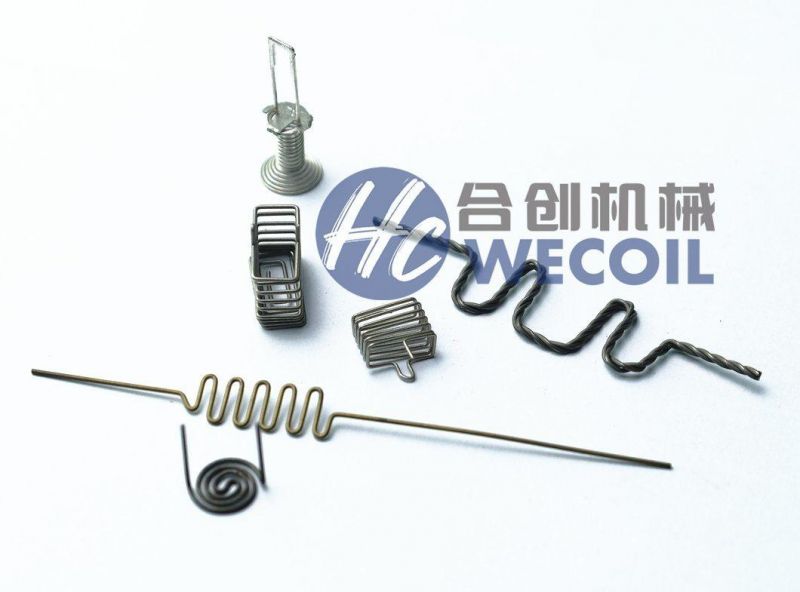

WECOIL--Springs Samples tested on Wecoil Spring Machinery


WECOIl--Packaged with Vaccum Package Wooden Case and Loading

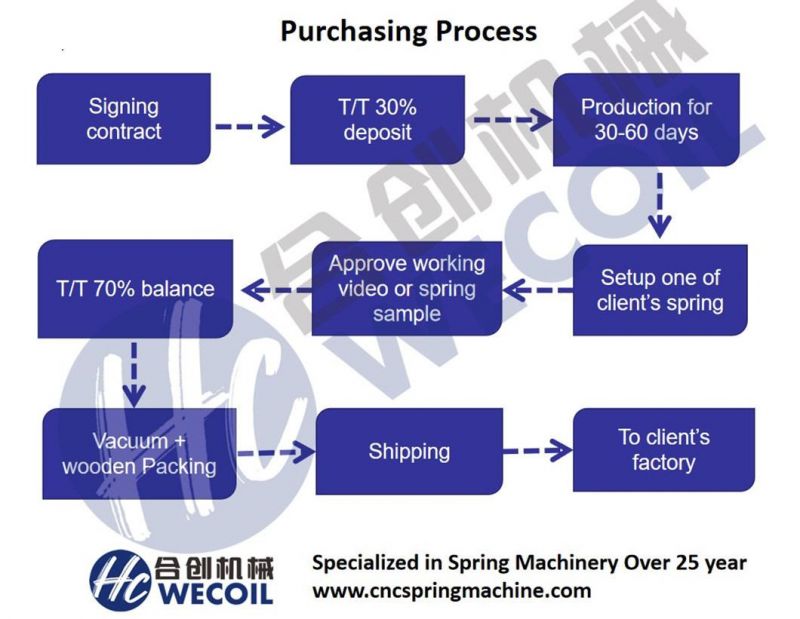

Purchasing Process



Wecoil High Quality professional pre-sale, sale and after-sale service.

1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery.

2. WECOIL team will always provide professional and patient consulting service to help clients find the suitable solution.

3. Quick and safe shipment as per your requirement,such as the booking, container loading, and shipping documents  etc...

4. WECOIL will provide technical support by email and phone, technicians will be available at your side if necessary.

5. One-year guarantee period exclude the easy torn parts.


Any Consultations and Inquiries are welcome!
