• Model NO.：ZZBJ

Basic Info.

Model NO. ZZBJ

Product Description

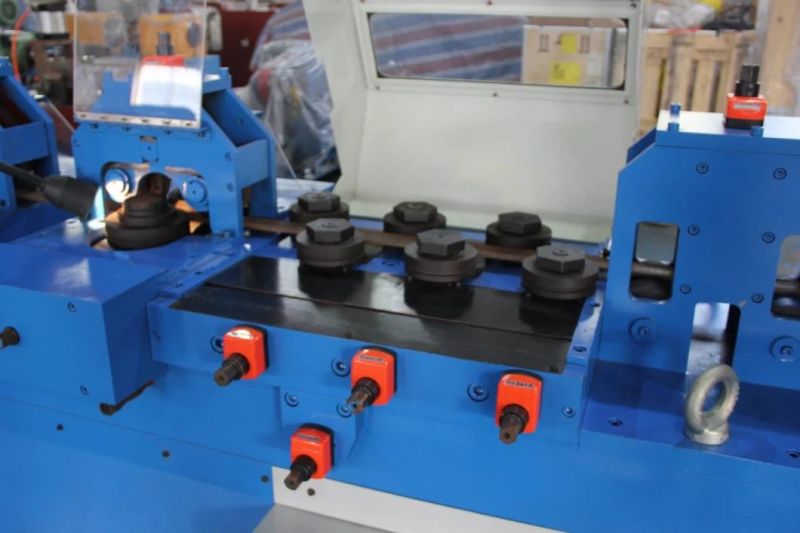

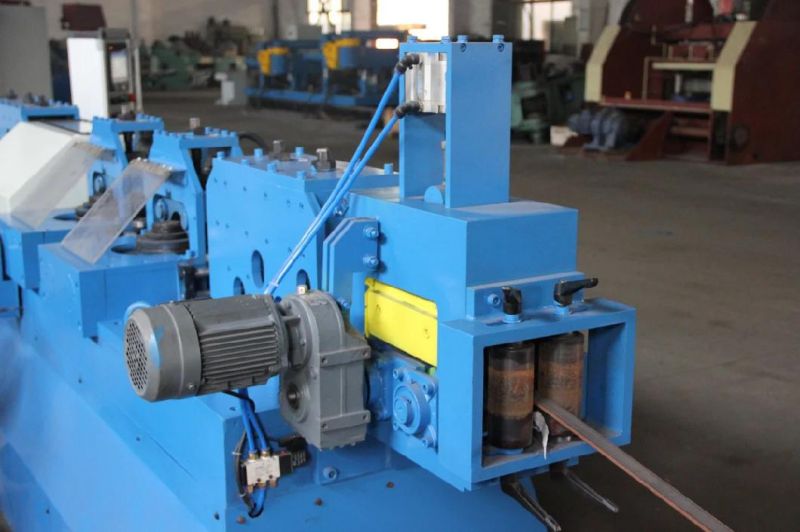

Fin-bar preparation is critical in ensuring an accurate panel dimension as well as welding quality, this equipment de-scales, straightens, calibrates the width and cuts the fin-bar to the correct size.




We manufacture 2 models of fin-bar calibration machine: ZZBJ-80 which works on fin-bar of 10-110mm with thickness ranging between 3-8mm. Also, ZZBJ-120 which works on fin-bar of 12-140mm with thickness ranging between 3-12mm.

Fin-bar Width	12-120 mm
Fin-bar Thickness	3-12 mm
Calibration Amount	≤ 2 mm
Calibration Accuracy	± 0.1 mm
Power Rating	7.5 KW
