• Powder Coating Line：Automatic
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Suitable：Rack Powder Coating Plant
• Transport Package：Negotation
• Specification：can be ordered
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1 Line for One Month

Basic Info.

Powder Coating Line Automatic After-Sales Service Provided Engineers Available to Service Machinery Overseas Suitable Rack Powder Coating Plant Transport Package Negotation Specification can be ordered Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1 Line for One Month

Product Description

Painting Machine / Equipment Line for Automatic Electrostatic Powder Coating

Working Process of  automatic Powder Coating Line

1. Spraying pretreatment → 2. Drying oven → 3. Workpieces into spray booth→ 4. After
spraying the workpieces will go into the curing oven(20~25min, 180~200ºC)→ 5. Go out of
the oven,and natural cooling→ 6. Unloading workpieces

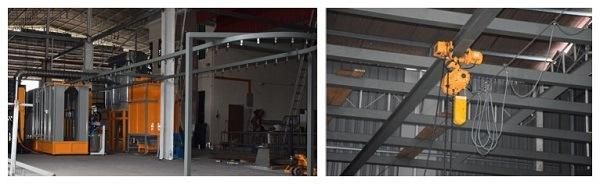

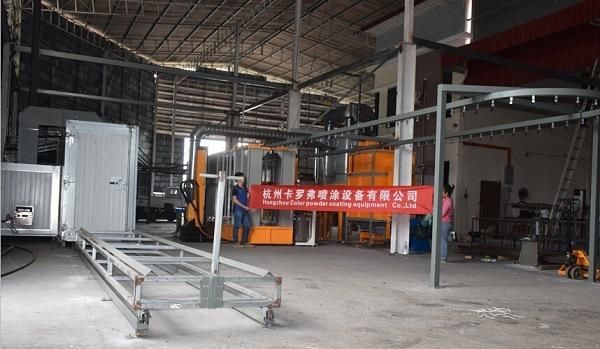

In our Malaysia Customer Factory
the size and design can be ordered  by the clients requirements

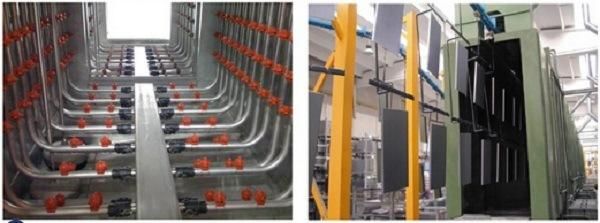

1. Spraying pretreatment:
Using spray pretreatment methods, dirt, oils and contaminants are removed from the
product's surface and phosphate or conversion coatings are applied to help prevent corrosion
and increase paint adhesion


this part,you can choose by your actual work piece,another type:tank commersion;
2. Drying oven

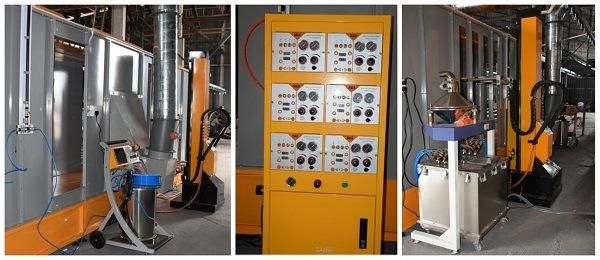

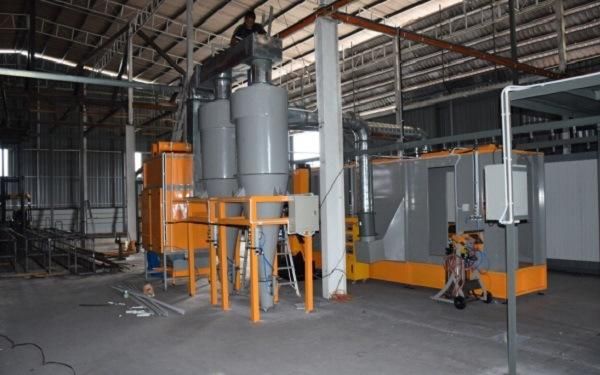

3.powder coating spraying booth system

1) It enables an automated cleaning procedure and consequently a quick color change.
2) Closed powder circuit - no powder escaping during coating or cleaning procedure. This prevents powder loss, and the workplace and the environment remain clean
3) level sensor optionally available.
4) takes place by the touch-sensitive operating panel of the control unit.

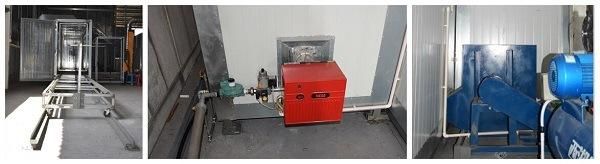

4.Curing oven heating ( heating energy ) selection
1. Gas hot air heating system ( full automatic ) ---- Which is preferred by box curing oven.
Powder coating line continuous operation can also be selected ( Box furnace or powder
coating line curing tunnel should choose gas system
2. Fuel hot air heating system ( full automatic ) ---- As oil prices rise, higher operating costs
3. Far-infrared radiation heating system ( full automatic ) --- Running costs are high, but the
equipment investment is the most economical, especially small quantities spraying may be
considered.

5.overhead conveyor system and conveyor systems ;

6.other machines:automatic gun with the reciprocator powder sieve,powder feed center,etc




We supply automatic, semi-automatic, manual and special type coating and painting lines
Powder coating lines for aluminum profiles ,metal powder coating plant consists
of pretreatment, powder coating, drying oven and curing oven, conveyor system and
electric control system.

 It will help user expand output, form mass production and  reduce cost in order to make products' price
 more competitive.
Meet your needs is our goal to provide you with high quality products, satisfactory service is our responsibility and our commitment
