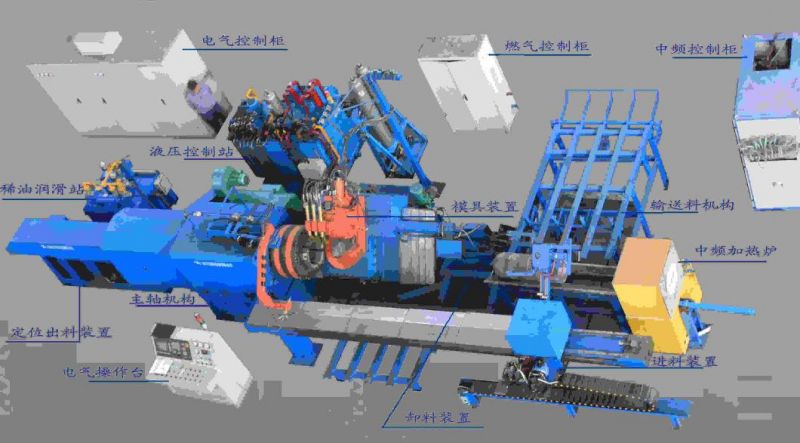

Roller Type Hot Spinning Machine, Hot Printing Machine Manufacture

Wuxi Longterm Machinery Technologies Co., Ltd.
  • After-sales Service：Available
  • Warranty：Available
  • Structure：Horizontal
  • Spinning Strength：General Spinning
  • Pressure Supply Type：Hydraulic Pressure
  • Spinning Direction：Forward

Base Info

  • Metal Material：Steel
  • Spinning Deformation Condition：Hot Spinning
  • Spinning Belt Wheel Type：Rolling V Type Belt Wheel
  • Spinning Wheel Number：Double
  • Finished Product：Pipe
  • Finished Product Shape：Cylinder Shape
  • Max. Cylinder Diameter：406mm
  • Mini Cylinder Diameter：232mm
  • Max. Cylinder Length：2000mm
  • Mini. Cylinder Length：750mm
  • Wall Thickness of Steel Pipe：5-15mm
  • Spindle Motor：144kw (DC)
  • Axial Stroke of The Slider：65mm
  • Radial Stroke of The Slider：17mm
  • Radial Clamping Force：1200kn
  • Spindle Speed (Adjustable)：0-600rpm
  • Axial Stroke of The Mold：450mm
  • DC Drive：Siemens
  • Maximum Axial Force：246kn
  • Maximum Axial Feed Speed of The Die：200mm,S
  • Maximum Rotary Wheel Torque：65kn.M
  • Transport Package：Plywooden Box or Steel Tray
  • Specification：4027*1980*2450
  • Trademark：LTM
  • Origin：Jiangsu, China
  • HS Code：8463900020
  • Production Capacity：5000PCS,Year

Description

Equipment center height1250 mm (spindle center from the bottom plane of the fuselage)Spindle motor144KW (DC)Axial stroke of the slider65mmRadial stroke of the slide17mmRadial clamping force1200KNSpindle speed0-600rpm adjustableDC DriveSiemensMaximum axial force246knMaximum axial feed speed of the die 200mm / sMaximum speed of rotary wheel rotation angle30° / sMaximum rotary wheel torque65KNWave Angle0-100Hydraulic motor90kwScale speed reversing valveItalian ATOSElectronic control systemSiemens 828DHeating power at the pipe end500KW / 1000HzPneumatic load6barRoller Type Hot Spinning Machine, Hot Printing Machine Manufacture
Hot spinning Making Progress
Pipe delivery- feeding --rotation heating ---unloading-- feeding--hot spinning--unloading.FAQQ: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What can you buy from us?
A: All the machine for the CNG cylinder production line.

Q: Why should you buy from us not from other suppliers?
A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNG
machinery with more than 25 years of experience and a strong professional R & D team

Q: What services can we provide?
A: Online technical support, On-site installation, Spare parts...

We need to know the following information to make the quotation to you:1. The diamater and  technical drawing of the cylinder.
2. Daily capacity.
