• Model NO.：YT-604
• Type：Rotary Polishing Machine
• Wax：Liquid
• Worker：1
• Station：4 Polishing Columns
• Air Pressure：0.4-0.75 MPa
• Transport Package：Wooden Case
• Specification：4700mm*4500mm*2300mm
• Trademark：Yatai
• Origin：Guangdong China
• HS Code：8460902000
• Production Capacity：20 Sets

automatic polishing machine manufacturer. The lock metal part automatic polishing machine consists of an electric box, four polishing heads, and a disc. The machine can automatically spray wax. control the capacity of wax, It doesn't need a worker to add wax to the machine. You can put the wax in the wax bucket. Easy to control. You can revise the data by touchscreen.



Technology advantage:

1: The polishing cloth wheel can compensate for pressure automatically. And calculate the wear and compensation. The wheel will be staying in pressure which is abrasion. It can improve efficiency and make the effect stable.

2: The automatic spray wax system is installed on the polishing wheel. It contains three parts which are a spray gun, an air tube, and a pressure bucket. The spray gun is driven by compressed air. Each quantity, time, and angle of waxing can be adjusted by touchscreen.





Design advantage:

1: The rotation speed of discs and shaft can be adjusted by technical requirements.

2: The polishing head can be up, down, forward and backward.

3: Disc is a running operation, It can be rough polishing, medium rough polishing, and fine polishing.



Suitable:

1: Faucet, lock metal, and door hinges



Parameter:

Model

YT-607

Item

lock metal part automatic polishing machine

Power

55KW

Speed

About 10-15s depending on the shape

Dimension

4700mm*4500mm*2300mm

Effect

Bright, mirror, brush

Net weight

About 15tons

Voltage

AC380V/50Hz

Air pressure

0.7Mpa



Quick Details:



Type: metal automatic polishing machine



Condition: New



CNC or Not: Not



Place of Origin: Guangdong, China



Brand Name: Yatai



Voltage: AC380V



Dimension(L*W*H):4700mm*4500mm*2300mm



Power (kW): 55KW



Key Selling Points:



Automatic



Applicable Industries: Faucet, lock metal, and door hinges



Machine Type: lock metal part automatic polishing machine



Machine size:4700mm*4500mm*2300mm



Machine Voltage: 55KW



Rated Power: AC380V/50Hz



Product name: Lock metal part automatic polishing equipment YT-C607



Supply Ability



Supply Ability:10 Piece/Pieces per Month



Packaging & Delivery



Packaging DetailsWooden Case



Port Guangdong CHINA



Lead Time :



Quantity(Pieces)1 - 5 30 days (Est. Time)



>5 Negotiable

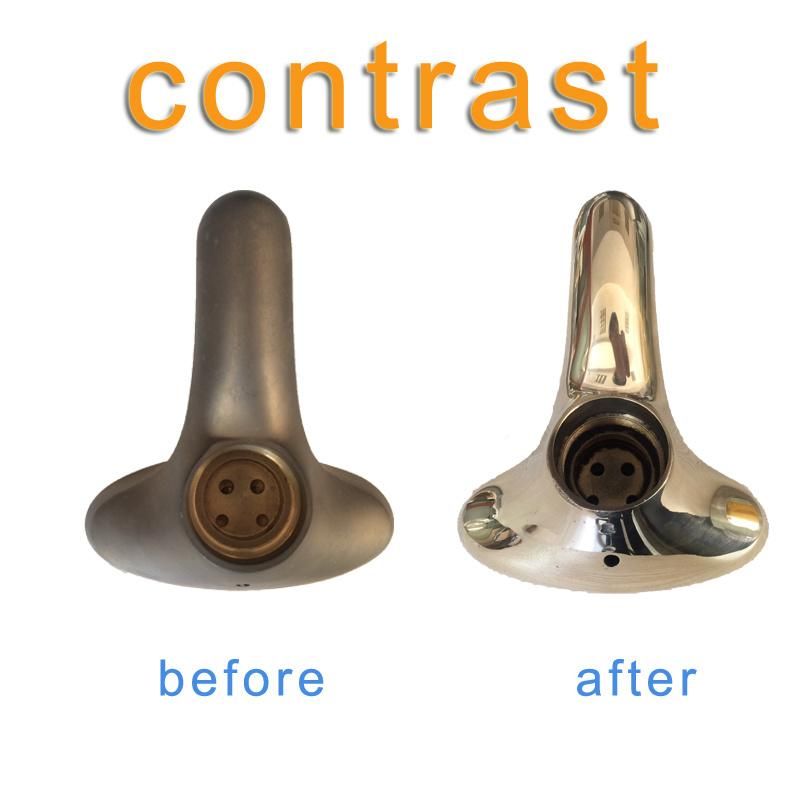

Polishing product:







Welcome to inquire about our business by phone or in person.



Including content :



Price, Product specification, model, Price terms, place of origin, Samples including prototypes and models, Min. Order, Lead Time, Supply Ability, Terms and conditions of sale and purchase, Packaging & Delivery and Management Certification.
