• Model NO.：CUT3-3
• Type：Portable
• Cutting Speed：0-5000mm,Min
• Effective Cutting Area：1500mm*2500mm;1500mm*3000mm
• Plasma Cutting Thickness：1.0mm-30mm
• Flame Cutting Thickness：1-300mm
• Flame Cutting Gas：Acetylene, Propane, Methane
• Work Power：220V,110V 50Hz 200W
• Support Software：Starcam, Fastcam, Freenest, Smartnest, Ibe, Type3
• Operator Interface Language：English, French, Russian, Portuguese, Spanish
• Transfers System：USB,SD,RS232
• Plasma Height Controller：Automatic Arc Voltage Height Controller
• Flame Cutting Height Controller：Electric Height Controller
• Start Fire：Automatic
• Weight：120kg
• Color：Yellow,Red,Customized
• Transport Package：Standard Export Wooden Case
• Specification：3140*457*390mm+587*560*605mm
• Trademark：CNCAM
• Origin：China
• HS Code：8456401000
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. CUT3-3 Type Portable Cutting Speed 0-5000mm/Min Effective Cutting Area 1500mm*2500mm;1500mm*3000mm Plasma Cutting Thickness 1.0mm-30mm Flame Cutting Thickness 1-300mm Flame Cutting Gas Acetylene, Propane, Methane Work Power 220V/110V 50Hz 200W Support Software Starcam, Fastcam, Freenest, Smartnest, Ibe, Type3 Operator Interface Language English, French, Russian, Portuguese, Spanish Transfers System USB/SD/RS232 Plasma Height Controller Automatic Arc Voltage Height Controller Flame Cutting Height Controller Electric Height Controller Start Fire Automatic Weight 120kg Color Yellow/Red/Customized Transport Package Standard Export Wooden Case Specification 3140*457*390mm+587*560*605mm Trademark CNCAM Origin China HS Code 8456401000 Production Capacity 500 Sets/Month

Product Description

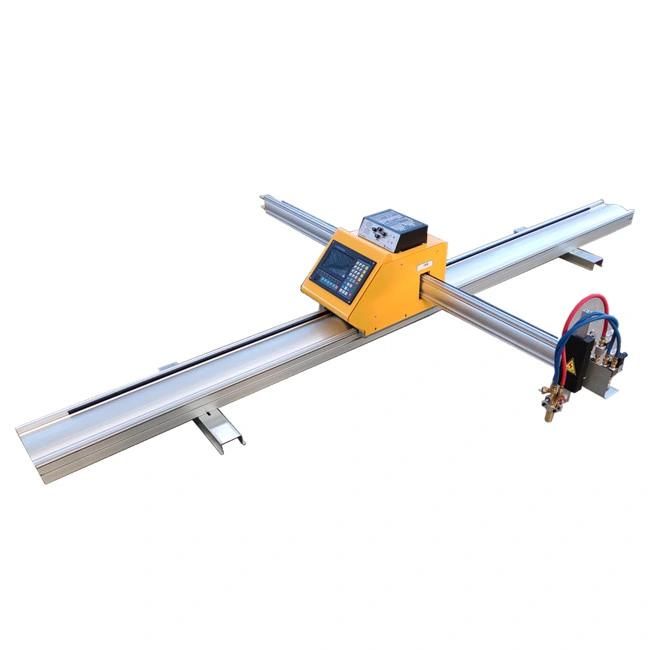

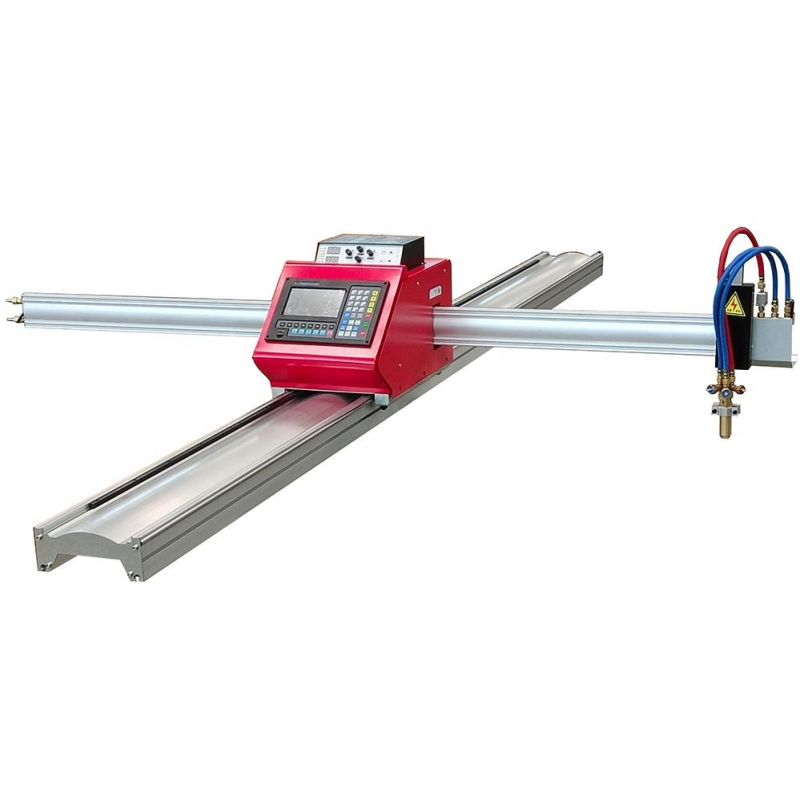

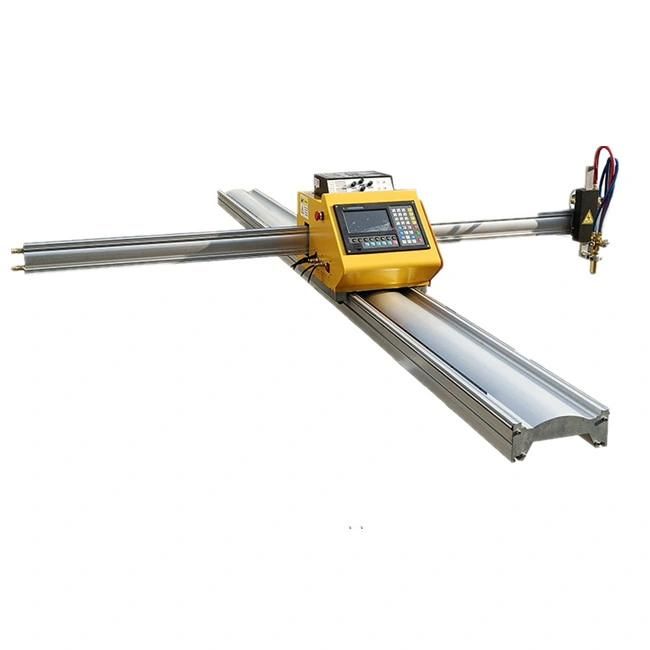

Portable CNC Plasma & Flame Cutting Machine

CUT 3-3 is a newly developed CNC portable plasma&flame cutting machine, has features of durable, economical and
flexible to use. Compared with traditional portable cutting machines, this machine has wider working area, can cut thicker
metal plates, applicable to different working places, reduces covering area and lowers down processing cost.

The machine is made of steel alloy and aluminium, with lower weight and high intensity. Notched roughness is only 25,
under normal circumstances the cutting surface does not require any further processing. This machine is widely used in
machine tool manufacturing, shipbuilding, pressure vessels, construction machinery, mining machinery, electric power, bridge
construction, steel structure and other industries, etc.



Technical Parameters

Cutting mode	Plasma cutting and flame cutting
Materials to cut	Mild steel, carbon steel, stainless steel, aluminium, etc
Cutting range	1500mm×2500mm, 1500mm×3000mm, etc
Maximum cutting width	1,500mm
Maximum cutting length	6,000mm
Flame cutting thickness	1-300mm
Plasma cutting thickness	≤30mm depending on plasma power source
Vertical stroke of cutting torch	≤120mm
Cutting speed	0-5000mm/min

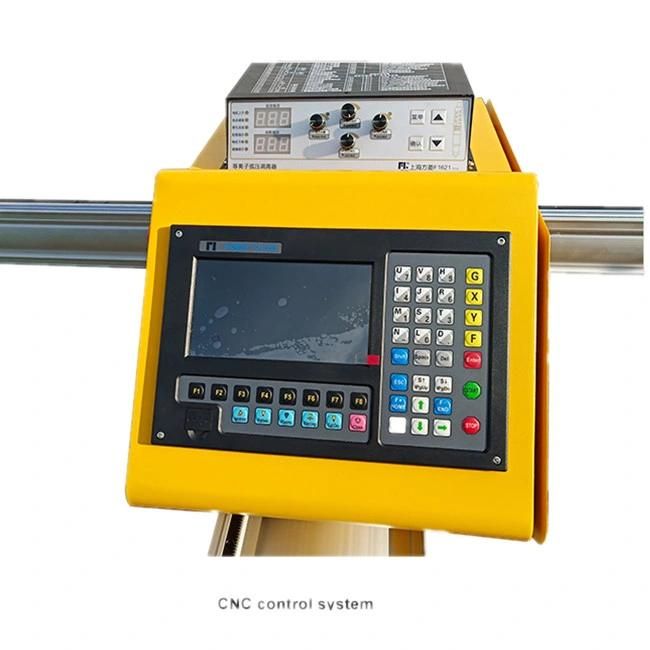

Control system	F2100B
Driving system	Stepper motor
Working language	English, French, Spanish, Portugues, Russian, etc
Software	FastCam, StarCam, etc

Functions and features:
(1) 130mm thick tailored track acquires high-intensity, high-speed and high-precision features, doesn't deform easily,
making the machine operate smoothly and quietly.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) With functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plates.
(4) Enable conversion of CAD files into program files which can be transmitted to the main machine by USB to cut
plate into any shapes.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, Russian and Portuguese are ready to use.
(7) Can automatically memorize and restore cutting information when power is off.

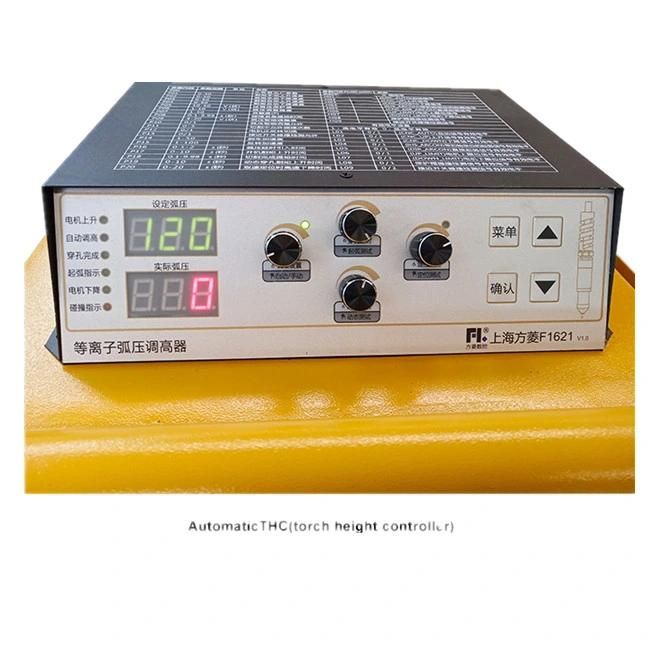

(8) Plasma THC (torch height control) device function: automatically adjusts the height of cutting torches according to the
feedback of plate height changes, THC can keep good effect of cutting meanwhile protect the torch form damage and prolong
life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatible with domestic and foreign-brand plasma power sources.

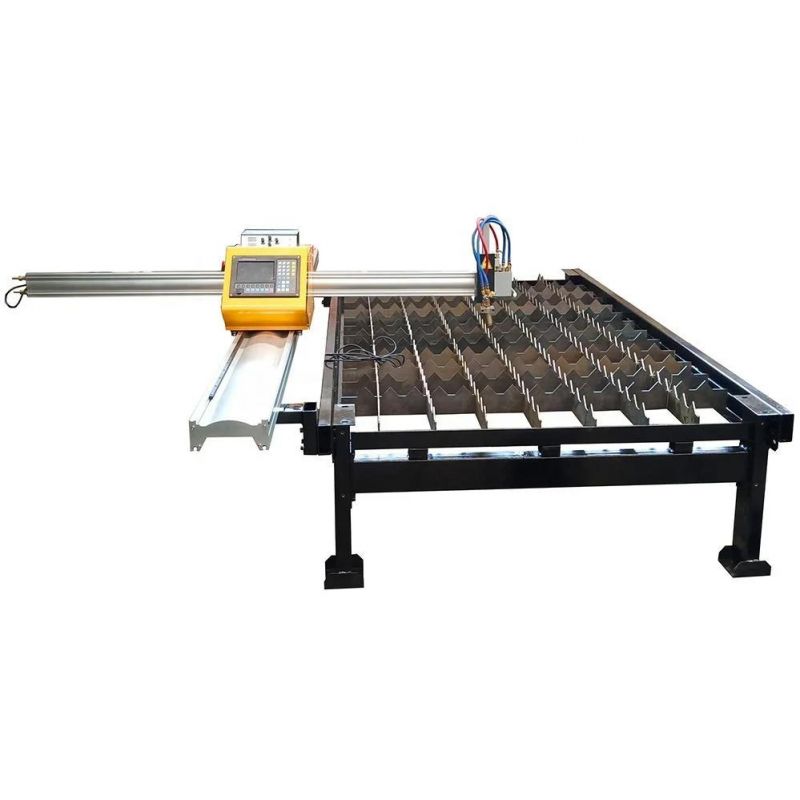

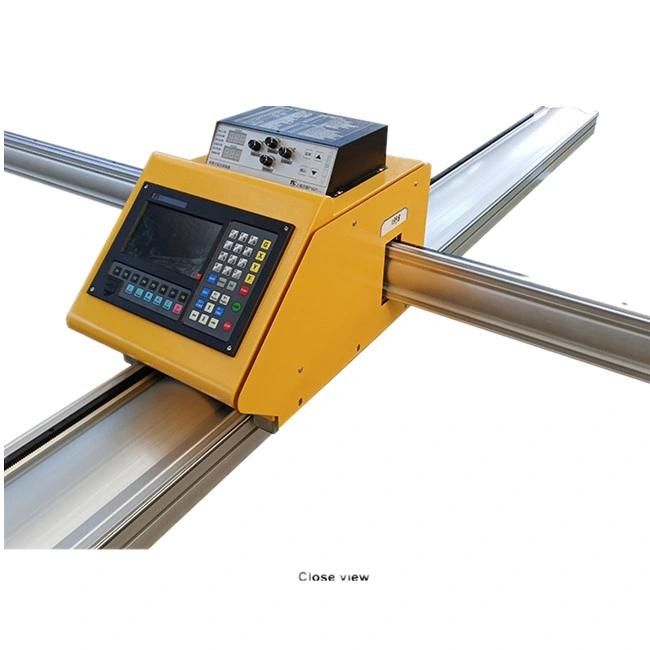

Machine Details

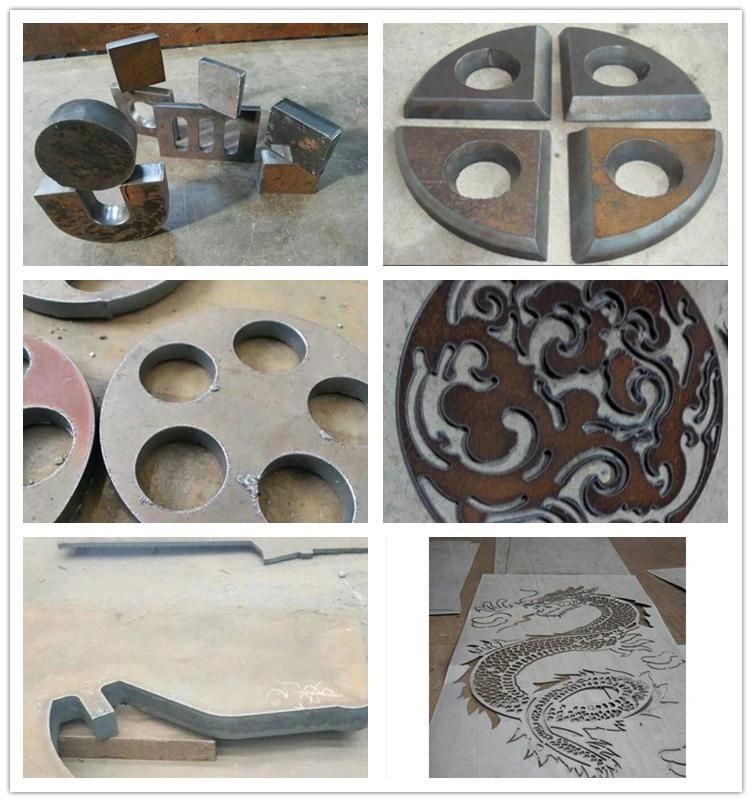

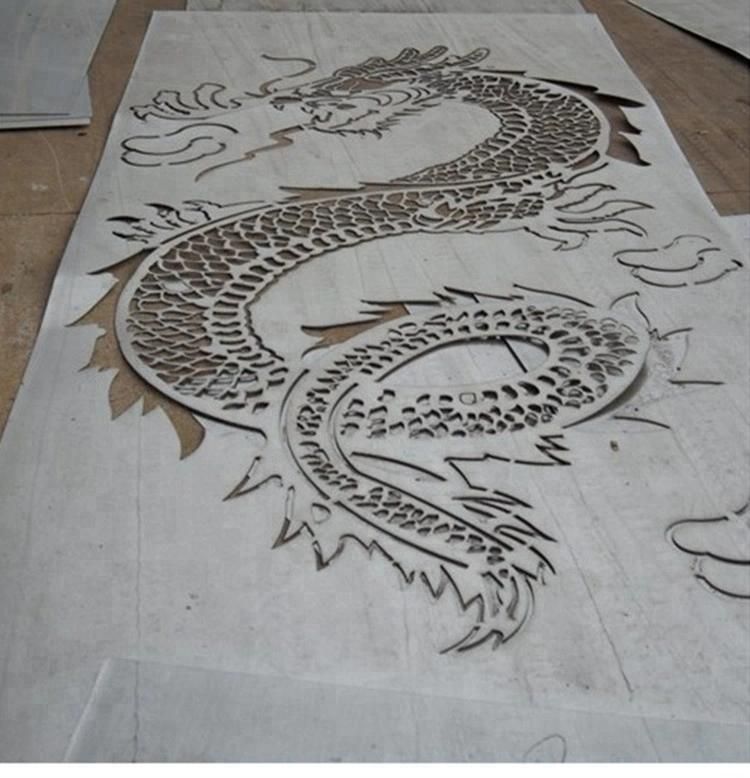

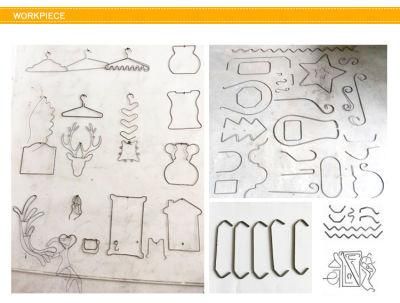

Cutting Samples

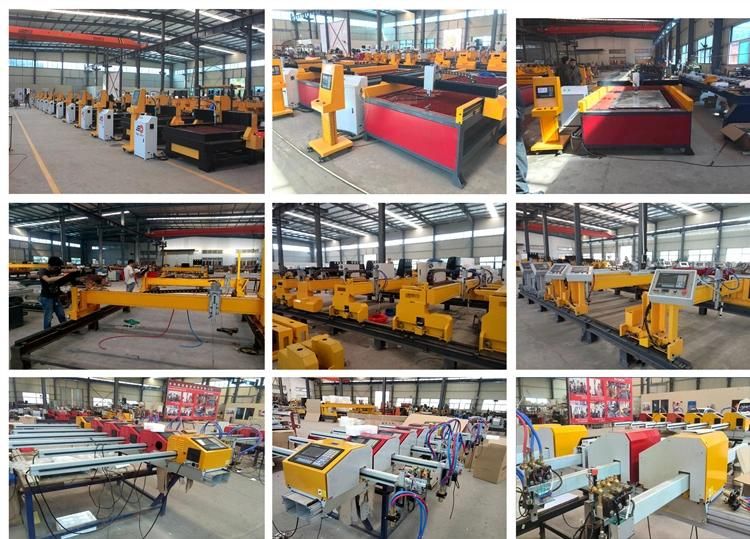

Full Production Line

Our services

We have 6 engineers to provide complete services to customers including:

1. Warranty: 1 year
2. Machine operation technical support
3. 24 hours Troubling shooting
4.Video technical support
5. Remote-control service on computer
6. Supplying spare parts

Exhibition and Customers


Welcome to send us message/inquiry for more information and quotation, thank you!
