2 Axis CNC Coiling Compression Spring Torsion Spring Wire Making Machine

Guangdong Yonglian CNC Equipment Technology Co., Ltd.
  • Control Type：CNC
  • Axis Count：2 Axis
  • Warranty：1 Year
  • Transport Package：Wooden Case
  • Specification：350kg
  • Trademark：YLSK

Base Info

  • Model NO.：YLSK-212
  • Origin：Dongguan
  • HS Code：8463300000
  • Production Capacity：600 Sets,Year

Description

Basic Info.

Model NO. YLSK-212 Origin Dongguan HS Code 8463300000 Production Capacity 600 Sets/Year

Product Description

PRODUCT DESCRIPTION

YLSK-212 Two axis compression spring machine, One is wire feed axis and other is Cam axis. The wire feed axis controls wire feed and the cam axis drives the cam to form the spring by controlling outside diameter, space & cutting blade.
The machine is equipped with torsion device, Suitable for producing a variety of right or left handed torsion springs & special shaped springs. Taiwan computer control and Japanese imported servo motor,with high-speed,high-precision and fast facilitate. Length Detector Device helps to detect & separate accurate quality products. Easy to operate, High Precision & Fast production speed.

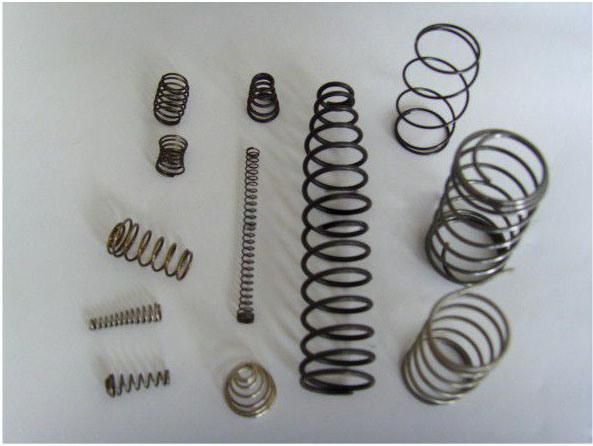

 Compression springs, Oil seal rings, Torsion spring, Conical spring, Tension spring and all kinds of special purpose springs are easy to manufacture.

TECHNICAL PARAMETER

ModelYLSK-212
Wire Diameter (mm)Ø0.15~Ø1.2
 Axis Count2 Axis
 Outside Diameter (mm)Max Ø32
Max feeding LengthUnlimited
Max feeding Speed0-110 m/min
Instruction value of wire feed±0.01~±9999.99 mm
Instruction value of cam±0.10~±359.90
Servo motor of wire feed (kw)1.0
Servo motor of cam (kw)1.0
Machine size (LXWXH)  850×900×1400 mm
Weight (kg)450
Power3-Phase 380V.AC.50HZ

2 Axis CNC Coiling Compression Spring Torsion Spring Wire Making Machine


2 Axis CNC Coiling Compression Spring Torsion Spring Wire Making Machine
2 Axis CNC Coiling Compression Spring Torsion Spring Wire Making Machine
2 Axis CNC Coiling Compression Spring Torsion Spring Wire Making Machine





FAQ
1. Q: Can you customize the machine for the customer?
  A: Yes,we can.We also provide OEM for customer,if you need customize service,please contact us.

2. Q: What is the Min.Order?
  A:  One set.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% after the shipment.We also accept other payment term.

 Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of
      them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.
