Corrugated Stainless Steel Pipe Tube Hose Making Machine
Comflex Industrial Co., Ltd.- Material：SUS304, 321 and 316L
- Wall Thickness：0.18-0.35mm
- Production Speed：2.5~3.5m,Min
- Strip Thickness：0.18-0.3mm
- Size：Dn8-Dn50
- Tube Od：10.3-55.7mm
Base Info
- Model NO.：DN8-32
- Hose ID：8-50mm
- Hose Od：11.3-56.7mm
- Pitch Distance：2.7-6mm
- Width of Stripe：31.8-173.2mm
- Transport Package：Standard Seaworthy Packing
- Specification：ISO9001
- Trademark：HLT
- Origin：Jiangsu Wuxi
- HS Code：84819010
- Production Capacity：5000PCS,Year
Description
Hose Making MachineMachine Type No. HLT-M-50 Technical Data Application of the hose: natural and water hose
Size range: DN8 up to DN50
Wall thickness: 0.15-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions: 8000*1100*1700 Packing details Polywood box and standard pallet MOQ 1 set Warranty 1 year Payment terms T/T, L/C, D/P, Western union
Machine showing

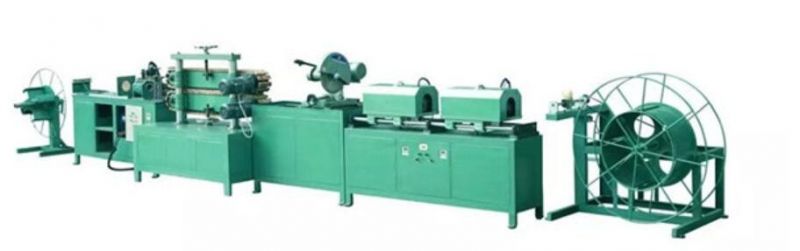

Producing line
The whole machine line includes decoiler/winder, Panasonic welding machine, cutter, haul off unit, shaping unit, corrugating forming heads, take up.
Photos of different parts of the machine

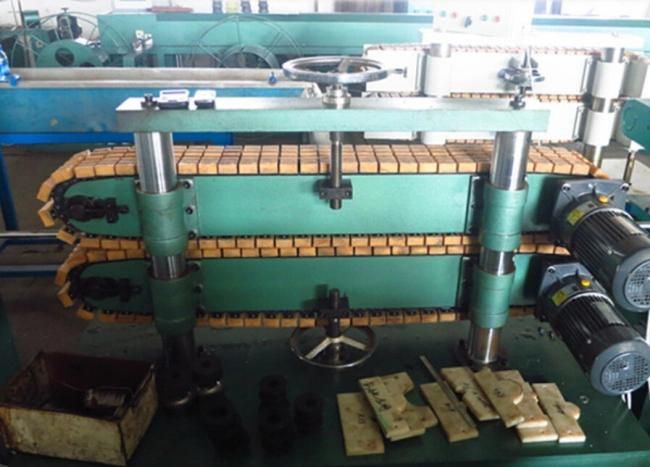

Haul off unit/caterpillar

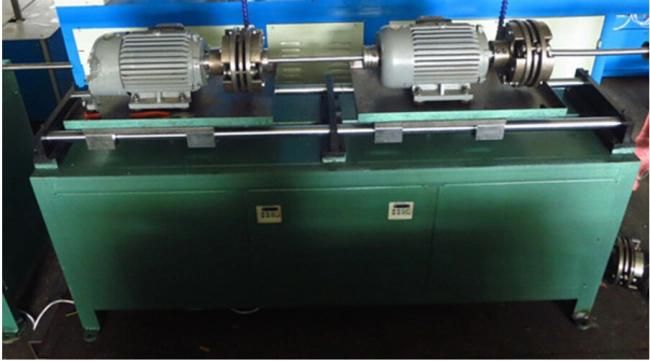

Corrugated shaping/forming heads
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
Size range: DN8 up to DN50
Wall thickness: 0.15-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Power:4-7KW
Outer dimensions: 8000*1100*1700
| No. | Size | Tube OD (mm) | Wall thickness (mm) | Hose ID (mm) | Hose OD (mm) | Pitch distance (mm) | Width of the strip (mm) |
| 1 | DN 8 | 10.3 | 0.18 | 8 | 11.3 | 2.7 | 31.8 |
| 2 | DN10 | 12.3 | 0.18 | 10 | 13.5 | 2.9 | 38.1 |
| 2 | DN 12 | 15 | 0.18 | 12.3 | 16.3 | 3.2 | 46.6 |
| 3 | DN 16 | 20 | 0.2 | 16.2 | 21.3 | 4.5 | 62.2 |
| 4 | DN 20 | 23.5 | 0.25 | 20 | 25 | 4.5 | 73.0 |
| 5 | DN 25 | 30 | 0.3 | 25 | 31.5 | 4.5 | 93.3 |
| 6 | DN 32 | 39.5 | 0.3 | 33 | 41 | 4.5 | 123.2 |
| 7 | DN50 | 55.7 | 0.35 | 50 | 56.7 | 6 | 173.2 |
Machine showing
Producing line
The whole machine line includes decoiler/winder, Panasonic welding machine, cutter, haul off unit, shaping unit, corrugating forming heads, take up.
Photos of different parts of the machine
Haul off unit/caterpillar
Corrugated shaping/forming heads
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
