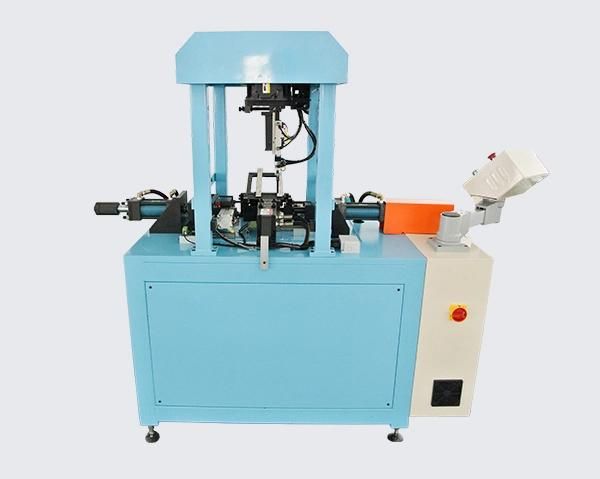

Capillary Copper Tube End Forming Machine, Copper Tube Spinning, Closing, Necking-in Machine
Suzhou Vedette Industrial Equipment Co., Ltd.- Structure：Desktop
- Spinning Strength：General Spinning
- Pressure Supply Type：Hydraulic Pressure
- Spinning Direction：Forward
- Metal Material：Copper
- Riveting Principle：Orbital Models (BM Series)
Base Info
- Model NO.：VDT-CP-003
- Spinning Deformation Condition：Cold Spinning
- Spinning Belt Wheel Type：Rolling V Type Belt Wheel
- Spinning Wheel Number：Double
- Finished Product：Pipe
- Finished Product Shape：Cylinder Shape
- Transport Package：Wooden Box
- Specification：2300mmx1000mmx1500mm
- Trademark：VEDETTE
- Origin：China
- HS Code：8501109101
- Production Capacity：300 Sets One Year
Description
Max processing diameter
Copper pipe
Φ13mm
Copper pipe
Φ20mm
Copper(aluminum)Φ40mm
Max wall thickness
1.8mm
2.0mm
3.0mm
Processing station
1-6
1-6
1-3
Processing efficiency
3-15s/p
3-15s/p
5-20s/p
Electric control mode
PLC
PLC
PLC
Operation
AT/Manual
AT/Manual
AT/Manual
Feeding
Manual
Manual
Manual
Drive
Hydraulic/Servo
Hydraulic/Servo
Hydraulic/Servo
Processing method
Cold Forging
Cold Forging
Cold Forging/Rotary pier
Punch stroke
100mm(adjust)
100mm(adjust)
150mm(adjust)
Max clamping stroke
80mm
80mm
120mm
Max force
2000kg
3000kg
5000kg
Max machining depth error
<±0.2
<±0.2
<±0.2
Max coaxiality error
<0.1mm
<0.1mm
<0.1mm
Power
380V 50hz
380V 50hz
380V 50hz
Hydraulic motor
2.2kw
3.7kw
5.5kw
Hydraulic pressure
5-8Mpa
5-8Mpa
5-8Mpa

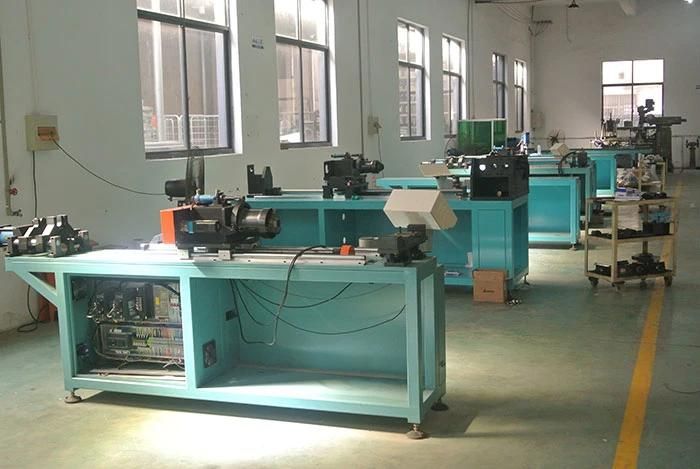

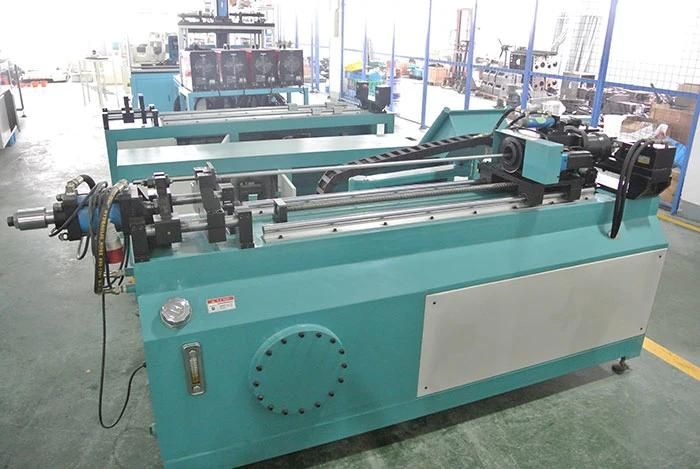

Factroy Tours:

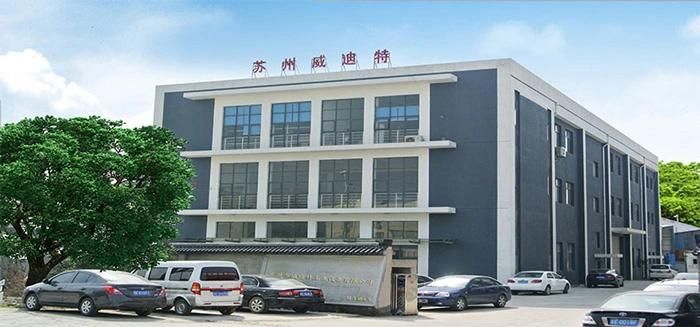

Factroy Introduction:
Established in 2011, Suzhou VEDETTE Industrial Equipment Co., Ltd. is a professional factory producing metal pipe forming machine , include CNC copper and stainless steell pipe punching machine, pipe spinning machine, punching flanging machine, pipe end processing machine, non¬chip open feeder, bending machine , as well as copper and stainless steel fitting.
Now VEDETTE owns factory area about 2000 square meters and 30 workers, includes professional staffs specializing in mechanical and electrical integration control, computer software, three-dimensional structure design and digit control technology.t has strong technical ability in design, development, production, sales. Besides, it also has good production capacity and prefect after-sales service system.
"VEDETTE" 's main products includes metal pipe punching machines, pipe spinning machines, pipe end forming machines,CNC automatic pipe cutting machines , pipe bending machines etc. Since it established , it has cooperated with many domestic customers such as CRRC ,DAIKIN, DUNAN,SANHUA,GREE, LUVATA,SUNRAIN and expand overseas market in South African, Germany,Indonesia, Vietnam and Korea.Through many years development,we have improved quality and technology greatly. Also , we have developed a series of different models of product,win high reputation.we can provide different kind of machines according to customer need,provide pre-sale and after-sale service,not only provide good quality product,but also provide technical training to customers. And provide professional technical for maintenance and after-sales service, as well as product software upgrades free of charge.
Innovation and cooperation are the long-term policy of "VEDETTE", Based on idea " quality first, service first , price second",,VEDETTE will create the best products and provide the most satisfactory services,.we sincerely hope to become your faithful friends and partners!
