Fully Automatic Double Wire Feeding Chain Link Fence Making Machine

Hebei Jiake Welding Equipment Co., Ltd.
  • Warranty:1 Year
  • Name:Chain Link Fence Machine

Base Info

  • Model NO.:lw25-80
  • Type:Fully Automatic
  • Mesh Width:Max.4m
  • Max. Weaving Length:20m
  • Mesh Opening:25-80mm
  • Wire Diameter:2-4mm
  • Raw Material:Galvanized Wire, PVC Coated Wire, etc.
  • Servo Motor:5.5 Kw
  • Control System:PLC Automatic Controller
  • Weight:3900kg
  • Transport Package:Plastic Package in The Container
  • Specification:5100*1700*1250mm
  • Trademark:JIAKE
  • Origin:Hebei, China
  • Production Capacity:30sets,Month
  • Package size per unit product:670.00cm * 143.00cm * 180.00cm
  • Gross weight per unit product:3900.000kg

Description

Basic Info.

Model NO. lw25-80 Type Fully Automatic Mesh Width Max.4m Max. Weaving Length 20m Mesh Opening 25-80mm Wire Diameter 2-4mm Raw Material Galvanized Wire, PVC Coated Wire, etc. Servo Motor 5.5 Kw Control System PLC Automatic Controller Weight 3900kg Transport Package Plastic Package in The Container Specification 5100*1700*1250mm Trademark JIAKE Origin Hebei, China Production Capacity 30sets/Month

Packaging & Delivery

Package size per unit product 670.00cm * 143.00cm * 180.00cm Gross weight per unit product 3900.000kg

Product Description

Fully automatic Double wire feeding chain link fence making machine(LW25-80)

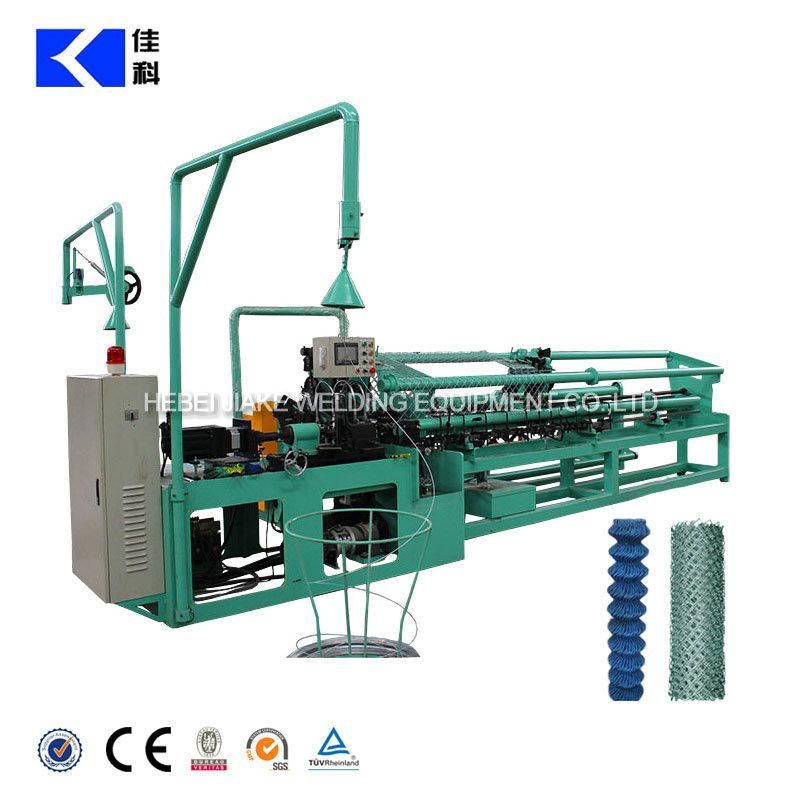

Fully Automatic Double Wire Feeding Chain Link Fence Making Machine
  1. Description:
    Through dies, two rods of wire become diamond-shape.
  2. And then diamond-shape wire connects with wire inside the winding shaft.
  3. Meanwhile, the sides of mesh can be twisted or knuckled.
  4. Mesh width and mesh opening can be customized.
  5. Application: extensively used as fences for playground and gardens, highway, railway, airport, port, etc.
Advantage:
1. Taiwan Delta Servo motor 5.5kw + Planetary Reducer (rate 1:3);
2. Original Japan Mitsubishi PLC + Touch screen;
3. Alarm device + Emergency button;
4. Single mold, double spiral;
5. 12-procedure processed Straightening wheels;
6. Automatic mesh roller;

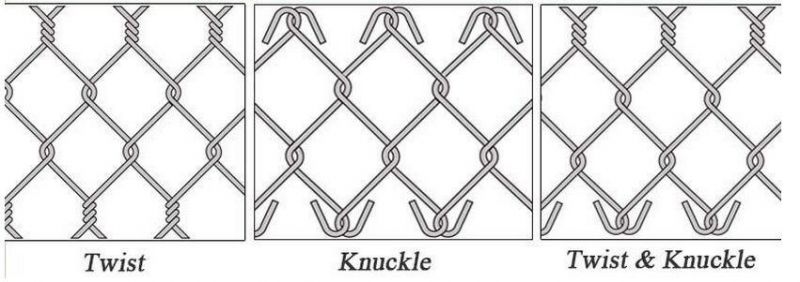

7. Three ways of sides:
both Twist              both Knuckle             one Twist & one Knuckle
Fully Automatic Double Wire Feeding Chain Link Fence Making Machine


8. Sch***der Low-Voltage electronics;
9. Customized voltage: 220V, 380V, 440V, etc.

Technical Parameter:
Max. weaving width4m
Max. weaving length20m
Mesh opening25-80mm
Wire diameter2-4mm
Raw materialGalvanized wire, PVC Coated wire, etc.
Servo Motor5.5 KW
Motor for side dealing1.5 KW
Motor for parting tool1.5 KW
Motor for winding0.75 KW
Output120 to 180 square meters/hour.
Electric system1.Japan Mitsubishi PLC origin
2.Servo motor
3.French Sch***der (Low-voltage electrical system)
4.Electric & Machinery from Taiwan Teco Electronic
Control system PLC automatic controller
Weight3900kg
DimensionMain machine: 6700*1430*1800mm
              5100*1700*1250mm
ShippingIf 4M width machine, one 40' GP container is ok.

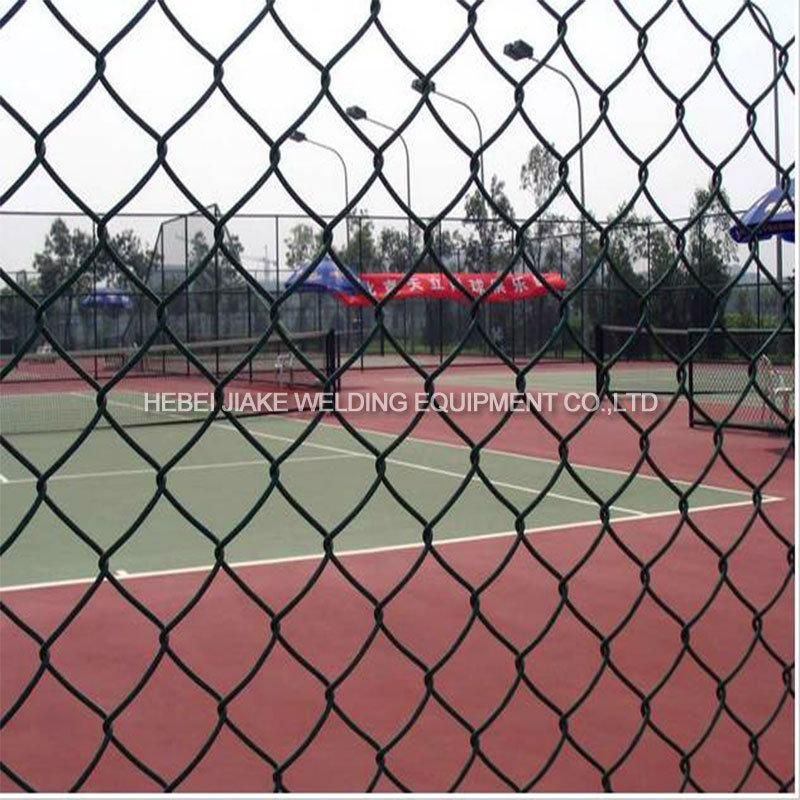

Finished Products:
Fully Automatic Double Wire Feeding Chain Link Fence Making Machine

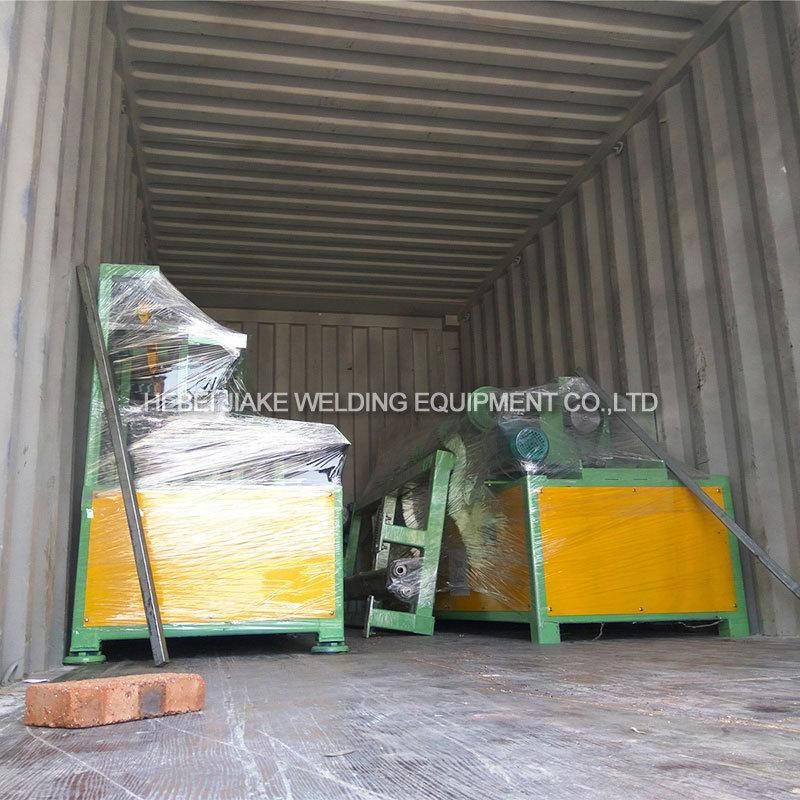

Loading Picture:
Fully Automatic Double Wire Feeding Chain Link Fence Making Machine

Our Factory:

We are the professional manufacturer of different kinds of wire mesh welding machine and wire mesh weaving machine for many years, such as chain link fence machine, barbed wire machine, hexagonal wire netting machine, welded wire mesh machine, fence mesh machine…etc.

Our machine with high quality and excellent after-sales service which enjoyed good review from our clients all over the world.
Fully Automatic Double Wire Feeding Chain Link Fence Making Machine

Contact:
If you have any needs about our machine, welcome to contact me, I will reply ASAP.
