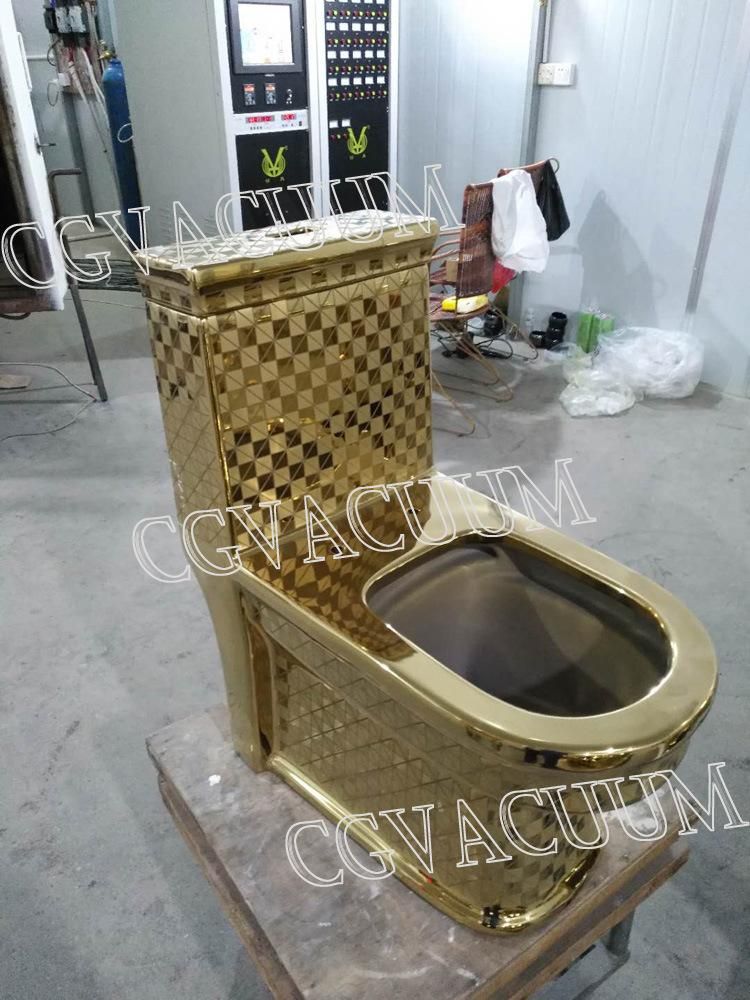

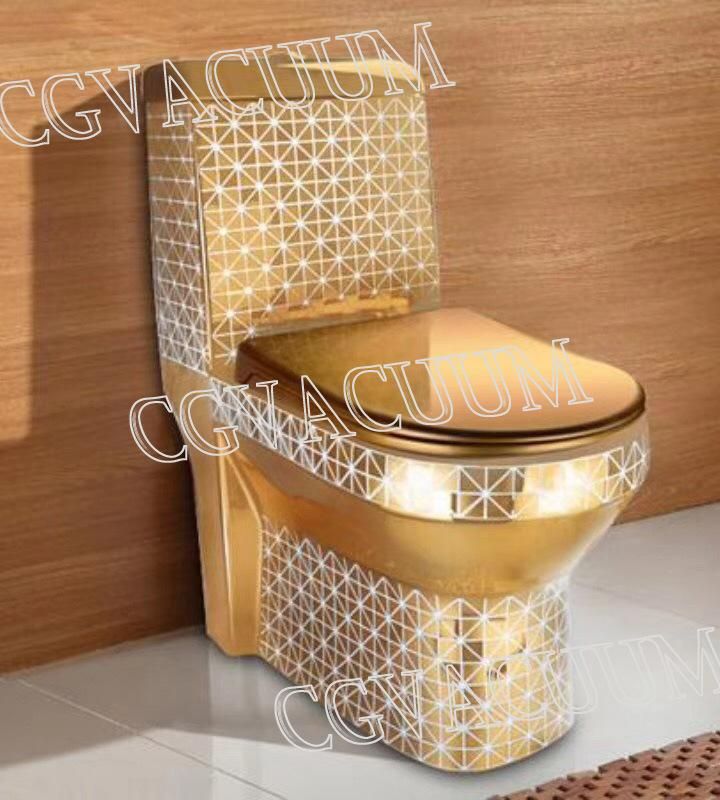

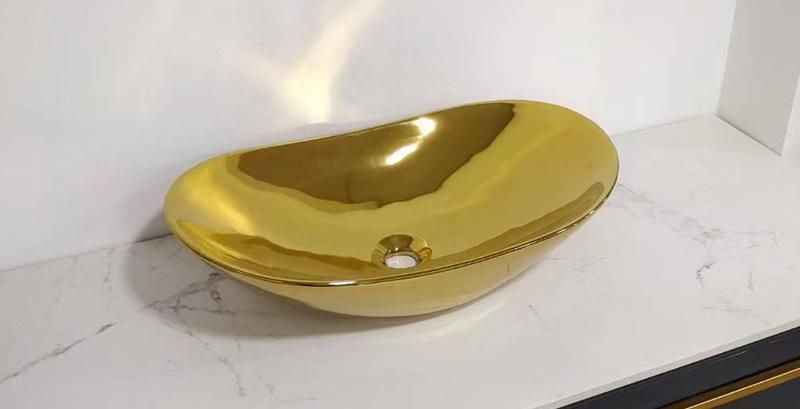

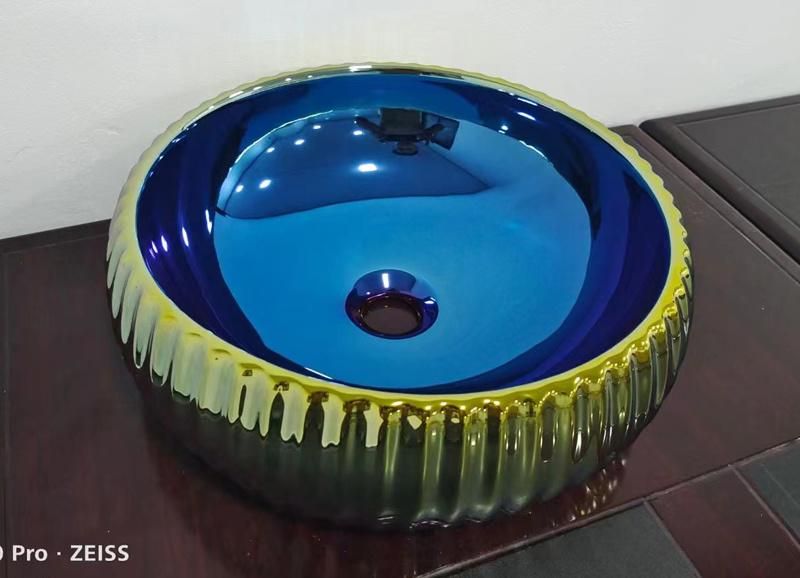

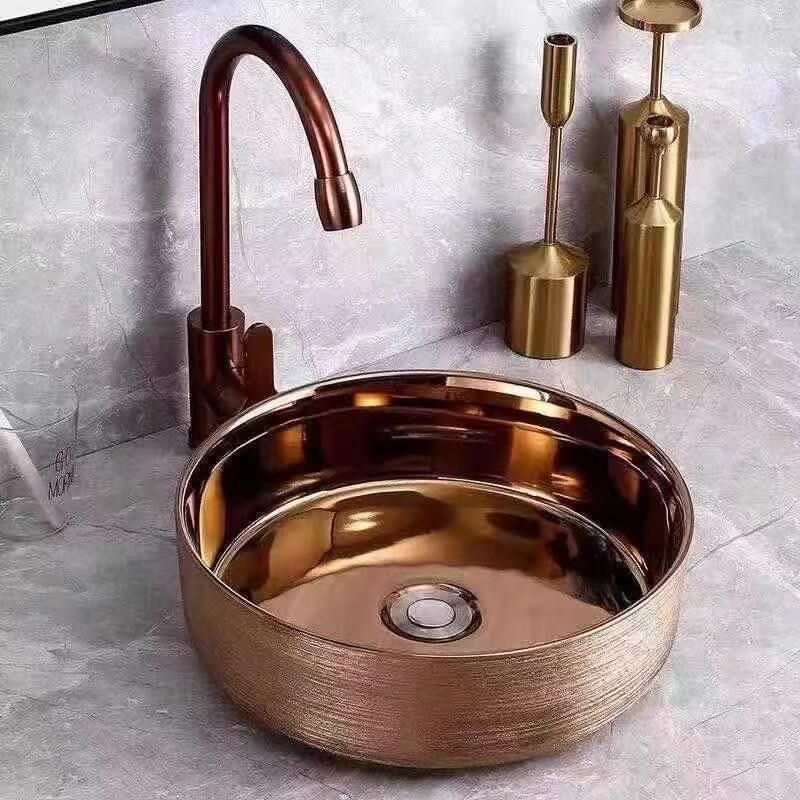

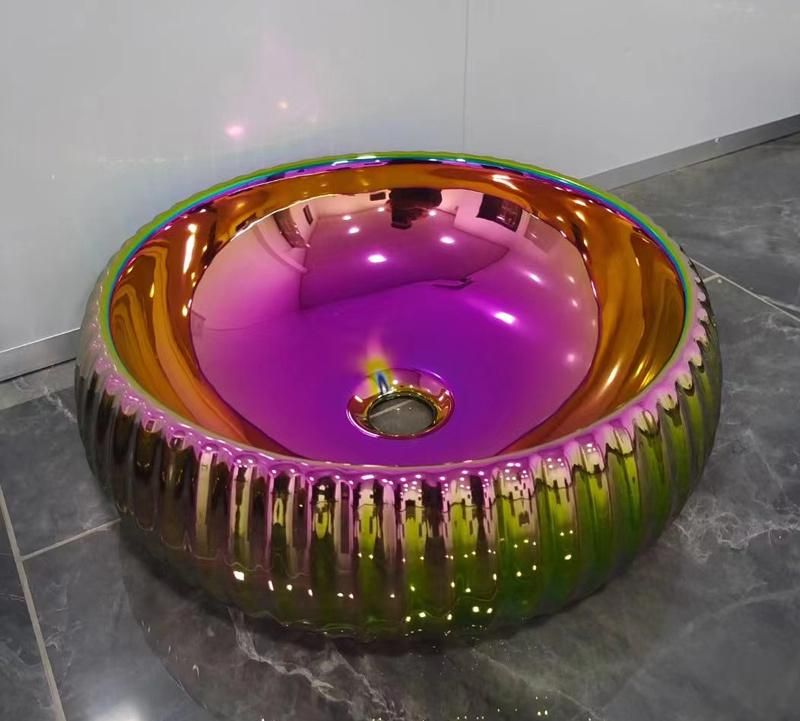

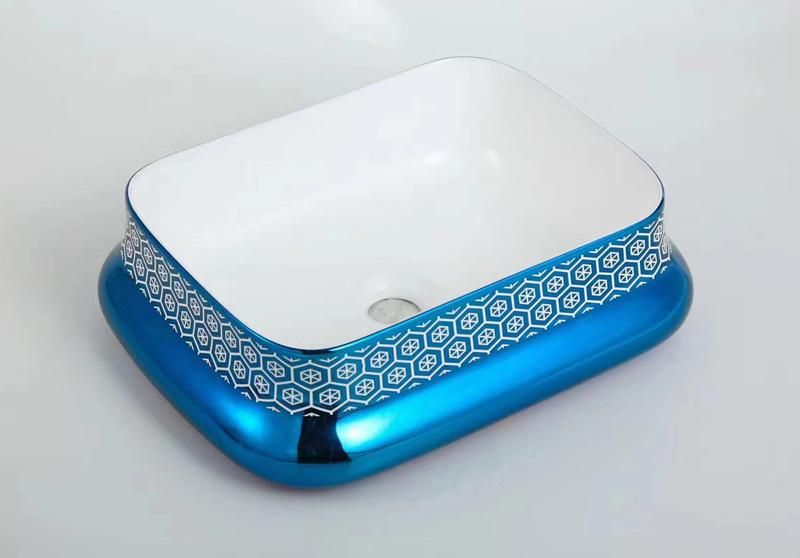

Ceramic Sanitary Washbasin Multi Arc Ion PVD vacuum Coating Machine
Guangdong Chao'an Fengtang Chuanggao Vacuum Facility Craftwork Manufactory- After-sales Service：on Line Video Supporting
- Warranty：1 Year
- Type：Coating Production Line
- Coating：Vacuum Coating
- Substrate：Ceramic
- Certification：ISO
Base Info
- Condition：New
- Transport Package：Bulk Packing
- Specification：DZ-1800
- Trademark：Chuangzhen
- Origin：China
- Production Capacity：100 Sets Per Year
Description
Model
DZ-1800
Vacuum chamber size
1800*1800
Arc target amount
24pcs
Total power
120KW
Power supply type
Arc power source
Chamber structure
Vertical
Chamber material
304 Stainless steel
Ultimate vacuum
8.0x10-4Pa
Pump-down time
2.0x10-2Pa≤7min
Vacuum system
Diffusion pump + Roots pump + Mechanical pump + holding pump (can be allocated by customer's requests)
Workpiece system
Rotation of the planet forms, frequency regulation (adjusting rotation speed)
Water-cooling system
Water circulation cooling system, and water tower or industrial chiller or deep-cooling system (supply by customer)
Control method
Manual/automatic all-in-one electric control cabinet
Alarming and protection
Alarming for short of water, overcurrent, overvoltage and circuit break, etc of pump and target, and carry out protections and electrical interlocking functions
Other technical parameters
Water pressure 0.4-0.6Mpa, water temperature≤30°C
Remarks
Configuration of coating equipment can be designed according to the requirement of the coated products
Company Information

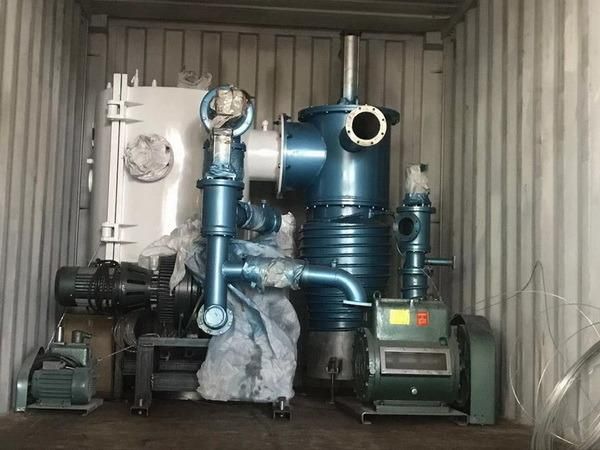

Packaging & ShippingPackage: wrapping with simple plastic film. please note no wooden box.
