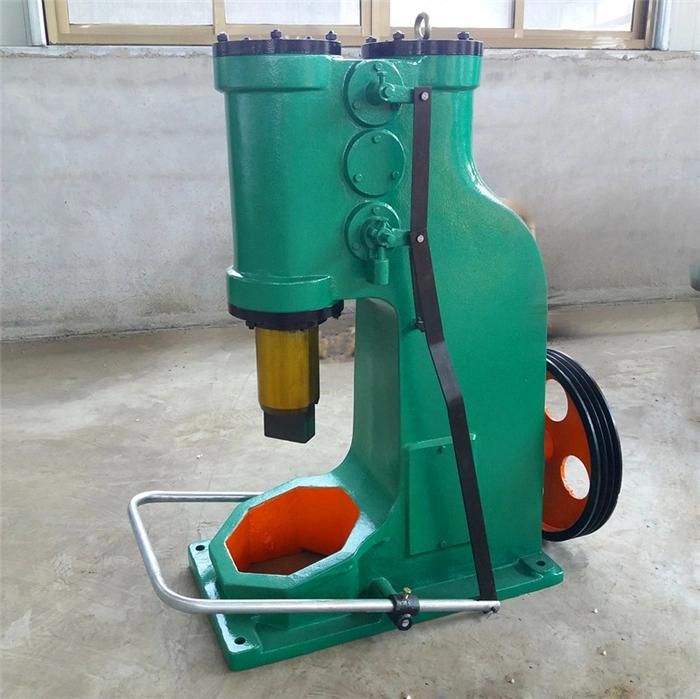

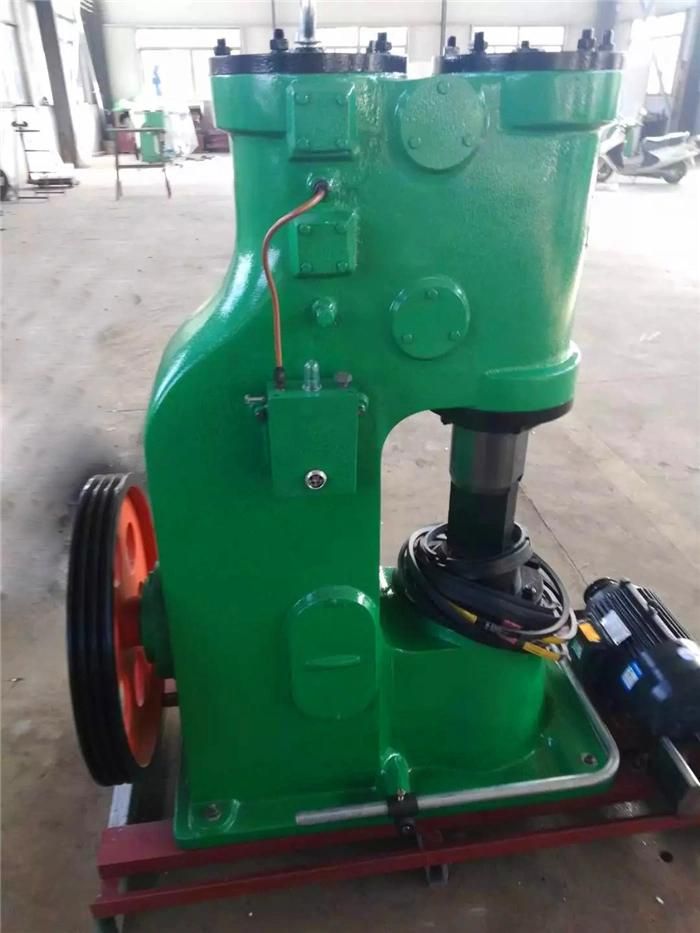

Low Price Blacksmith Forging Hammer C41-25kg Pneumatic Forging Hammer
Henan Wadley CNC Machinery Co., Ltd.- After-sales Service：Available
- Type：Forging Operation
- Forging Forming Method：Free Forging
- Power Source：Pneumatic
- Feature：Automation
- Certification：CE
Base Info
- Model NO.：C41-25kg
- Warranty：12 Months
- Customized：Non-Customized
- Advantage：Use Widely
- Condition：New
- Max.Hit Energy：1
- Height of Working Area：300mm
- Hit Number：210
- Transport Package：Plywood Case
- Specification：1560*800*1960mm
- Trademark：wdl
- Origin：China
- HS Code：8458110090
- Production Capacity：100sets,Month
Description
Parameter / project / model
Units
C41-40kg
C41-25kg
C41-20kg
C41-16kg
Blow energy
K j
0.53
0.27
0.22
0.18
Height of working area
mm
245
240
200
180
Number of blows
min-1
245
250
255
258
Anvil block size
mm
120x50
100x50
90x50
70x40
Malleable square steel length
mm
52x52
40x40
30x30
20x20
Malleable circular steel length
mm
¢68
¢45
¢35
¢22
Match use of power
K w
4
Single-phase 3/220V,
Three-phase 2.2/380V
Single-phase 2.2/220, Three-phase 2.2/380
Single-phase 1.5/220, Three-phase 1.5/380
Motor speed
r. p. m
1440
1440
1440
1440
3.Product feature
a. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
b. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
c. Simple mechanism ,Is not easy to damage

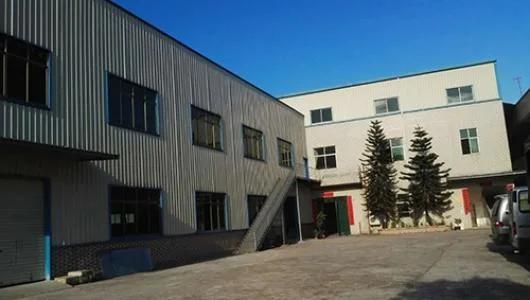

4.Company information
Henan Wadley Import & Export Trading Co., Ltd. Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplying our customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
5.Packing & Shipping
6.FAQ
a:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
b: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
c. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
d: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
e: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
