• Model NO.：QC11Y-6X2500
• Machine：Guillotine Shear
• Transport Package：Fumigated Exporting Standard Wooden Case
• Specification：CE, SGS, ISO9001: 2000
• Trademark：WMT or customized logo
• Origin：Chizhou, Anhui, China
• HS Code：8462399000
• Production Capacity：200 Sets Monthly

Basic Info.

Model NO. QC11Y-6X2500 Machine Guillotine Shear Transport Package Fumigated Exporting Standard Wooden Case Specification CE, SGS, ISO9001: 2000 Trademark WMT or customized logo Origin Chizhou, Anhui, China HS Code 8462399000 Production Capacity 200 Sets Monthly

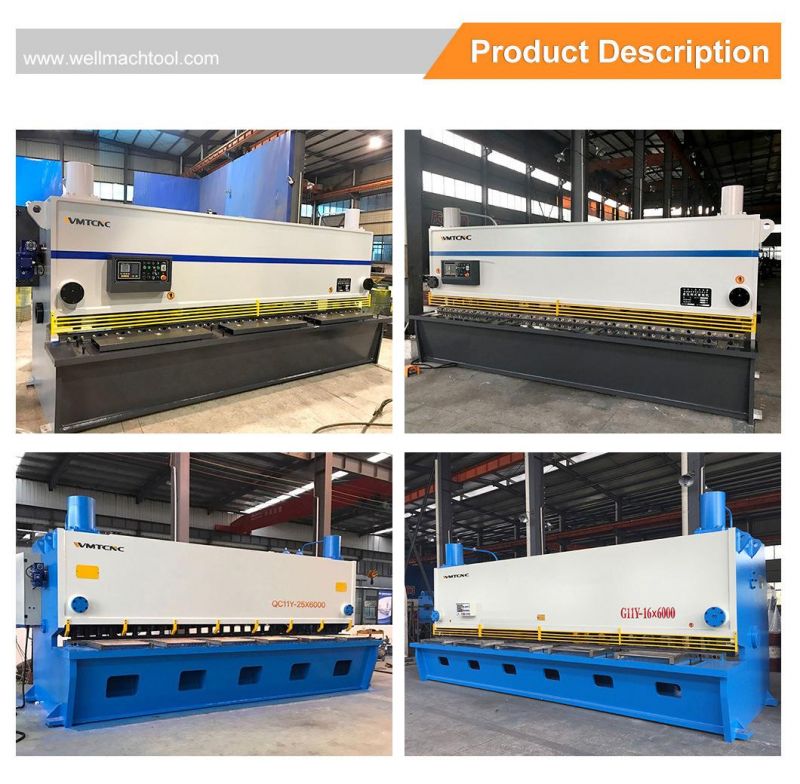

Product Description

Features:
Hydraulic transmission,
tilting knife.
The overall frame welding durable,
use the nitrogen cylinder return smooth fast.


Specification:

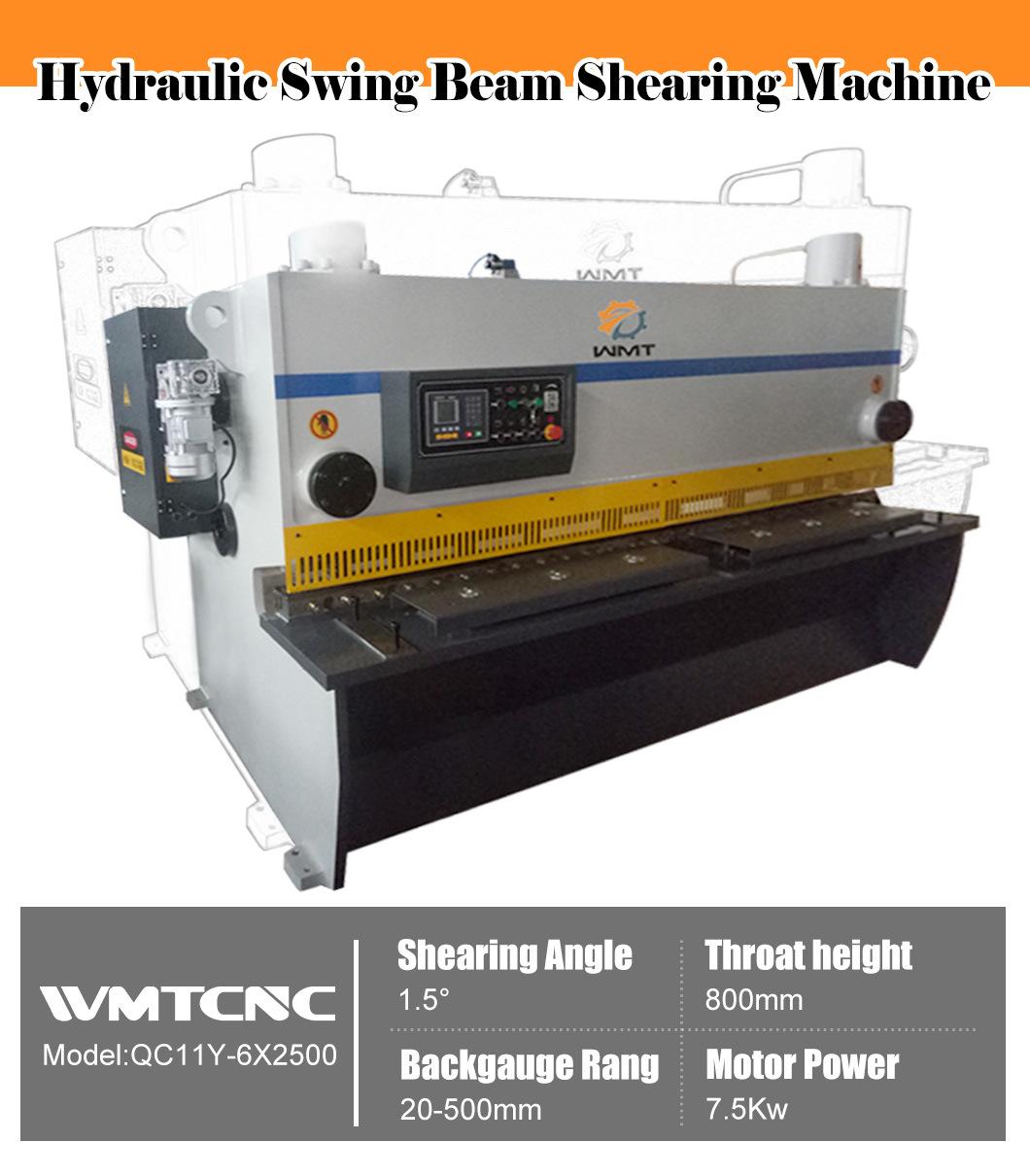

Main specification for QC11Y-6/2500 Hydraulic shearing machine

Specification	Shear thickness	Shear width	Stroke	Backguage range	Shear angle	Throat height	Motor power
	mm	mm	mm	mm	degree	mm	kw
QC11Y-6/2500	6	2500	16~35	20~500	1.5	800	7.5
QC11Y-6/3200	6	3200	14~35	20-500	1.5	800	7.5
QC11Y-6/4000	6	4000	10~30	20-500	1.5	800	7.5
QC11Y-6/5000	6	5000	10~30	20~600	1.5	900	11
QC11Y-6/6000	6	6000	8~25	20~600	1.5	1000	11
QC11Y-8/2500	8	2500	14~30	20~600	2	800	11
QC11Y-8/3200	8	3200	12~30	20~600	2	850	11
QC11Y-8/4000	8	4000	10~25	20~600	2	900	11
QC11Y-8/5000	8	5000	10~25	20~600	2	1000	15
QC11Y-8/6000	8	6000	8~20	20~600	2	1050	15
QC11Y-12/2500	12	2500	12~25	20~600	2	840	15
QC11Y-12/3200	12	3200	12~25	20~600	2	900	15
QC11Y-12/4000	12	4000	8~20	20~600	2	940	15
QC11Y-12/5000	12	5000	8~20	20~600	2	1000	22
QC11Y-12/6000	12	6000	6~20	20~600	2	1060	30
QC11Y-16/2500	16	2500	12~20	20~600	1.5	840	22
QC11Y-16/3200	16	3200	12~20	20~600	1.5	900	22
QC11Y-16/4000	16	4000	8~15	20~600	1.5	940	22
QC11Y-16/5000	16	5000	8~15	20~800	1.5	1000	30
QC11Y-16/6000	16	6000	6~15	20~800	1.5	1100	37
