• Model NO.：CNCDG-5000x20000
• Specification：CNCDG-5000x20000
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50 Units,Month

Basic Info.

Model NO. CNCDG-5000x20000 Specification CNCDG-5000x20000 Trademark HAVEN Origin China HS Code 8462 Production Capacity 50 Units/Month

Product Description

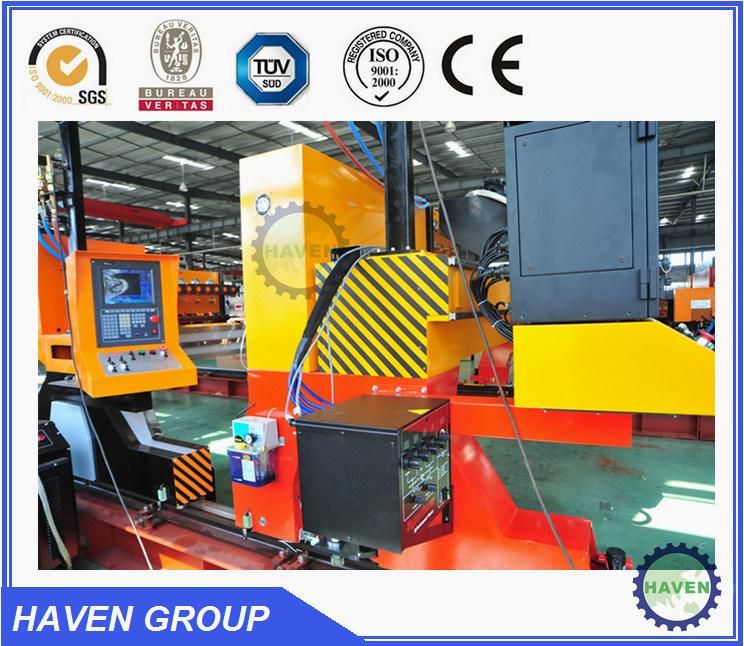

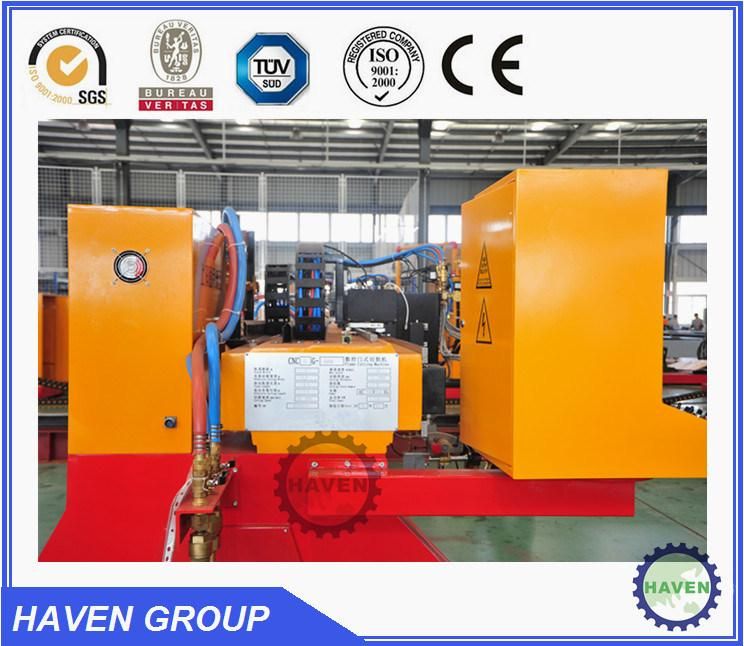

                                                 CNC Granty Plasma and Flame Cutting Machine





Main feature:
The body is of gantry-type structure
High-precision U71Mn accurate grinding rail way
Operating parts are all of imported gears and racks

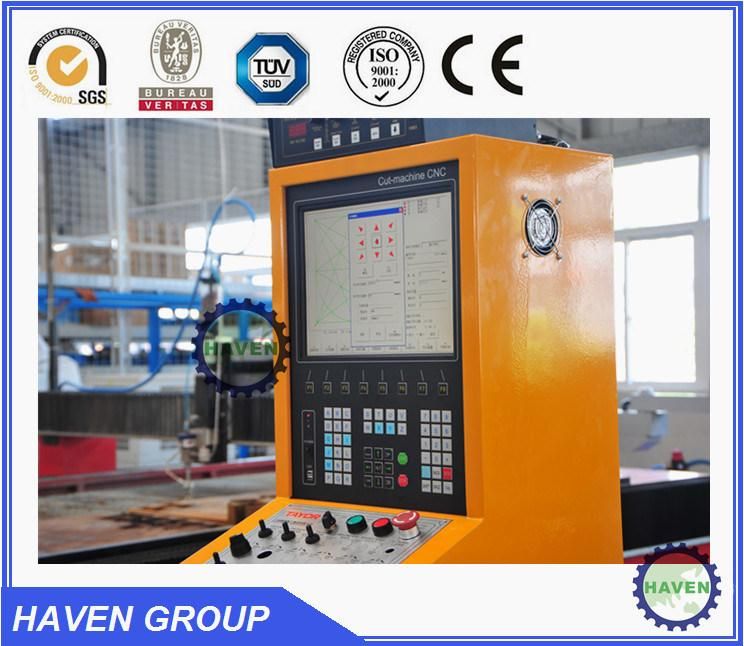

Integrated speed adjusting control
Crossbeam: Box welding structure is adopted. After undergoing thermal treatment, it removes pressure, has such advantages as excellent rigidity, high accuracy, light weight and small inertia. Horizontal driving rack (end rack)
Horizontal guide wheels are installed on both ends; The pressing of the guide rail can be adjusted via the eccentric cam on the bottom of the driving rack so that the whole machine can maintain stable direction
Vertical and Horizontal Driving: They are driven by precise gear and rack. The horizontal guide rail adopts precise cold roll guide plate; While the vertical guide rail is made of precisely processed 50kg road rail. The deceleration device adopts precise gear reducer so as to ensure the accuracy and balance of operation

Main specification:

Max effective cutting width	5000mm
Max effective cutting length	20000mm
Rapid speed	0-9000mm/min
Plasma edge cutting thickness	As per the plasma power
Max plasma piercing cutting thickness	As per the plasma power
Flame cutting thickness (Max.)	150mm
Plasma torch number	As per customer requirement
Flame torch number	As per customer requirement
Automatic higher Precision	±1.0mm
Setting speed error	±5%
Plasma cutting speed	50-5500mm/min
Torch lifting distance	200mm
Straight line positioning precision	±0.2mm/10m
Straight line repeat precision	±0.2mm/10m
Complete machine synthesis precision (the synthesis photo as standard ) length of side(4 sides)1000X1000 live wire speed 500-800mm/min
Length of a side (4 sides)	±0.5mm
Diagonal discrepancy/AD-BC	±0.5mm
Node discrepancy	±0.5mm
Back to the origin of deviation	±0.2mm
The deviation of along and reverse line	±0.2mm
Cutting surface roughness	Rz (um)=70+1.2a Roughness for sight measure: 12.5
Verticality and gradient tolerance	μ(mm)=0.4+0.015a
Running non-straightness	Vertical line±0.2mm/effective length Horizontal line±0.2mm/effective length
Arcing time factor	80%
Lineation precision	0.5mm
Torch angle error	±0.5°
