• Model NO.：FM6060
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Controller：DSP or Tk100 or Syntec Controller
• Motor：Servo Motor
• Spindle Power：3.0kw Water Cooling Spindle
• Transmission Way：Rack Gear
• Working Area：600* 600* 200mm
• Software：Artcam , Mastercam
• Guide Rail：Taiwan Hiwin Square Guide Rail
• Table：Movable T-Slot Table
• Inverter：Fuling , Delta Inverter
• Working Speed：8-15m ,Min
• Transport Package：Plywood
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. FM6060 Warranty 24 Months Customized Customized Condition New Controller DSP or Tk100 or Syntec Controller Motor Servo Motor Spindle Power 3.0kw Water Cooling Spindle Transmission Way Rack Gear Working Area 600* 600* 200mm Software Artcam / Mastercam Guide Rail Taiwan Hiwin Square Guide Rail Table Movable T-Slot Table Inverter Fuling / Delta Inverter Working Speed 8-15m /Min Transport Package Plywood Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 100 Sets/Month

Product Description

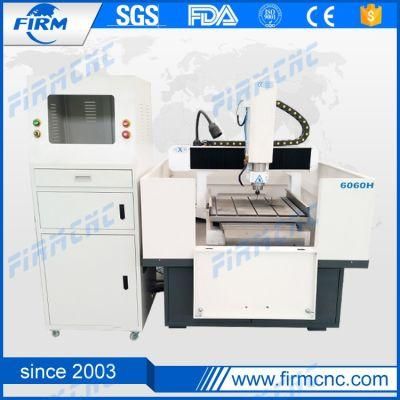

High precision 6060 metal cnc milling machine copper aluminum steel engraving router

Features:
1. Whole machine cast by iron, very strong, table moving, high precision.
2. Imported Hiwin square rails and TBI ball screw for 3 axis.
3. working area 600*600*200mm, Z axis zone can according your need make it.
4. Leadshine hybrid servo motor and driver, Japan servo motor for option.
5. DSP control system, NC Studio and Mach3 for option.
6. Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components.

Technical specification:

Model	FM6060
X,Y,Z Working Area	600*600*200mm
Table Size	750*750mm
X,Y,Z Traveling Accuracy	0.01mm
X,Y,Z repositioning Accuracy	0.01mm
Table Surface	T-slot
Frame	Cast iron
X, Y,Z Structure	Taiwan Hiwin linear & TBI Ball Screw
Max. Rapid Travel Rate	20m/min
Max. Working Speed	15m/min
Spindle Power Motor	3.0Kw constant power water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	YASKAWA Servo motor
Working Voltage	AC380V,50HZ, 3PH/220V, 60HZ,1PH
Command Language	G code
Packing Size	1560*1630*1900mm
Packing Weight	1550KG

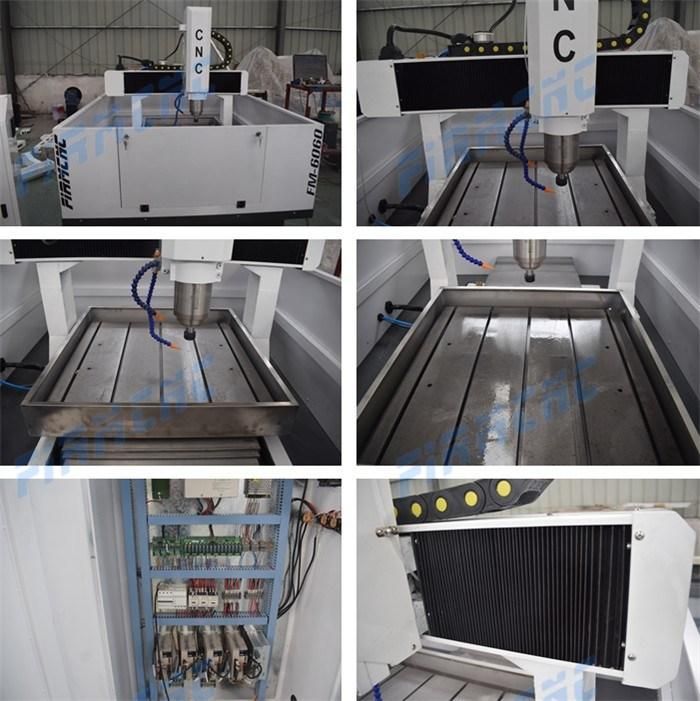

Main Parts pictures:

Applications:
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2.Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3.Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size.

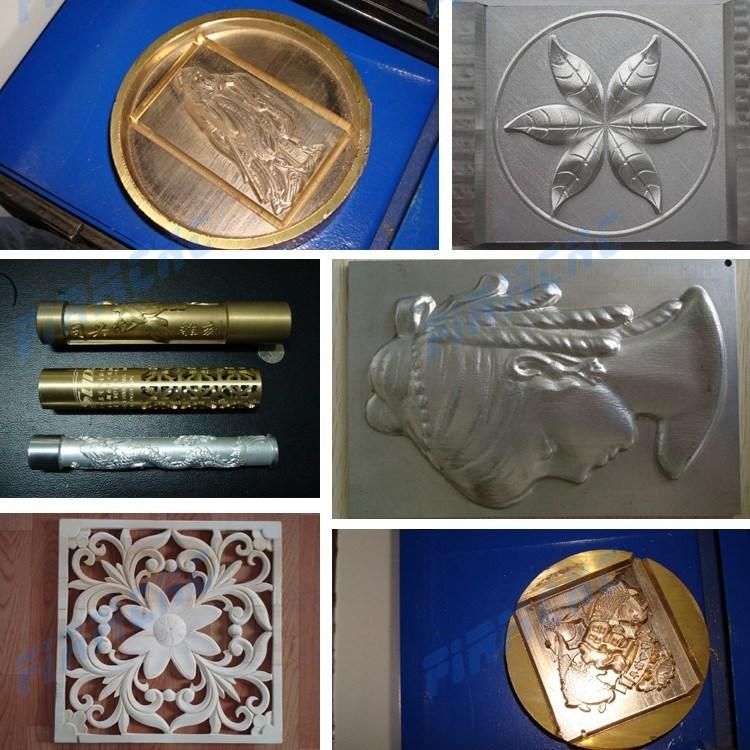

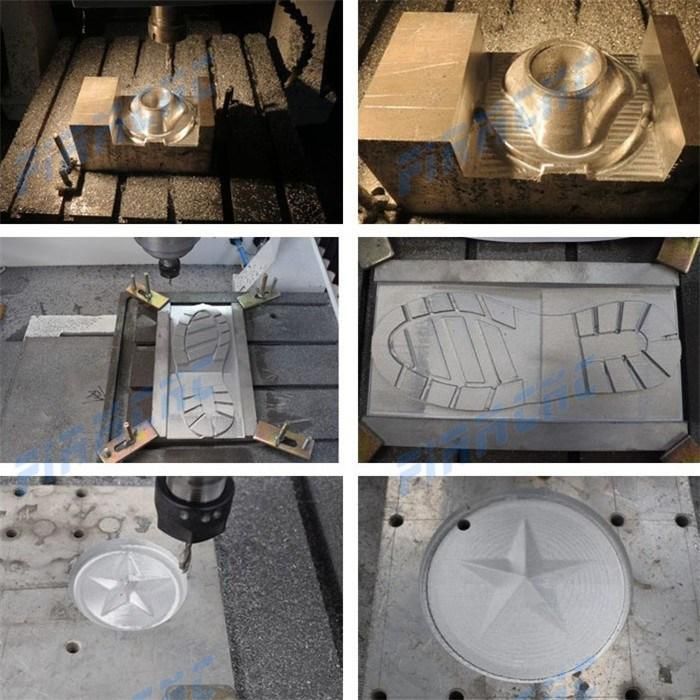

Samples:

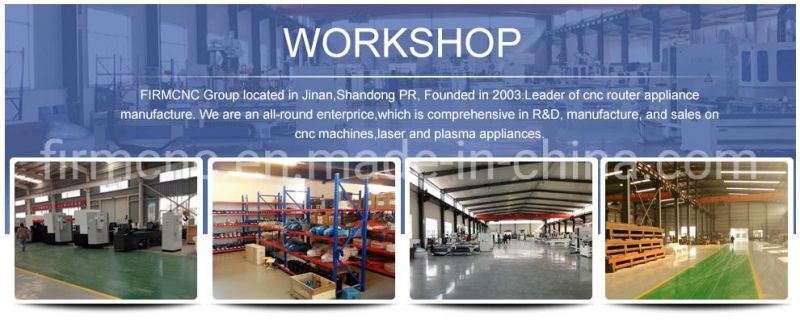

Our company:

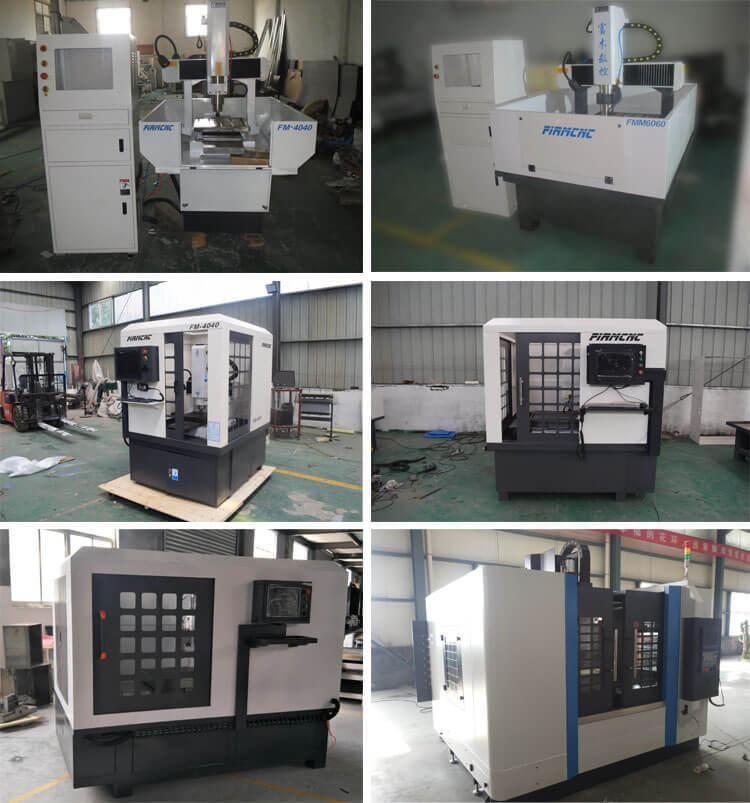

The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance
Woodrouter, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching


Our Servies
1.Two years quality warranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5.Our staff can be sent to your company to install or adjust if necessary.
Certificates:

Paking&shipment:
Save space as much as possible for container loading.
Inside:Water-proof Plastic Film Package With Foam Protection
Outside:Solid Seaworthy Wood Box Package
Below: Steel Tube

FAQ
1.Can we visit your factory?
We do welcome our new and regular friends come here to have a visit. Besides,
Wecan pick you up at the airport or the train station
2.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.
3.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
4.How about your guarantee period?
One year and during the time,if you have  any questions ,we will solve it for free.
5.How to maintenance the CNC Router?
a. First cut the power when maintain the machine. When check work must open the power,need the professional electrician to do this check work.
b. Repair and replacement the parts, please first confirm the specifications of the technical.
c. Regular clean the cooling system.
d. Should always monitor the voltage and electricity grid of the CNC Router.
e. Prevent the dust into the machine.
6. What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.
