• Model NO.：YLSK-1020
• Axis：10
• Servo Motor：Japan SANYO
• Transport Package：Wooden Case
• Specification：1000kg
• Trademark：YLSK
• Origin：Dongguan
• HS Code：8463300000
• Production Capacity：300 Sets,Year
• Package size per unit product：140.00cm * 85.00cm * 160.00cm
• Gross weight per unit product：850.000kg

Basic Info.

Model NO. YLSK-1020 Axis 10 Servo Motor Japan SANYO Transport Package Wooden Case Specification 1000kg Trademark YLSK Origin Dongguan HS Code 8463300000 Production Capacity 300 Sets/Year

Packaging & Delivery

Package size per unit product 140.00cm * 85.00cm * 160.00cm Gross weight per unit product 850.000kg

Product Description

YLSK- 1120/1128 UNIVERSAL CAMLESS SPRING MACHINE



PRODUCT DESCRIPTION

YLSK-1120/1128 Universal Cam less Spring Machine allows easy programming, precise & stable wire feeding mechanism. Twelve axis synchronous operation, Divided into Eight slides axis, Mandrel (Quill) axis, Wire feeder and Coiling Spinner (optional) axis. Equipped with Taiwan computer control and Japanese imported servo motors.
Wire feeding system is vertically mounted back side of the machine, 2 groups of wire feeding rollers gives feeding accuracy up to 0.01mm. Features: noise free, high synchronization accuracy.

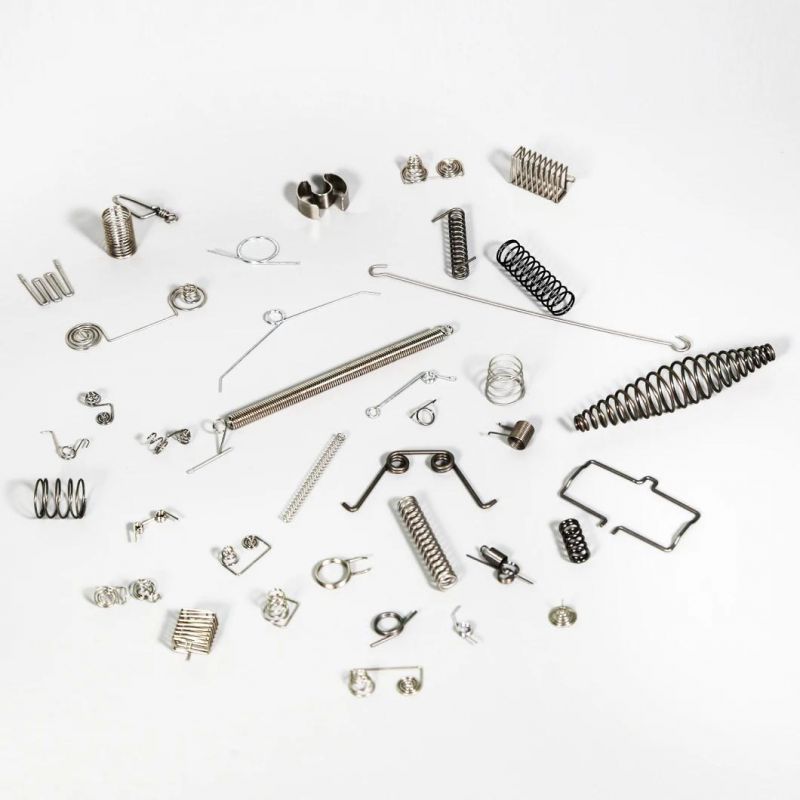

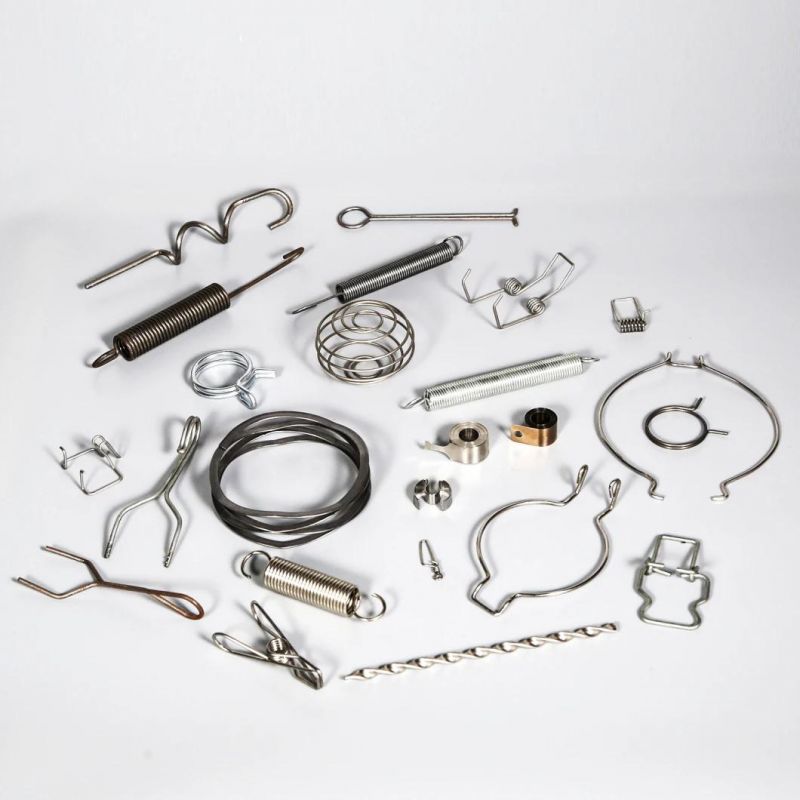

The coiling device is mounted on slide. Axis Position, Wire Length, Production Speed & Quantity of production are all displayed on the screen. Online programming and debugging is convenient. Suitable for special shaped spring, Torsion Spring, Extension Spring and many more special designs can produce.

TECHNICAL PARAMETERS

Model	YLSK-1120	YLSK-1128
(mm) Machining wire diameter	Ø0.2~Ø2.3	Ø0.2~Ø2.8
Axis Count	11 Axis	11 Axis
Max feeding Length	Unlimited	Unlimited
Program Storage	999 Max	999 Max
Instruction value of wire feed	±0.01~±9999.99mm	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90	±0.10~±359.90
(kw) Servo motor of wire feed	2.7	2.7
(kw) Servo motor of slide	8×0.4	8×0.75
(kw) Servo motor of Quill (Z-axis)	0.75	0.75
(kw) Servo motor of Coiling Spinner (optional)	0.4	0.4
Machine size (LxWxH) (mm)	1400×850×1600	1450×900×1700
Weight (kg)	850	1000
Power	380V 3-Phase	380V 3-Phase

FAQ
1. Q: Can you customize the machine for the customer?
  A: Yes,we can.We also provide OEM for customer,if you need customize service,please contact us.

2. Q: What is the Min.Order?
  A:  One set.

3. Q: What is the payment term
  A: The payment term is 30% deposit as PO confirmation ,and 70% after the shipment.We also accept other payment term.

 Q: What is the delivery time?
  A: Normally the delivery time of the machine is 30 days after receiving deposit.But it depends on machine model.Some of
      them could be shipped within 10 days.

5. Q: What is the guarantee period of the machine?
  A: The guarantee period is one year from the date of B/L.
