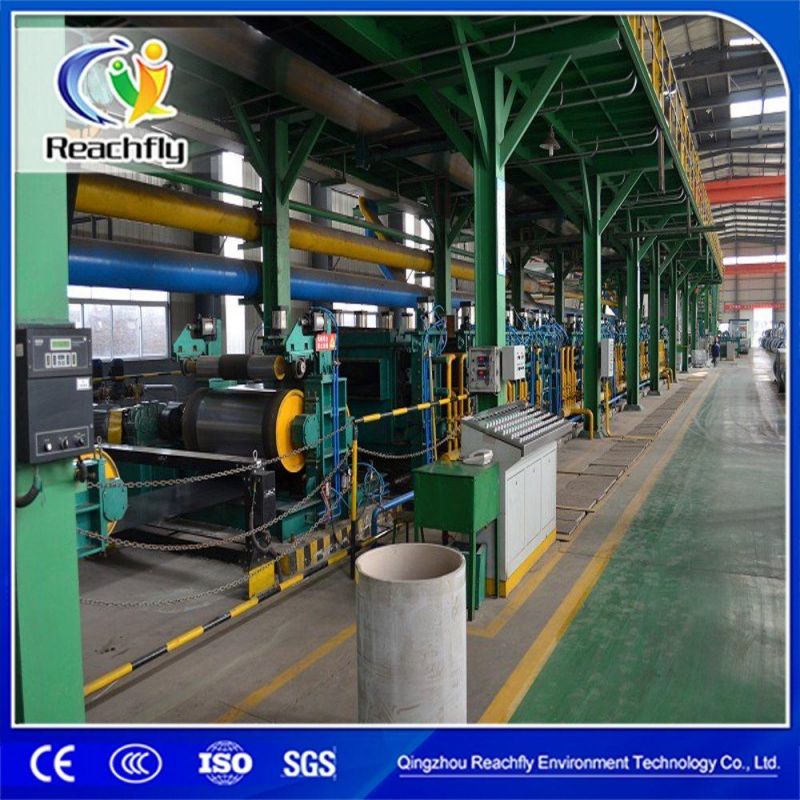

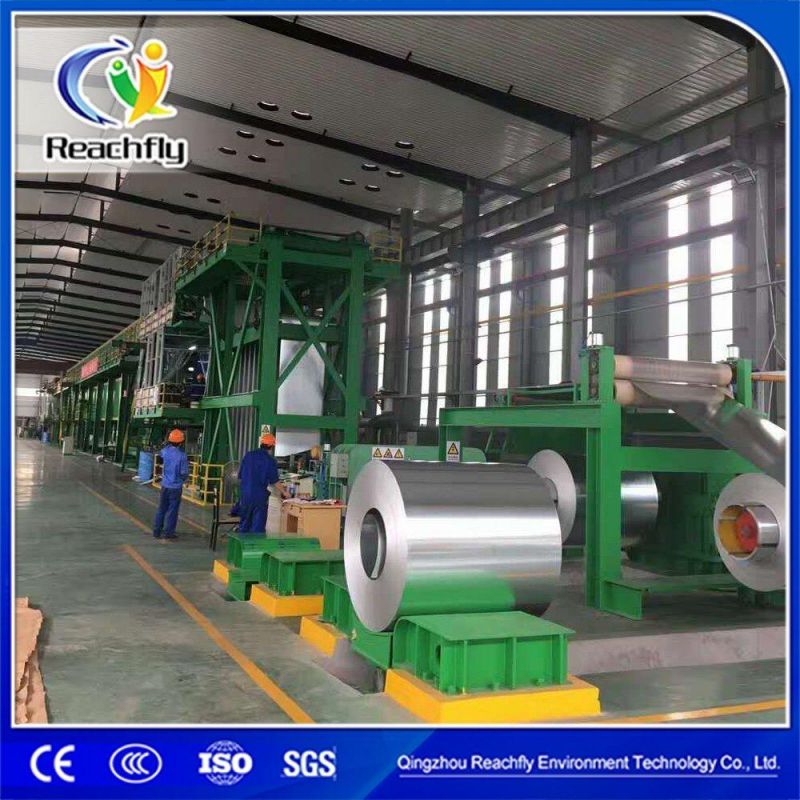

Metal Coil Color Coating Line for Construction Materials

Qingzhou Reachfly Environment Technology Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Type：Coating Production Line
  • Coating：Coil Coating
  • Substrate：Steel
  • Certification：ISO

Base Info

  • Model NO.：ccl-252
  • Condition：New
  • Base Coil：Steel,Aluminium
  • Coil Thickness：0.15-2.0mm
  • Coil Width：650-1650mm
  • Color Coating：5-25um,5-15um
  • Outer Diameter of Coil：800-2000mm
  • Process Speed：30-180m,Min
  • Annual Capacity：30000-200000 Ton
  • Thickness of Printing Layer：<1um
  • Core Components：PLC, Engine, Motor
  • Energy Type：Natural Gas, LPG, Electricity
  • Product Grade：Construction Plate, Household Appliance Plate
  • Showroom Location：Viet Nam, India, Russia, Kenya,UAE, Algeria
  • After Warranty Service：Video Technical Support, Online Support
  • Installation Team：Provide
  • Technology Program：Provide
  • Transport Package：Container
  • Specification：customized
  • Trademark：Reachly
  • Origin：Shandong, China
  • HS Code：8479819000
  • Production Capacity：20 Sets , Year

Description

Metal Coil Color Coating Line for Construction MaterialsMetal Coil Color Coating Line for Construction MaterialsMetal Coil Color Coating Line for Construction Materials Color Coated Steel Production LineMaterial of base plateElectro-galvanized plate, hot-dip galvanized plate, hot-dip Al-Zn plate, cold-rolled steel plate.etcWidth of strip steel650-1650mmThickness of strip steel0.15-1.5mmOuter diameter of steel coilΦ800-2000mmProcess speed30-180m/minThickness of coating
 5-25μm for the single-layer dry film on the front (or customized)
5-15μm for the single-layer dry film on the back (or customized )Thickness of printing layer≤1μm (oil link or polyester)Production capacity30,000-200,000 T/YearMetal Coil Color Coating Line for Construction Materials1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.

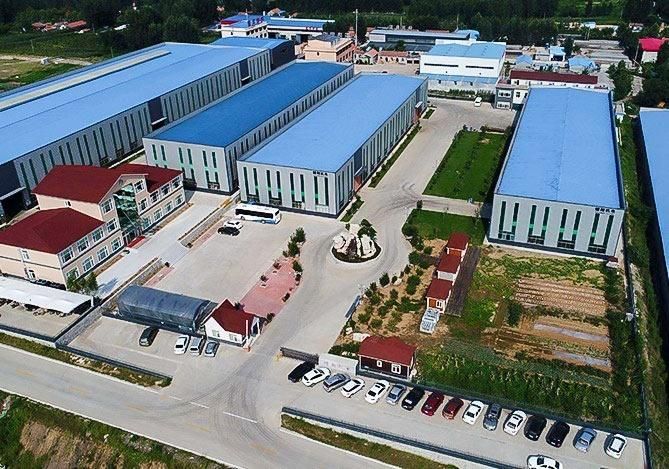

About us Metal Coil Color Coating Line for Construction MaterialsQINGZHOU REACHFLY ENVIRONMENT TECHNOLOGY CO., LTD.

We are manufacturer of metal strip coils processing equipment.
We can supply and install (turnkey project):
1.Coils Color Coating Line - CCL
2.Continuous Galvanizing/ Galvalume Coating Line - CGL
3.Slitting Line
4.Tension leveler Line
5.Skinpass Mill Line Metal Coil Color Coating Line for Construction MaterialsPre Sales Service
1) The Machine Layout will be designed according to your factory conditions.
2) Providing a Sample Project for customer to visit.
3) Machine Manufacturing progress (with some photos).

After Sales Service
1) Tracking the running condition of machine.
2) Provide 12 months guarantee as well as full spare parts for free.
3) Life long technical support.
4) Installation and training service (Optional).
Metal Coil Color Coating Line for Construction Materials
FAQ
1. Do you offer custom service?
Of course, most of our machines are built according to customers specifications, using top brand name components.

2. How to ensure the quality?
1)In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2)Each component before assembly needs strictly control by inspecting personnel.
3)Each assembly is in charged by a master who has working experience for more than 5 years.
4)After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.

3.Do you provide after-sales service?
1)After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2)After the commissioning, we will package the equipment by standard export package for shipment.
3)We will arrange our engineers to customers' factory to do the installation and training.
4)Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
You are welcome to visit our factory at any time!
