• Model NO.：DN8-32mm
• Delivery：15 Days After Your Advance Payment
• Payment：L,C, T,T
• Control：PLC
• Transport Package：Standard Seaworthy Package
• Specification：DN8-32mm, SGS
• Trademark：HLT
• Origin：Wuxi, Jiangsu
• HS Code：8447902000
• Production Capacity：15 Sets,Year

Basic Info.

Model NO. DN8-32mm Delivery 15 Days After Your Advance Payment Payment L/C, T/T Control PLC Transport Package Standard Seaworthy Package Specification DN8-32mm, SGS Trademark HLT Origin Wuxi, Jiangsu HS Code 8447902000 Production Capacity 15 Sets/Year

Product Description

mechanical flexible hose making machine
Product decription
*Size range: DN8 up to DN32
*Wall thickness: 0.18-0.3mm
*Production speed:2.5~3.5m/min
*Strip thickness: 0.18-0.3mm
*Material: sus304, 321 and 316L

Technical data of mechanical flexible hose making machine

No.	Size	Tube OD (mm)	Wall thickness (mm)	Hose ID (mm)	Hose OD (mm)	Pitch  distance (mm)	Width of the strip (mm)
1	DN 8	10.3	0.18	8	11.3	2.7	31.8
2	DN10	12.3	0.18	10	13.5	2.9	38.1
2	DN 12	15	0.18	12.3	16.3	3.2	46.6
3	DN 16	20	0.2	16.2	21.3	4.5	62.2
4	DN 20	23.5	0.25	20	25	4.5	73.0
5	DN 25	30	0.3	25	31.5	4.5	93.3
6	DN 32	39.5	0.3	33	41	4.5	123.2
7	DN50	55.7	0.35	50	56.7	6	173.2

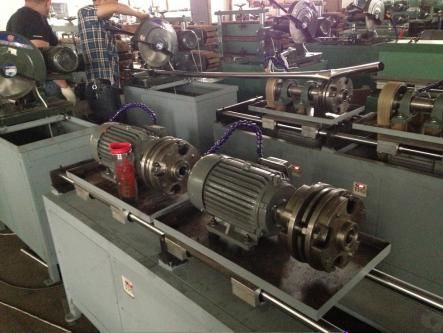

Product showsmechanical flexible hose making machine

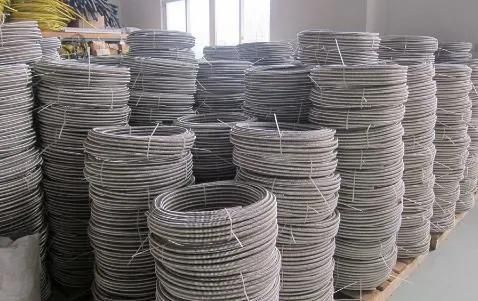

stainless steel flexible metal hose

FAQ for mechanical flexible hose making machine

Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
