• Model NO.：YGTQ series
• Customized：Non-Customized
• Condition：New
• Item Name：Bar Straightening Cutting Machine
• Working Principle：Hydraulic
• Color：Orange, Green or as Required
• Application：Straightening and Cutting
• Transport Package：Plywood
• Specification：size is different for different model
• Trademark：Hengyisheng
• Origin：Henan
• HS Code：8462219000
• Production Capacity：8000 Sets,Year

Basic Info.

Model NO. YGTQ series Customized Non-Customized Condition New Item Name Bar Straightening Cutting Machine Working Principle Hydraulic Color Orange, Green or as Required Application Straightening and Cutting Transport Package Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan HS Code 8462219000 Production Capacity 8000 Sets/Year

Product Description

Full Automatic Steel Wire Rebar Straightening and Cutting Machine Automatic Steel Wire Straightening Cutting Machine is a kind of highly effective equipment, it has the following features:

1)  Speed can be adjusted

2)  Adopt to different workers

3)  High efficiency, quick modulation speed, smaller error and material loss to a minimum

 This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It's made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.

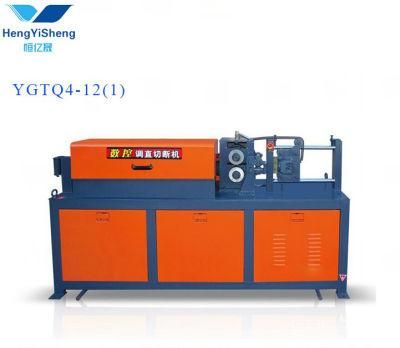

Model No.	YGTQ4-10	YGTQ4-12(1)	YGTQ 4-12(2)	YGTQ5-14	YGTQ6-16
Round bar	φ 4-φ 10mm	φ 4-φ 12mm	φ 4-φ 12mm	φ 5-φ 14mm	φ 6-φ 18mm
Deformed bar	φ 4-φ 8mm	φ 4-φ 10mm	φ 4-φ 10mm	φ 5-φ 12mm	φ 6-φ 16mm
Cutting  length(mm)	700-8000	300-8400	300-8400	300-8400	500-9500
Cutting error	±10mm	±10mm	±10mm	±10mm	±10mm
Straighten  speed	35-45m/min	40-45m/min	40-45m/min	50-55m/min	60-80m/min
Straighten and pulling motor	5.5kw	7.5kw	7.5kw	11kw	15kw
Cutting motor	/	5.5kw	/	5.5kw	5.5kw
L*W*H	1.3×0.75×0.5 m	2.0×0.64×1.3m	1.9×0.84×0.9m	2.9×0.64×1.3m	4.0×0.65×1.2 m
Weight	260kg	900kg	650kg	1200kg	1500kg

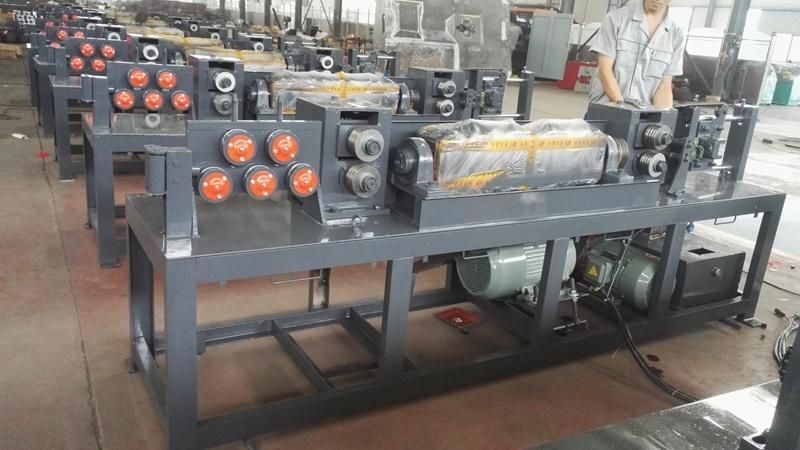

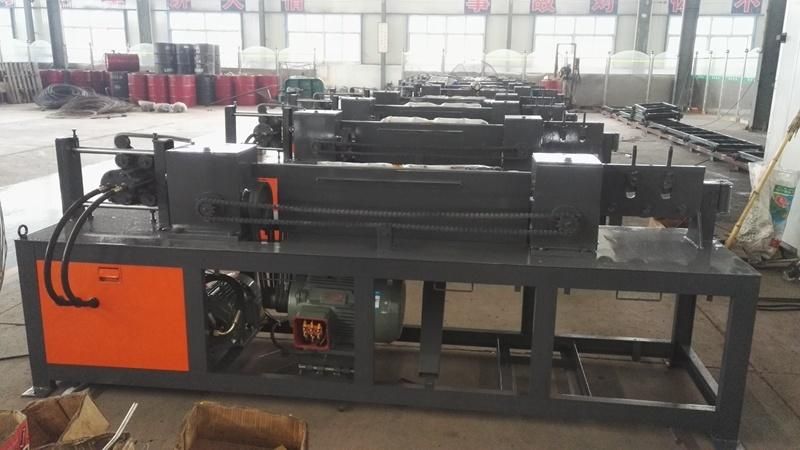

Automatic Steel Wire Straightening Cutting Machine under production picture:

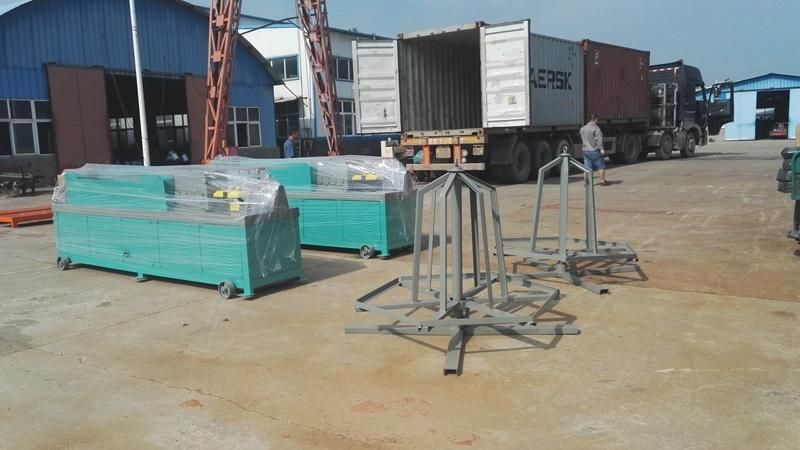

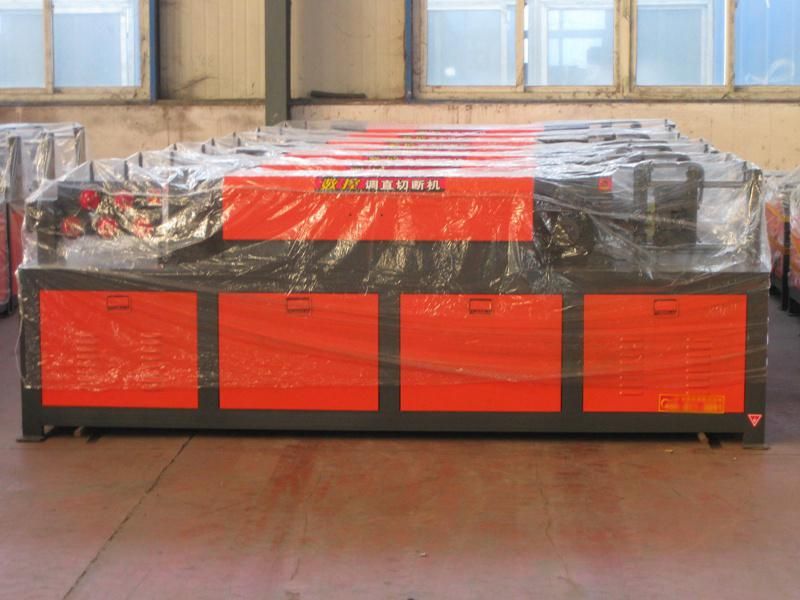

Automatic Steel Wire Straightening Cutting Machine Loading for oversea clients:



Our Services of Automatic Steel Wire Straightening Cutting Machine:

Pre-sale Service
1. Supply item design, process design.
2. Help you to choose the most suitable machine.
3. Making the machine according to your requirement.

On-Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.

After Service
1. Guarantee for two years
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without the accessories charge).

Company Information:


Why Choose HengYiSheng?
HengYiSheng Machinery has:

Quality Advantage
The High quality but Mid-range price, durable quality brings you continuous profits.

Category Advantage
We provide full category of cutting machine, bending machine, straightening machine, stirrup machine, and  machine.

Service Advantage
Our company provides two year warranty time.
Overseas after sales service available, workers could be sent to install machine and train your workers.

Technique Advantage
All machines are with easy operation, new users could operate machine in few minutes.

Delivery Advantage
Our company set logistic center in large cities in China, assures you get machines at first time.
