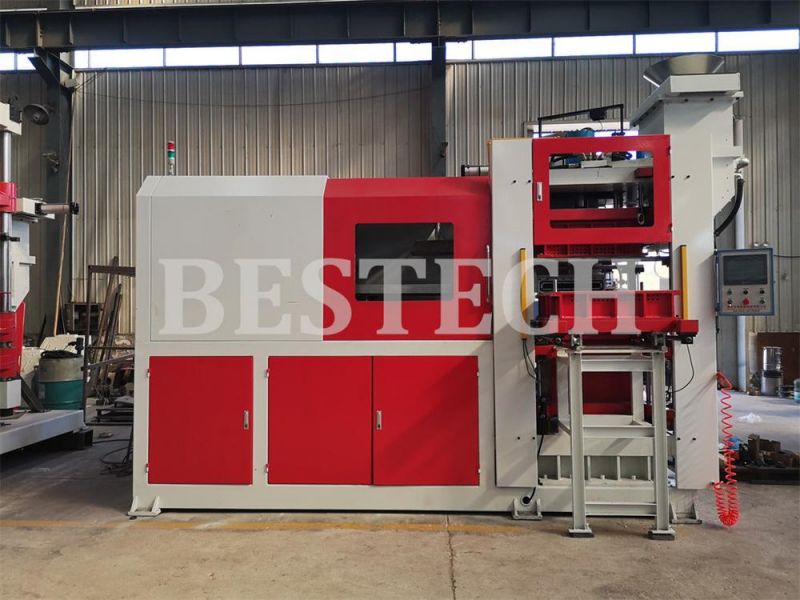

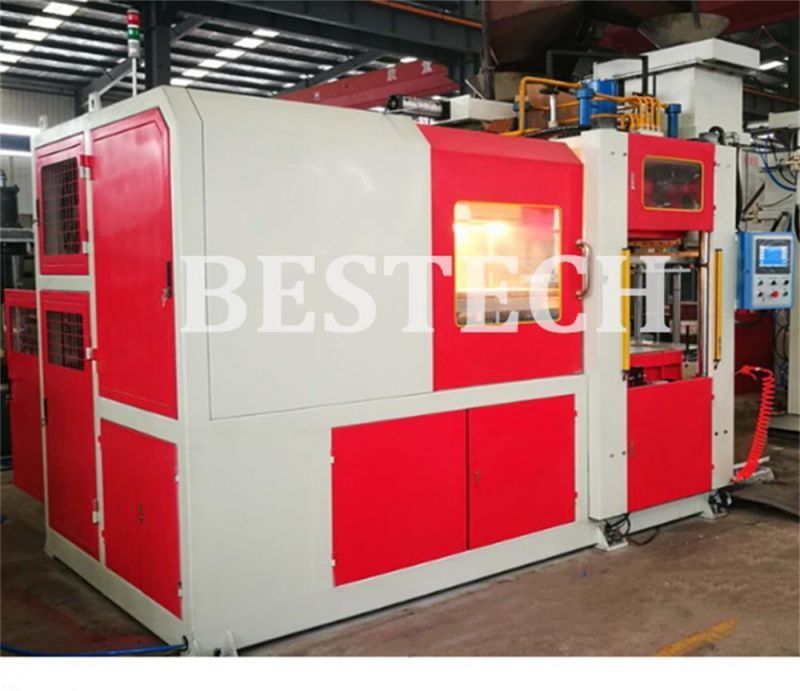

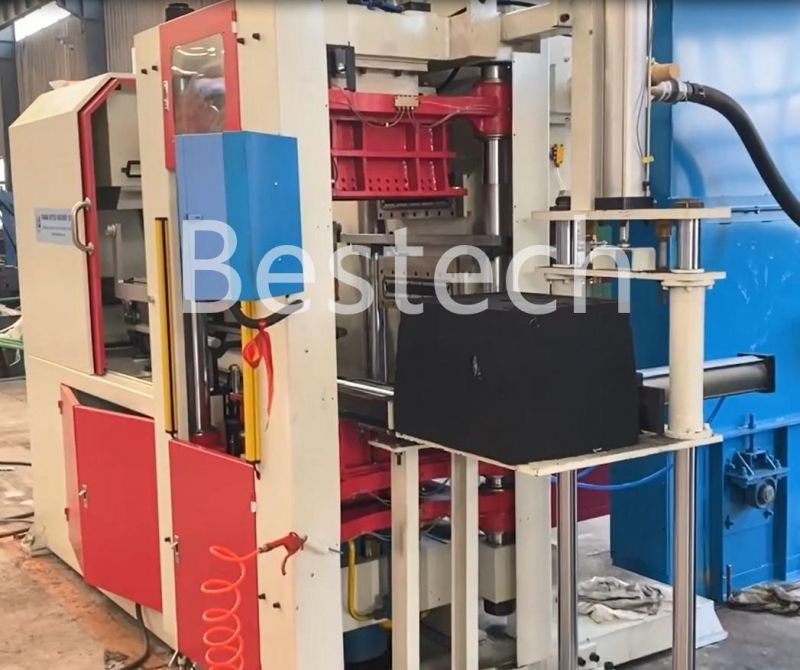

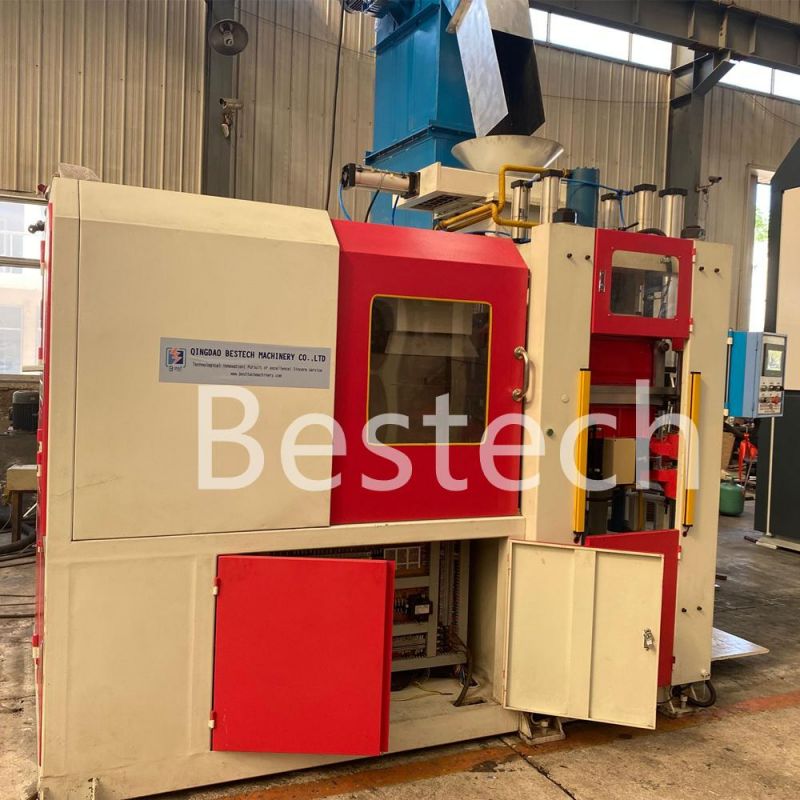

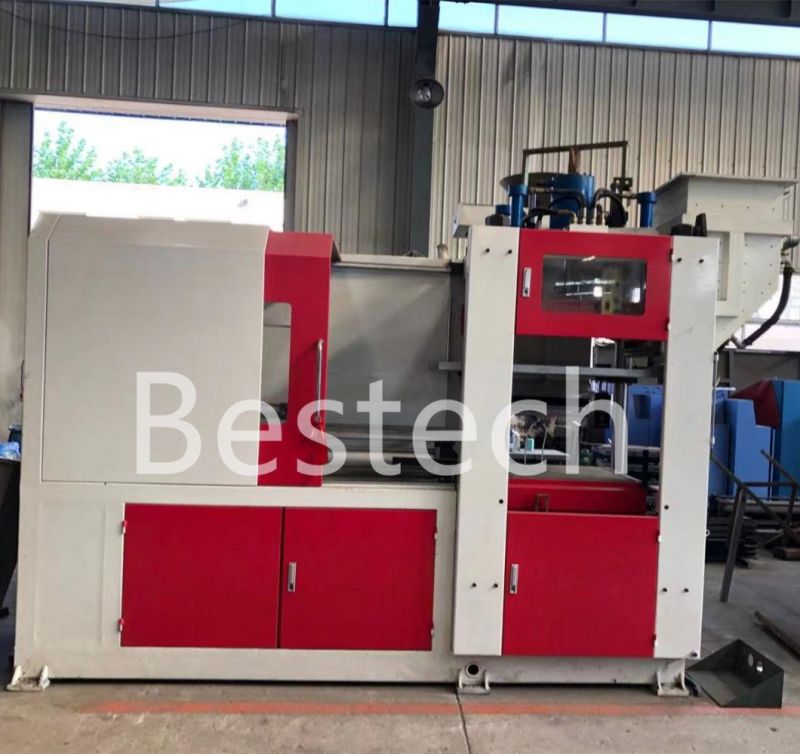

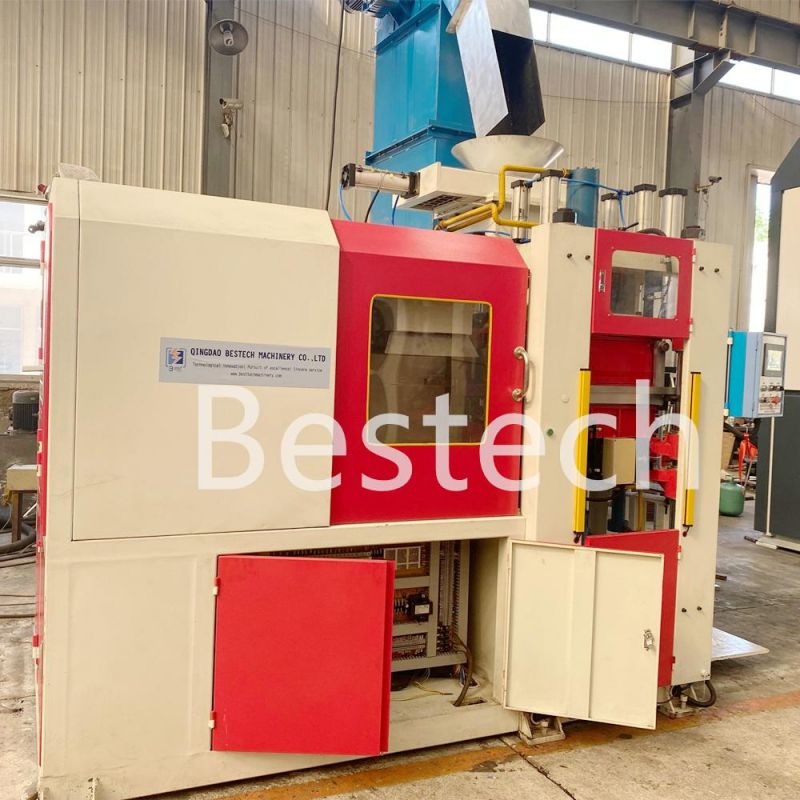

• Model NO.：Z426
• Voltage：Customized
• Transport Package：Wooden Box, Steel Strucutre or Customized
• Specification：CE ISO
• Trademark：bestech
• Origin：China
• HS Code：8474809090
• Production Capacity：50 Sets Per Month

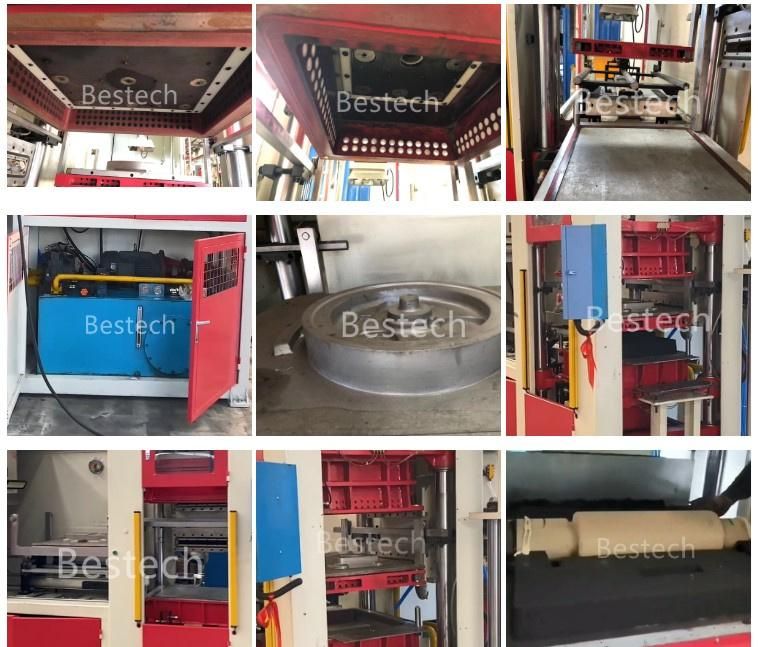

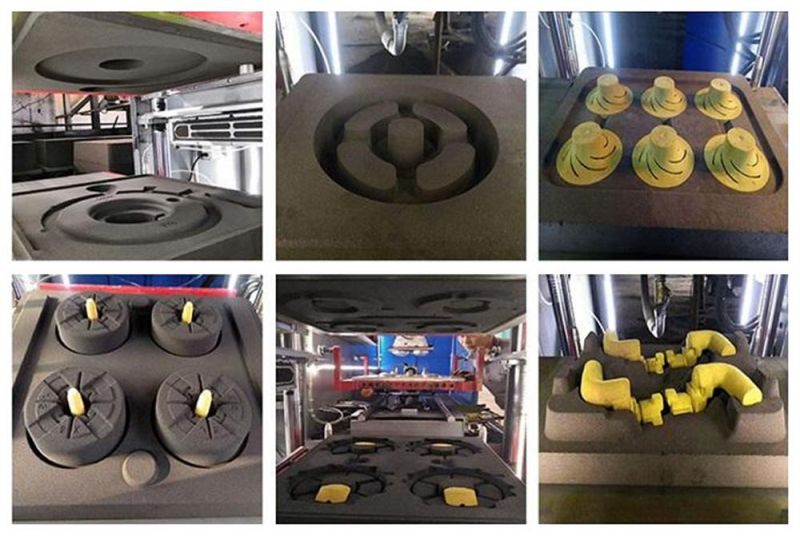

Main characteristics as follows:1. Horizontal parting, suspended shot sand, horizontal casting.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.2. Adjustable castings height and compaction pressure
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.3. Convenient template replacement.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.4. Failure display
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.5. High reliability of hydraulic, pneumatic and electrical system.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.6. Easier, more convenient and safer for core setting
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.7. Adopt servo hydraulic system to save energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.

technical parameter:


Parameter/Model	XGA-Z425	XGA-Z426	XGA-Z427	XGA-Z428	XGA-z4210
Sand Mold Dimension (mm)	500*400*120-150 550*450*120-150	610*508*130-180 660*508*130-180	700*600*130-180 600*600*130-180	800*700*200-250 800*800*200-250	1000*800*200-280 1000*1000*200*280
Productivity (Second/Mould)	36-40	40-45	40-45	50-55	55-60
Air pressure (Mpa)	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
Air consumption (m³/Min)	1.6	2	2.2	2.5	2.8
Oil pressure (Mpa)	8.5	10.6	9.2	8.9	8.5
Total power (Kw)	15	18.5	22	22	30
Sand consumption (T/h)	8.6-12	10.5-17	12-22	23-30	30-40
