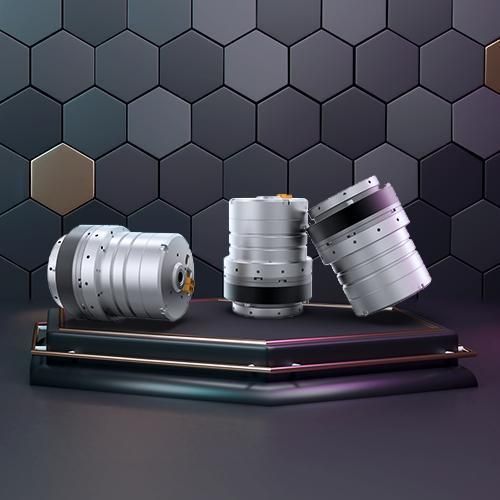

183W Joint Module DC Motor for Industrial & Medical Robots
Shenzhen kingtechrobot Technology Co., Ltd- Condition:New
- Certification:CE, RoHS
- Customized:Customized
- Application:Metal Processing Machinery Parts
- Product Name:Robot Hollow Joints
- Transport Package:Wooden Case
Base Info
- Model NO.:KTHJ17
- Origin:China
Description

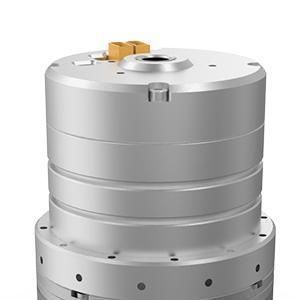

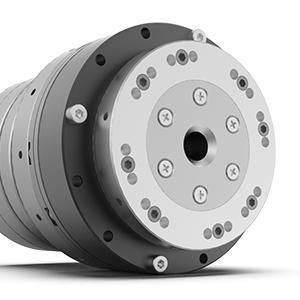

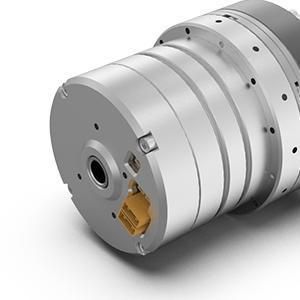

Highly integrated precision design, easier to use
Volkswagen air frameless torque motor, more powerful
Friction holding brake, quick start and stop is safer
High-precision dual encoder, fully closed-loop precise control
2, Application scenarios
Widely used in AMR, service robots, collaborative robots, medical equipment, industrial robots, automation equipment, bionic robots
3, Product advantagesUltra-thin hollow
9MM hole design can pass cables, gas paths, etc.
Reduces twisting and bending of multiple parallel cables
Reduce exercise load and improve work efficiency Hollow frameless torque motor, stronger power
Maximum instantaneous torque 54Nm
Module peak speed 50rpm
The total module weight was only 1.2kg
Maximized joint weight reduction
Very low torque fluctuation, low rotational inertia, fast dynamic response
Friction brake, fast start/stop, and safer
Excellent safety braking, anti-safety collision, a small change in instantaneous holding torque, instant braking of the load even in abnormal times
High-precision dual encoders for full closed-loop precision control
High-precision dual encoders for more precise control of motion trajectory than imaginable
4, Parameters TableKTHJ17-100-YC-DEC-AN-000-V00Parameter Numerical value Parameter Numerical value Rated voltage 48V Encoder type Absolute double encoder Motor rated power 183W Reduction ratio 50/80/100 Rated motor current 4.8A Module reducer backlash 30arcsec Motor rated speed 3500rpm/min Module weight 1.8KG Motor rated torque 0.5Nm Module Diameter 80mm Motor torque constant 0.117Nm/A Module rated load 20/30/40Nm Counter-electromotive force coefficient 7.1Vrms/KRPM Module Maximum Instantaneous Torque 60/87/110Nm Type of holding brake Electromagnetic friction plate type Module rated speed 56/36/28rpm Module peak speed 77/48/40rpm
Our product technology is constantly updated and upgraded. At the same time, we also accept the customization and development of customers.

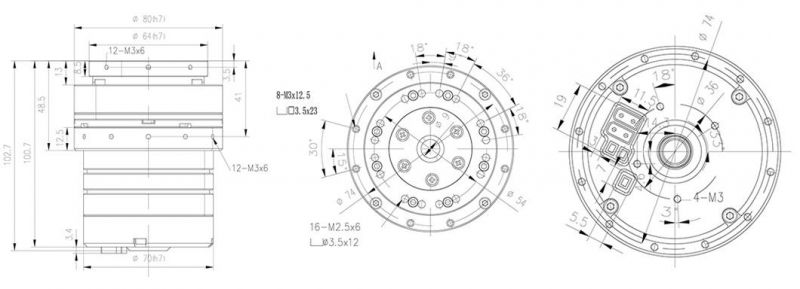

5, Product drawings
6, Our Services
(1) One-to-one sales online reception
(2) Best pre-sale and after-sale service
(3) Product Quality Assurance:
Kingtechrobot products had gone through authoritative evaluation, approves CE, FCC, RoHS certification, and strict tests before shipment.
Professional QC team, Strict quality testing, and control procedure to make sure superior quality
(4) Support OEM& ODM
(5) Fast delivery, multiple transportation methods to choose
(6) All products enjoy after-sales technical support for the lifetime
Volkswagen air frameless torque motor, more powerful
Friction holding brake, quick start and stop is safer
High-precision dual encoder, fully closed-loop precise control
2, Application scenarios
Widely used in AMR, service robots, collaborative robots, medical equipment, industrial robots, automation equipment, bionic robots
3, Product advantagesUltra-thin hollow
9MM hole design can pass cables, gas paths, etc.
Reduces twisting and bending of multiple parallel cables
Reduce exercise load and improve work efficiency Hollow frameless torque motor, stronger power
Maximum instantaneous torque 54Nm
Module peak speed 50rpm
The total module weight was only 1.2kg
Maximized joint weight reduction
Very low torque fluctuation, low rotational inertia, fast dynamic response
Friction brake, fast start/stop, and safer
Excellent safety braking, anti-safety collision, a small change in instantaneous holding torque, instant braking of the load even in abnormal times
High-precision dual encoders for full closed-loop precision control
High-precision dual encoders for more precise control of motion trajectory than imaginable
4, Parameters TableKTHJ17-100-YC-DEC-AN-000-V00
Our product technology is constantly updated and upgraded. At the same time, we also accept the customization and development of customers.
5, Product drawings
6, Our Services
(1) One-to-one sales online reception
(2) Best pre-sale and after-sale service
(3) Product Quality Assurance:
Kingtechrobot products had gone through authoritative evaluation, approves CE, FCC, RoHS certification, and strict tests before shipment.
Professional QC team, Strict quality testing, and control procedure to make sure superior quality
(4) Support OEM& ODM
(5) Fast delivery, multiple transportation methods to choose
(6) All products enjoy after-sales technical support for the lifetime
