• Model NO.：JK-FP-2500B
• Mesh Opening Size：50*50-200*200mm
• Mesh Width：2500mm
• Mesh Type：Rolling Mesh
• Welding Speed：45-60times,Min
• Raw Material：Low Carbon Steel,Stainless Steel
• Control System：PLC
• Power Supply：120kw
• Machine Name：Automatic Welded Roll Wire Mesh Making Machine
• Transport Package：Plastic&Wooden Box
• Specification：CE, ISO, SGS
• Trademark：JIAKE
• Origin：Anping. Hebei, China
• HS Code：8463300000
• Production Capacity：4200kg

ModelDP-FP-2500BNWire diameter2.5-6mmLongitude wire space50-300mmCross wire spaceMin.50mmMesh widthMax.2.5mWelding speed45-60 times/minLongitude wire feedingFrom wire coilsCross wire feedingPre-straightened&pre-cutWelding electrodes48pcsTransformers125kva*6pcsMachine size2.9*3.2*1.7mWeight4500kg

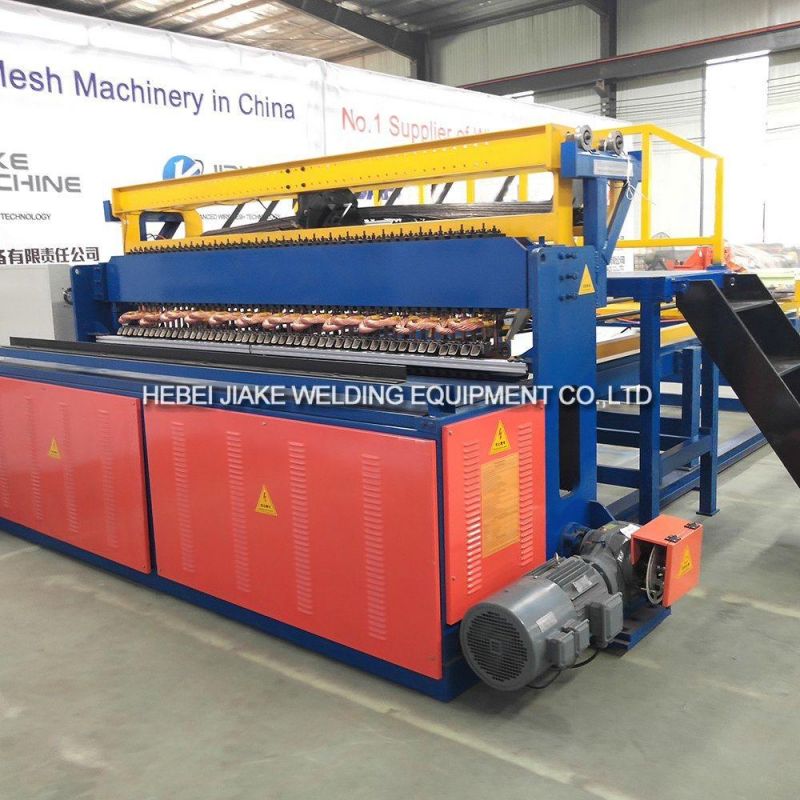

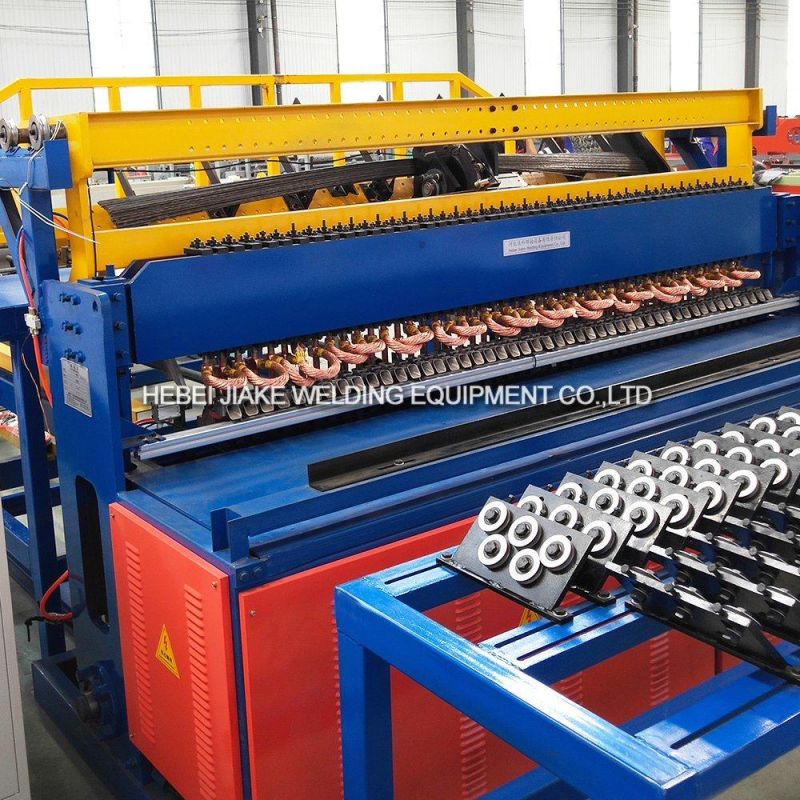

Machine Description
1.Control system: Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.
2.Wire feeding system: longitude wire from wire coils; cross wire-hopper device with step motor.
3.Cooling system: casting water-cooling transformers.
4.Mesh pulling system: Panasonic (Japan) servo motor for pulling mesh.
5.Special technology: Brake clutch motor connects the principal axis directly, working stable.
6.Machine material:  thick steel plate and profile steel, high strength and toughness.
7.Welding electrodes: pure red copper, can be used 3-6 months.

Our service

1. Guarantee time:one year since machine was at buyer' factory within 18 months against B/L date
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer's factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.
Quality control
We always pay more attention to the quality of our machine, Standard quality control system and team are responsible to insure the high quality in every process.  We are devoted to producing a more efficiency and safer mesh welding machines.


Company Information



Hebei Jiake Welding Equipment Co.,Ltd  is a profesinal manufacture have 10000M2 factory with more than 20 years experience ,Specialize in the welding machine and equipment :wire mesh welding machine ,fence mesh welding machine,chicken cage welding machine , rabbiet cage welding machine ,reinforcing mesh welding machine,automatic welded mesh machine and producttion line of wedged screen and steel gratings.

Inquiry me now , I will reply you immediately !
