• Model NO.：S11
• Certification：CE, ISO9001
• Type：Sand Casting
• Name：Sand Mixer Machine
• Type of Sand：Clay Sand(Green Sand)
• Use：Foundry
• Transport Package：Wooden Box
• Specification：CE
• Trademark：besttech
• Origin：China
• HS Code：8474390000
• Production Capacity：100 Sets Per Month

Doubele Grinding Wheel Green Sand mixer is a kind of sand processing equipment widely used in the foundry industry. As the key equipment in the casting process, it is a key factor in controlling the quality and cost of sand. The green sand mixer can be divided into: roller type green sand mixer mainly with rolling and rubbing effects(double rolling type & single rolling type); countercurrent or rotor type green sand mixer with rubbing and mixing effects(s14 series)

The green sand mixer is a machine which can mix the clay sand, binder, additive, water, etc. for casting evenly and make it into molding sand or core sand with certain performance.can make the components of molding sand mix evenly , make the binder effectively cover the sand surface .

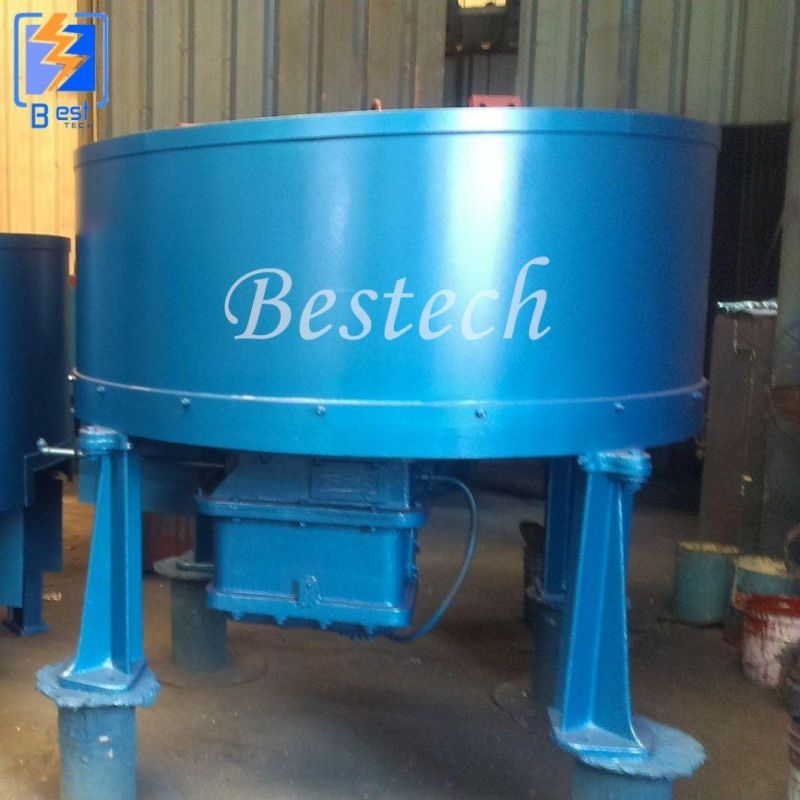

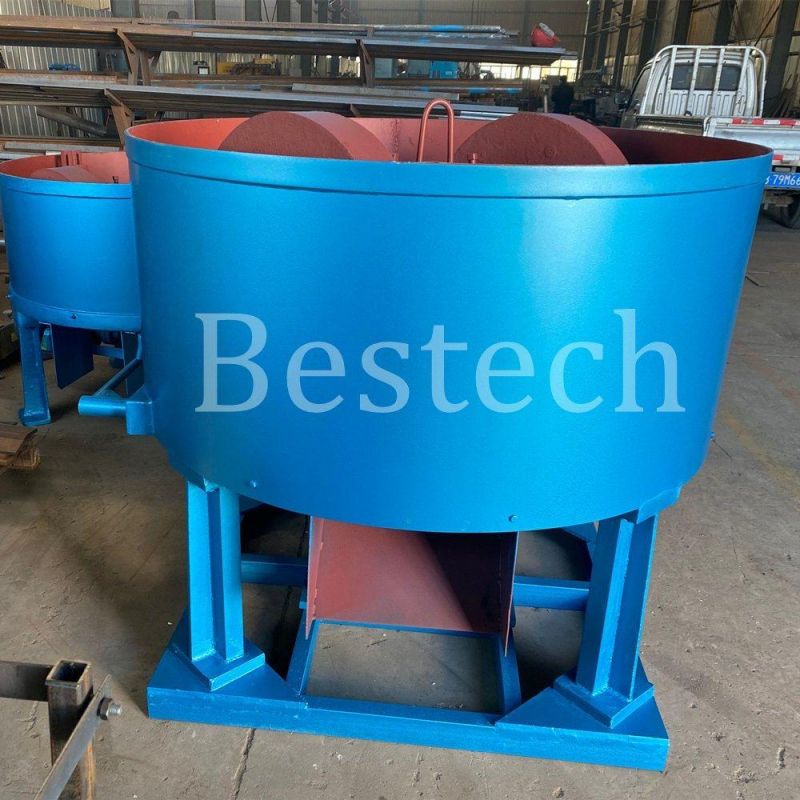

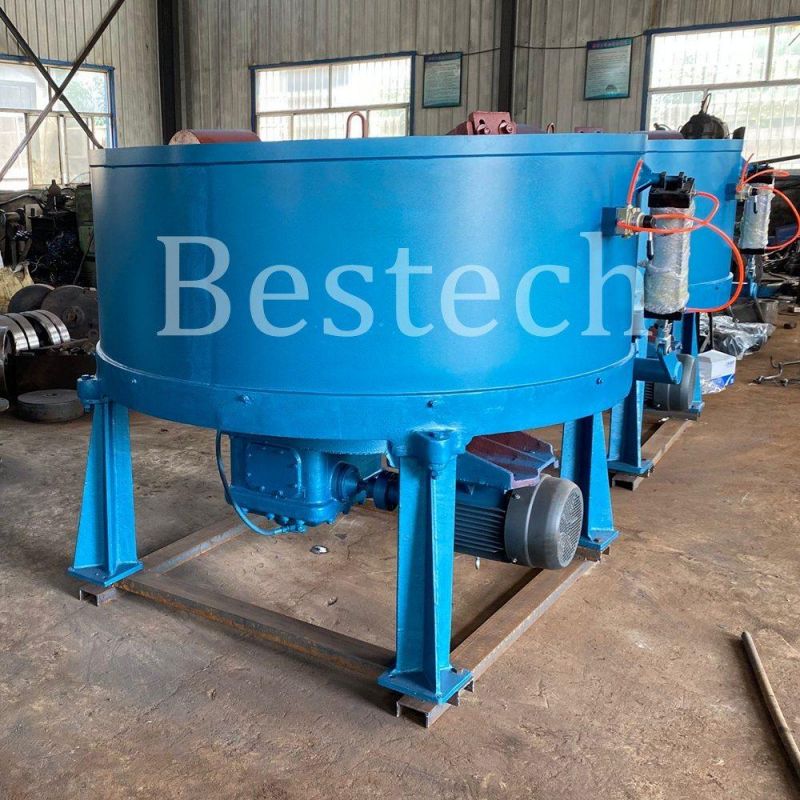

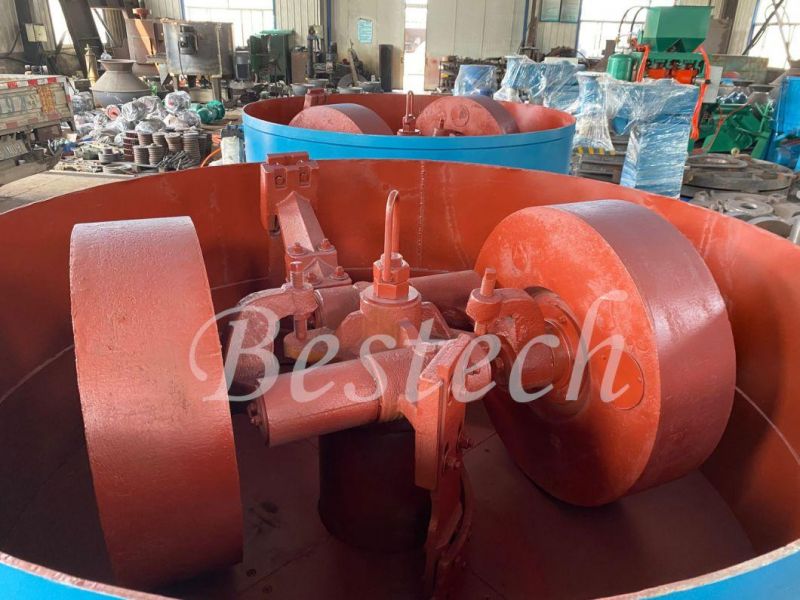

S11 green sand mixer muller is economic sand mixing machine for green sand. Two wheels crush and mix foundry sands, clay, coal power andwater.

Foundry Sand Mixer s mainly used for large and medium-sized foundry sand mixed system, mold can be mixed dry sand, since the hard sand, sand and core sand surface can also be used for glass, ceramics , refractories and other industries a variety of mixed powder granular materials.

Principle of Foundry Sand Mixer :
1.Foundry Sand Mixer is equipped with low-speed scraper with the best combination of rotor speed, sand volume, mixing ability, good overall performance sand.
2.Foundry Sand Mixer is equipped with diabase cast stone, tungsten carbide surfacing, fillers and other new materials, greatly improving the life of wearing parts

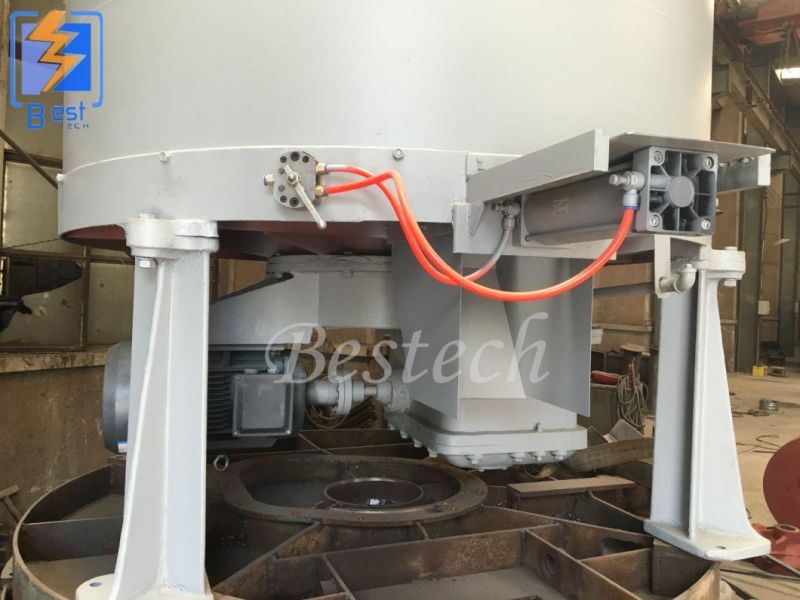

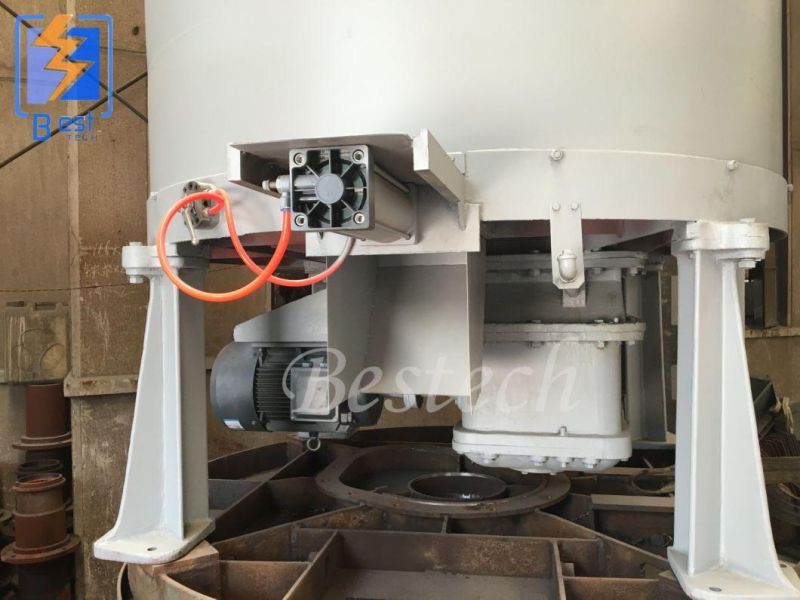

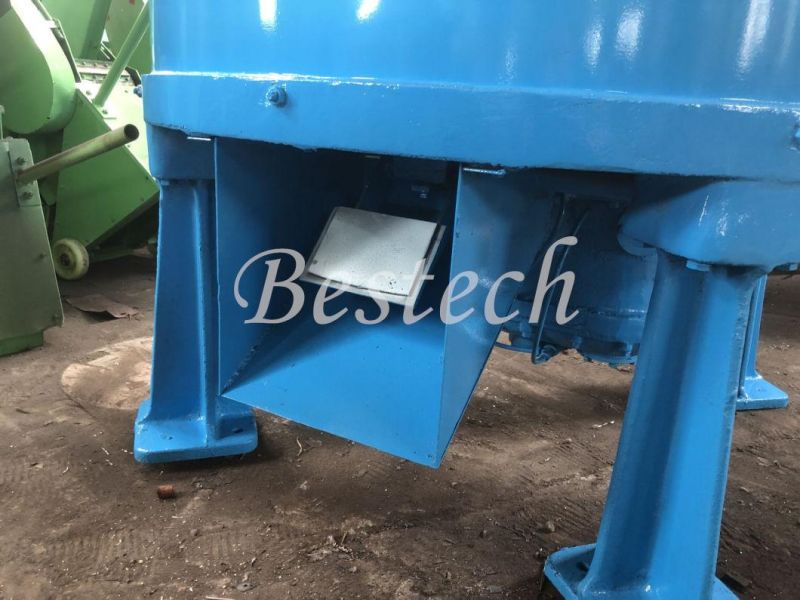

3.Foundry Sand Mixer is equipped with latest rotary discharge door open and flexible, reliable and completely solved the problem of sand at the bottom drain.
4.Foundry Sand Mixer is equipped with symmetric access door opened very convenient for maintenance and cleaning.
5.Foundry Sand Mixer is used very easy and install steel base.

Technical Parameter of foundry sand mixing machine

Type

Plate diameter(mm)

sand mixing capacity(kg)

Productivity

(t/h)

Motor power(kw)

ApproximateWeight(kg)

S1105

500

20

0.1-0.2

1.5

80

S1106

600

40

0.3-0.5

2.2

100

S1108

800

80

0.8-1.2

3

350

S1110

1000

110

1.5-2.5

4

900

S111A

1230

150

2-4

5.5

1020

S1112

1225

150

3-5

4-6

1237

S1113

1400

260

4-7

5-6

1400

S1115

1500

350

5-6

11

1900

S1116

1600

400

6-7

11

2000

S114C

1820

500

7-8

15

2600

S114D

1820

500

7-8

15

2600

S1118C

1800

650

15

22

5000

S1120J

2000

800

15-18

22

5000

S1120D

2000

900

20

37

6500

S1122

2200

1300

25

37

7800

S1124

2400

1500

30

45

8000

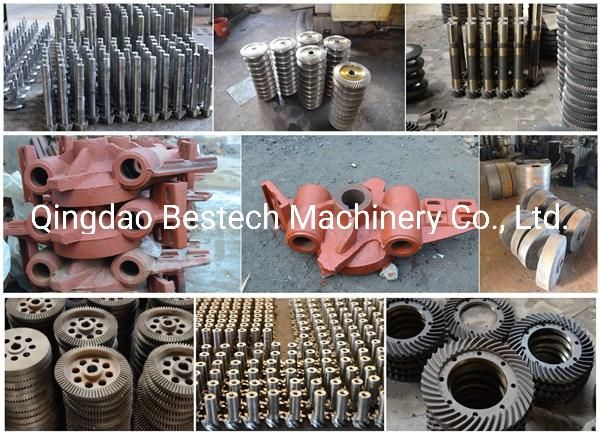

company information
