• Model NO.：Q-100B
• Transport Package：Wooden
• Specification：630*900*750
• Trademark：Laihua
• Origin：China
• HS Code：8461500090
• Production Capacity：1000 Set,Month

Basic Info.

Model NO. Q-100B Transport Package Wooden Specification 630*900*750 Trademark Laihua Origin China HS Code 8461500090 Production Capacity 1000 Set/Month

Product Description

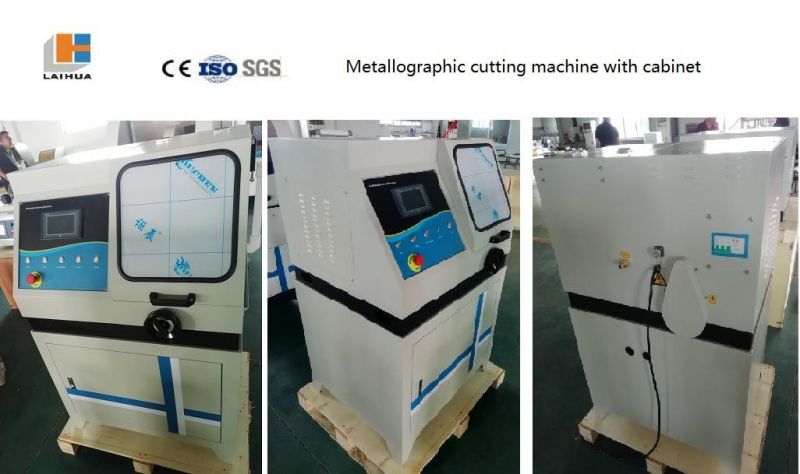

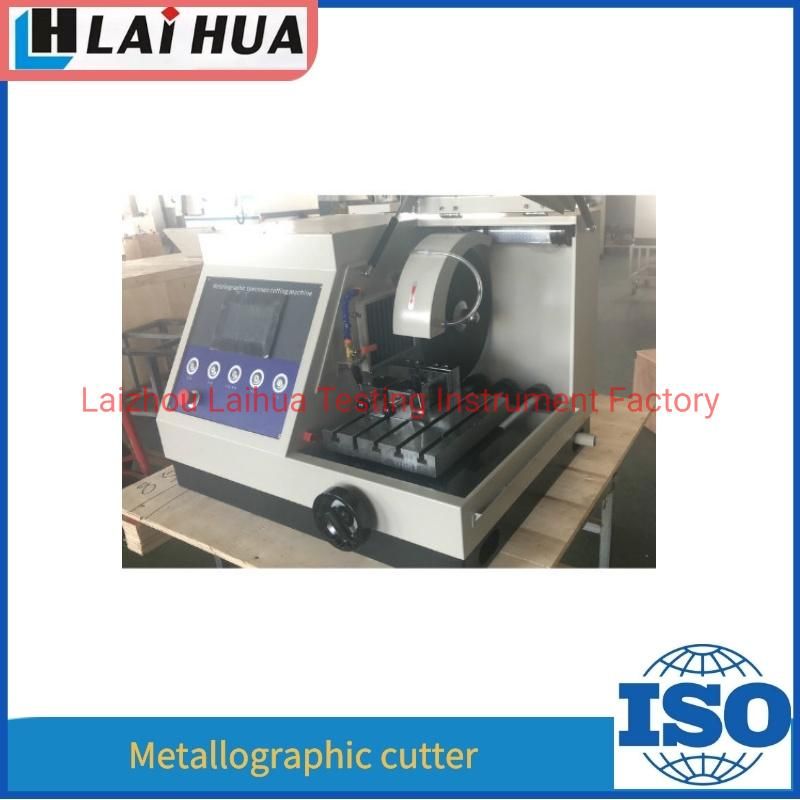

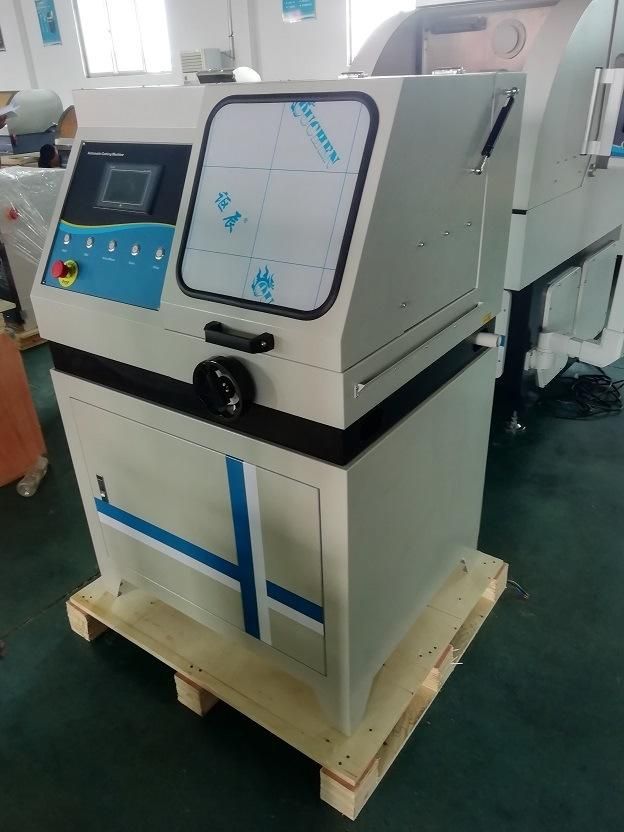

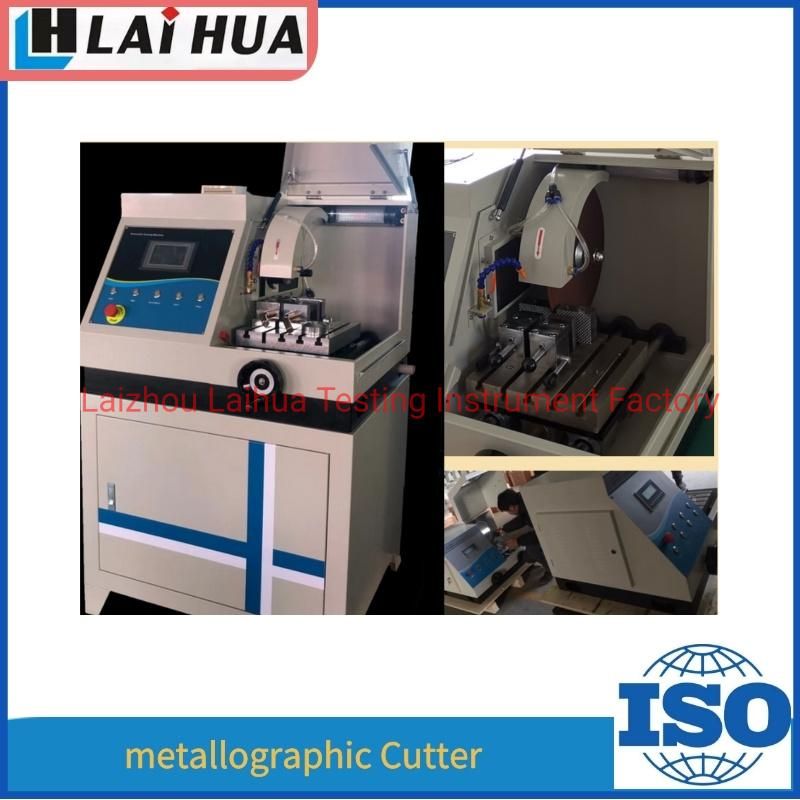

                                  Q-100B Metallographic Auto Cutting Machine

Introduction:

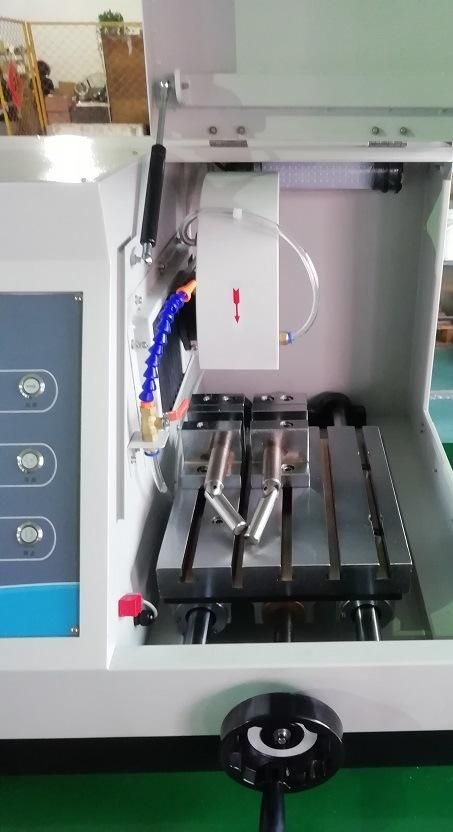

Q-100B type cutting machine can cut round specimens of the diameter within 80mm, also can cut witin height 80mm, depth 160mm rectangular specimens. The machine through automatic cooling systemto cool the sample, to prevent the sample overheating and burning during the cutting process. The cutting machine can also set the cutting speeds due to different samples, so as to improve the quality of cutting samples. The machine has manual cutting and automatic cutting types. With large cutting chamber and easy cutting for user, the cutting machine is one of metallographic test necessary sample preparation equipments for the colleges, factory enterprices. metallographic specimen automatic cutting machine/laboratory specimen preparation equipment

Technical specifications:

1.    Power: 380V, 50Hz

2.   Spindle speed: 2200r/min

3.    Grinding wheel size: 350*2.5*32mm

4.    Max. cutting ability: φ80mm

5.   Automatic cutting speed: 0.1-3.0mm/min,

It can choose automatic cutting way: interval cutting(big and hard workpiece), continuously cutting(small and soft workpiece)

Attension: the "Max. cutting ability" refers to new cutting wheel's cutting ability, the actual cutting ability depends on specimen's materials, grinding sheet and clamping technics.

5.  Max. cutting capacity: 100*200mm

6.   Motor: Three phases, 380V, 50Hz, 3kW

7.   Cutting table size: 300*290mm

8.  Dimension: 850*880*1200mm

Packaging and shipping

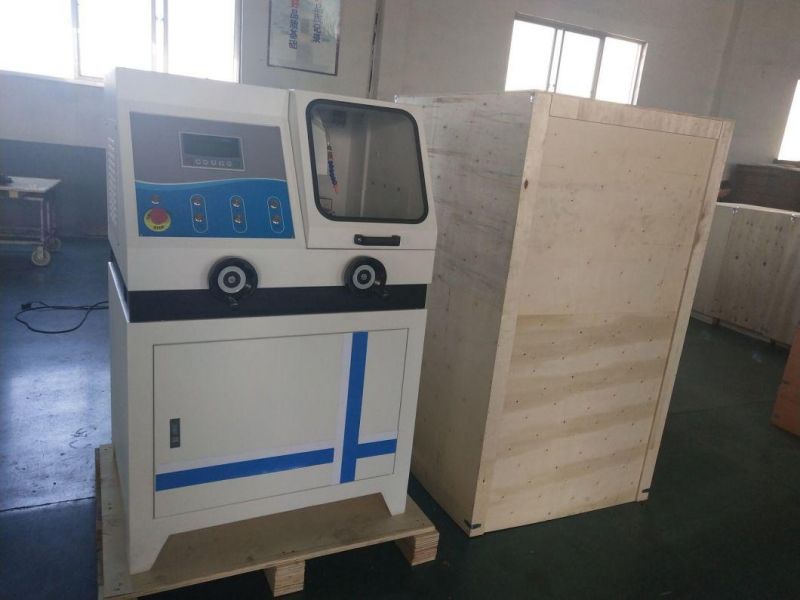

Packaging: Standard export package, wooden case
Delivery: 3-15 days upon receipt of payment, depend on order quantity

Company Information:

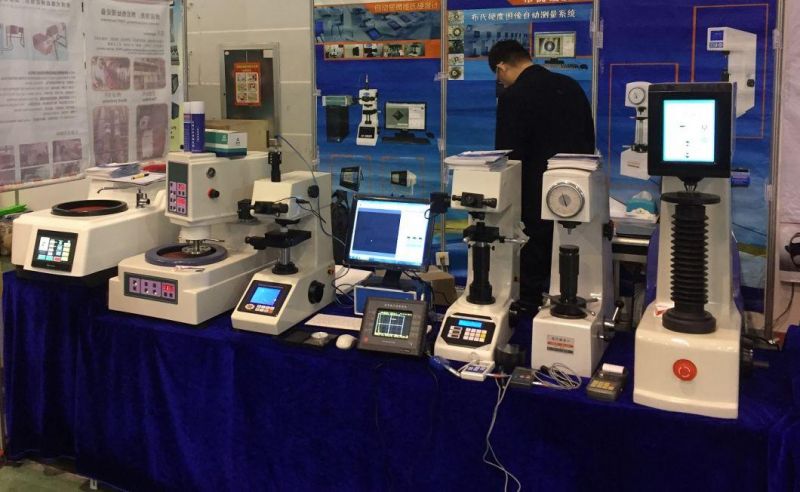

Laizhou LaiHua Testing Instrument Factory was founded in 2010,which specializes in the manufacture of hardness testers  and metallographic equipments for metaland nonmetal materials. Besides, we can also design special, large-scale dedicated machines according to the requirements of customers.

FAQ:
1, Min. Order Quantity
1 piece
2, Our technical team construction.
We have professional technicians with several years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer
