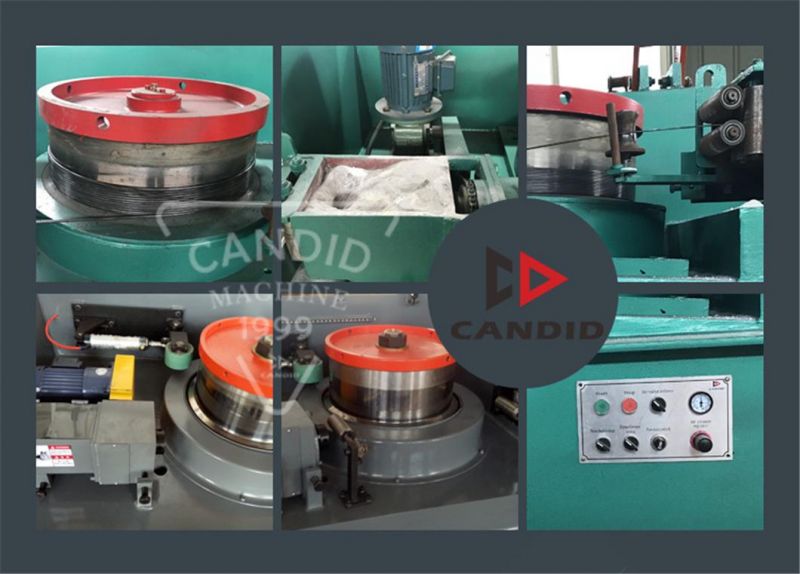

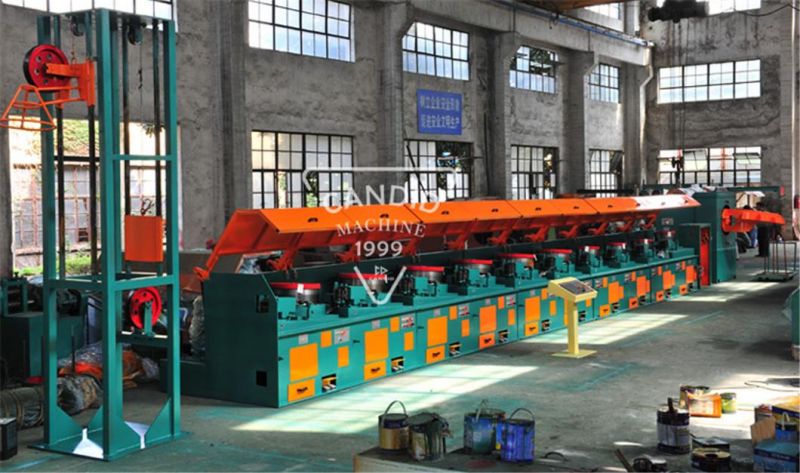

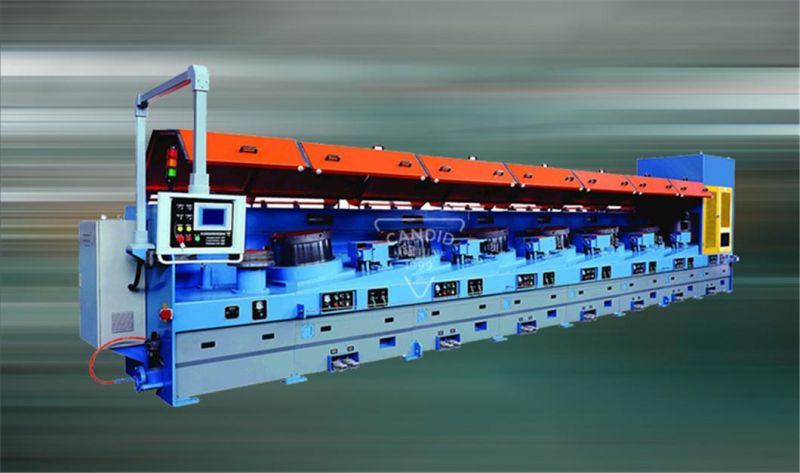

CNC Lz Series Straight-Line Wire Drawing Machining with High Speed
Hangzhou Candid I/E Corp. Ltd.- After-sales Service：One Year Since Machine Was at Buyer′ Factory
- Warranty：12 Months
- Type：LZ Straight-Line Metal Drawing Machine
- Usage：Wire, Rope Wire
- Metal Material：Steel
- Outlet Diameter：0.5-6.0mm
Base Info
- Model NO.：LZ
- Max.Inlet Wire Dia.：8mm
- Block Dia.：800mm
- Max. Number of Block：12
- Certification：CE
- Condition：New
- Power Supply：380,415,440,220V
- Power：22-55kw
- Max Speed of Drawing：25m,S
- Diameter of Block：300-800mm
- Suitable Material：Low Carbon Steel,Medium Carbon,High Carbon Steel
- Transport Package：Coverd with Film
- Specification：8600*1390*1925mm
- Trademark：CANDID
- Origin：China
- HS Code：84633000
- Production Capacity：3sets,Month
Description
≤1250Mpa
Drawing Passes
2 ~ 11
2 ~ 11
2 ~ 11
2 ~ 12
2 ~ 12
2 ~ 12
2 ~ 12
2 ~ 9
2 ~ 9
Max. Dia. Of Inlet Wire
2.8mm
3.5mm
4.2mm
50mm
5.5mm
6.5mm
8mm
10mm
12.7mm
Min. Dia. Of Outlet Wire
0.5mm
0.6mm
0.75mm
1.0mm
1.2mm
1.4mm
1.6mm
2.2mm
2.6mm
Max. Speed Of Drawing
~ 25m/s
~ 20m/s
~ 20m/s
~ 16m/s
~ 15m/s
~ 15m/s
~ 12m/s
~ 12m/s
~ 8m/s
Drawing Power
7.5~18.5kw
11~22kw
11~30kw
15~37kw
22~45kw
22~55kw
30~75kw
45~90kw
55~110kw
Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Technical support by e-mail.
