• Model NO.：DZT
• Specification：Standard
• Trademark：Datang
• Origin：China
• HS Code：84688000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DZT Specification Standard Trademark Datang Origin China HS Code 84688000 Production Capacity 50 Sets Per Month

Product Description

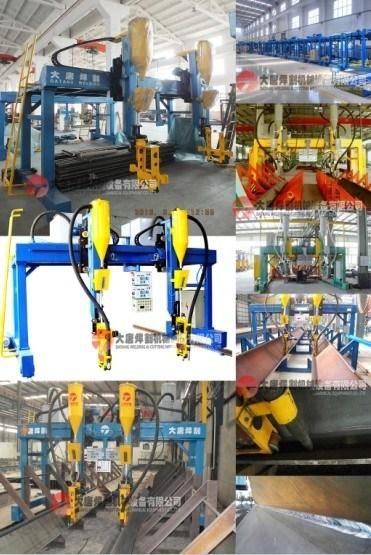

DZT type gantry welding machine

This machine adopts imported alternating frequency changer.
It has stable function and fast kickback function. This arc guiding rack is triple axis mechanical tracing way, to ensure the welding gun aim at the correct position. Mainframe and welder are operated together. It is easily operated and high quality.

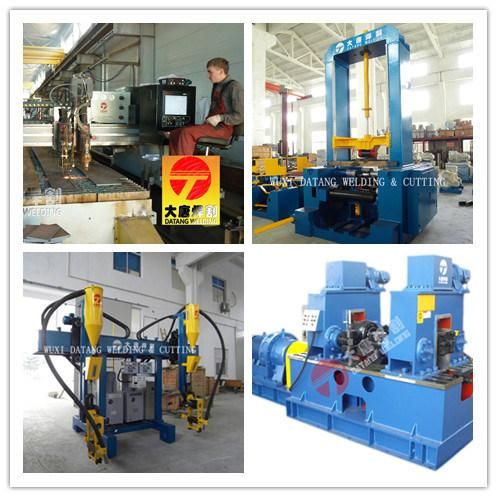

H-beam production line
Cutting-Assembling-Welding-Straightening

Customers' visiting

Specification	parameter
Height of web(mm)	200-2000
Height of flange(mm)	200-800
Length of H beam(mm)	4000-15000(can be designed as required)
Welder model	MZ-1000 SAW welding power, wire feeding machine, 2unit
Welding form	arc
Welding speed(m/min)	0.15-2.5
Back speed(m/min)	3
Rail distance(mm)	1400
Power (Kw)	13(welder is exclude)

• This machine is developed by our company according to H-beam boating shape welding special requirement and combining our company lots years experience, which cosists of trolley body, column, sliding board unit, traveling reducer, welding gun tracing arc guiding unit, welding flux recovery and treatment system, gas powered system, electrical control system and SAW welding machine and so on.

• This machine is developed by our company according to H-beam boating shape welding special requirement and combining our company lots years experience, which cosists of trolley body, column, sliding board unit, traveling reducer, welding gun tracing arc guiding unit, welding flux recovery and treatment system, gas powered system, electrical control system and SAW welding machine and so on.
