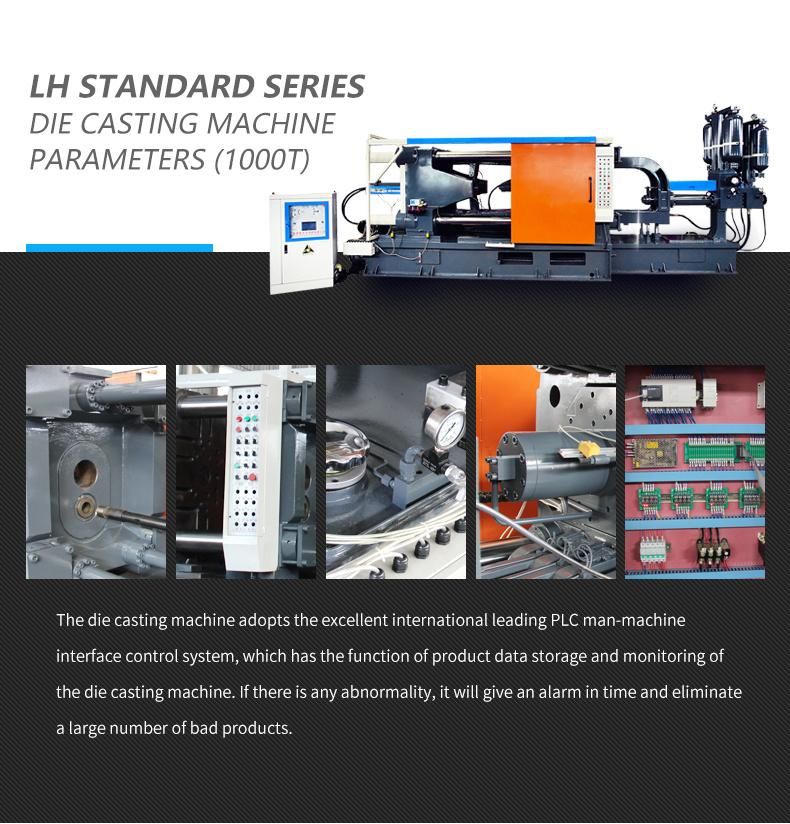

16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine

Bengbu Long Hua Die Casting Machine Co., Ltd.
  • Type：Cold Chamber Die Casting Machine
  • Technology：Die Casting Machine Vacuum Technology
  • Control System：Computer PLC Control
  • Configuration：High Configuration, High Quality
  • Die Casting Machine Type：Cold Chamber Die Casing Machine
  • Application：All Manufacturers of Non-Ferrous Metal Parts

Base Info

  • Model NO.：LH-160T
  • Hydraulic Valve：German Hydraulic Valve

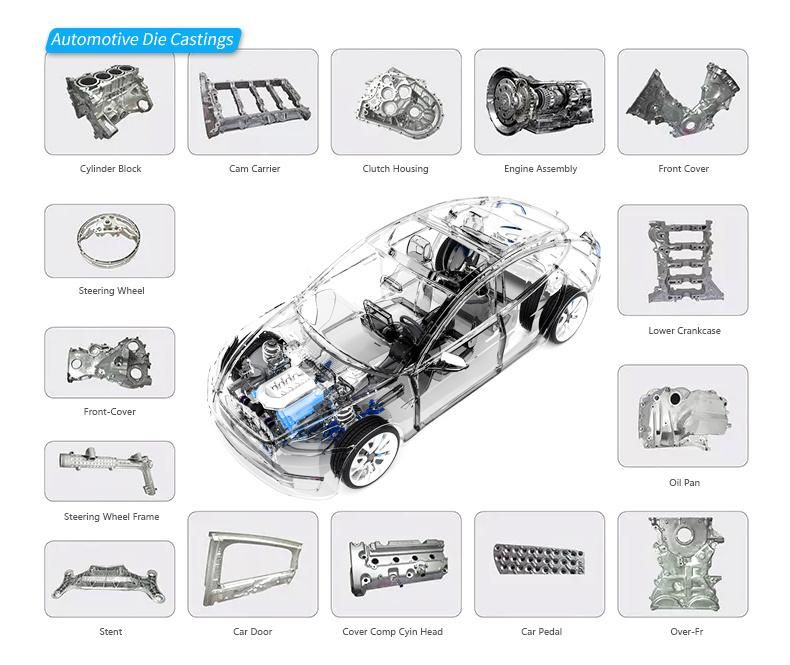

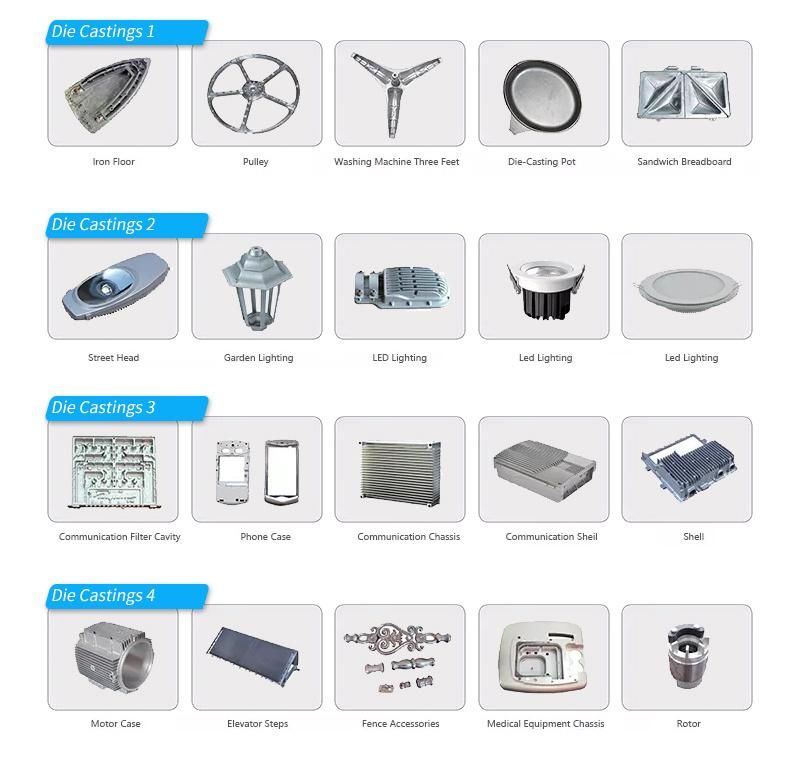

  • Usage：Lights, Cars and Motorcycle Accessories
  • Features：High Efficiency, Energy Saving, High Yield
  • Material：Die Casting Machine Carbon Steel
  • Transport Package：Customized
  • Specification：16*4.8*4.8
  • Trademark：longhua Die Casting Machine
  • Origin：China(Mainland)
  • HS Code：8454301000
  • Production Capacity：1set,Sets Per 3-Month

Description

Basic Info.

Model NO. LH-160T Hydraulic Valve German Hydraulic Valve Usage Lights, Cars and Motorcycle Accessories Features High Efficiency, Energy Saving, High Yield Material Die Casting Machine Carbon Steel Transport Package Customized  Specification 16*4.8*4.8 Trademark longhua Die Casting Machine Origin China(Mainland) HS Code 8454301000 Production Capacity 1set/Sets Per 3-Month

Product Description



Product Description16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic MachineSpecifiction16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine

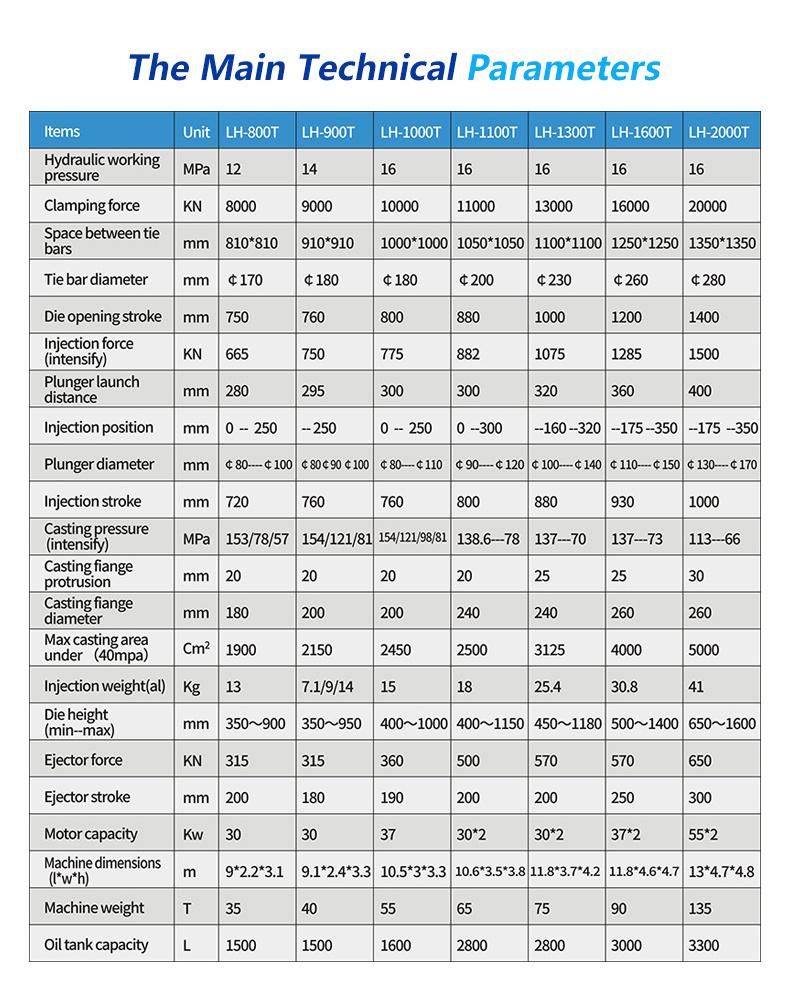

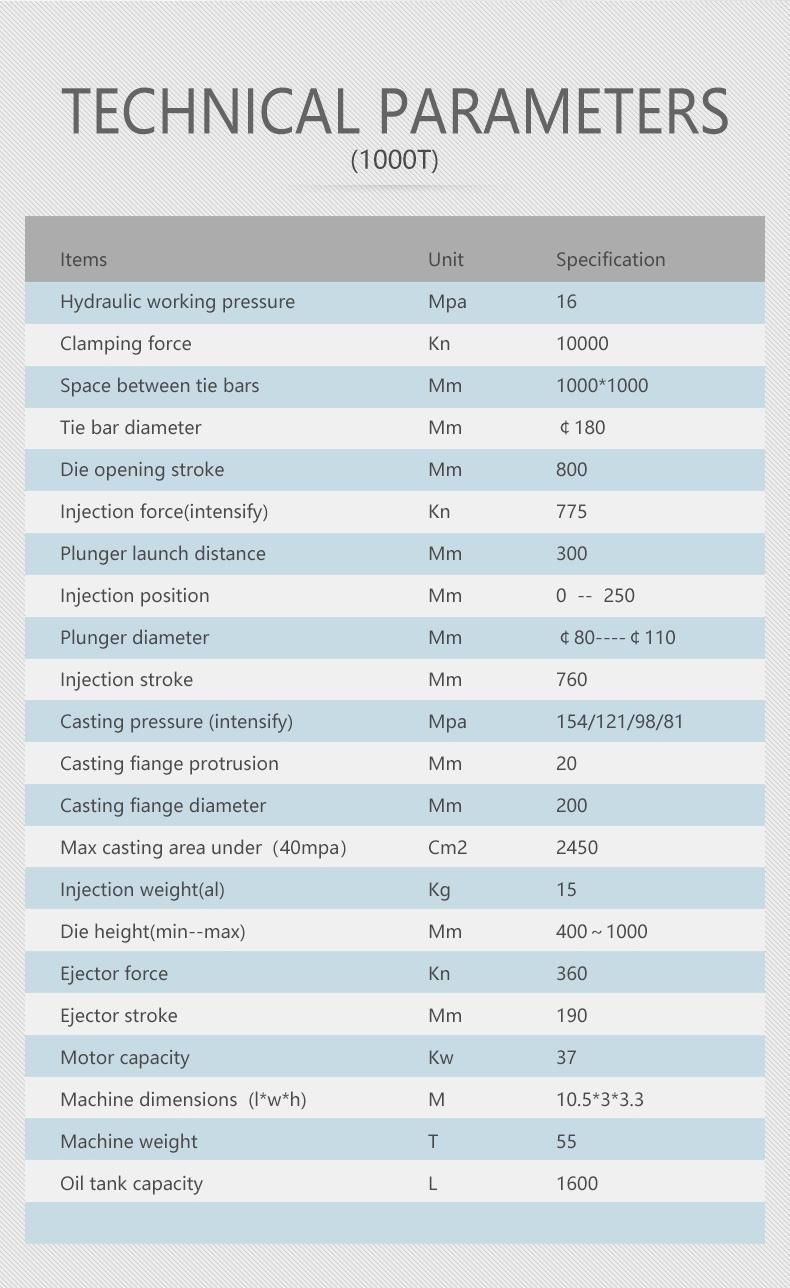

ITEMSUNITSPECIFICATION
HYDRAULIC WORKING PRESSUREMPA16
CLAMPING FORCE               KN10000
SPACE BETWEEN TIE BARSMM1000*1000
TIE BAR DIAMETERMM¢190
DIE OPENING STROKEMM730
INJECTION FORCE(INTENSIFY)                  KN720
PLUNGER LAUNCH DISTANCEMM295
INJECTION POSITIONMM0  --  250
PLUNGER DIAMETERMM¢80----¢110
INJECTION STROKEMM760
CASTING PRESSURE (INTENSIFY)MPA135
CASTING FIANGE PROTRUSIONMM20
CASTING FIANGE DIAMETERMM200
MAX CASTING AREA UNDER (40MPA)CM22250
INJECTION WEIGHT(AL)KG14
DIE HEIGHT(MIN--MAX)MM400~950
EJECTOR FORCEKN310
EJECTOR STROKEMM180
MOTOR CAPACITYKW30
MACHINE DIMENSIONS  (L*W*H)M9.1*2.8*3.5
MACHINE WEIGHTT45.9
OIL TANK CAPACITYL1700
We reserve the right to make any technical improvement without further notice16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic Machine16*4.8*4.8 Cold Chamber Vacuum Price Pressure Die Casting Automatic MachineFAQ
1. who are we?
We are based in Anhui, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Die Casting Machine/Robot For Die Casting Machine,Compressor,Die Casting Machine Parts,Mould And Castings,Melting Furnace

4. why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 39 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
