• Model NO.：HLT
• Pitch Distance：5-15mm
• Application：for Auto Exhaust Bellows, Flexible Metal Hoses, an
• Double Layer Wall Thickness：0.3-1.0mm
• Width Strips：100-471mm
• Transport Package：Standard Seaworthy Packing
• Specification：ISO9001
• Trademark：HLT
• Origin：Jiangsu Wuxi
• HS Code：84819010
• Production Capacity：5000PC,Year

ID

DN50

DN65

DN80

DN100

DN125

DN150

DN200

DN250

DN300

Single wall thickness

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.2

1.5

Double layer wall thickness

0.25*2

0.3*2

0.4*2

0.50X2

0.60X2

0.70X2

0.80X2

0.90X2

1.0X2

The parts will go with the machines: The molds for DN50,65,80,100,125, 150,200,250,300mm

5.DN200-630 Hydraulic Forming Machine

Diameter: DN200-630mm

No. of layers: single or double layers

Wall thickness: Single layer1.0-3.0mm

Double layers:0.8*2-1.6*2

Type of the bellows: annular bellows

Control: PLC control, manual or automatic control

Straight tube length: ≤1800mm

Expanding medium: emulsified liquid

Forming speed:8-28seconds per convolution

Molds and water injection head: DN200,250, 300,350,400,450,500,550,600mm

Hydraulic Hose Making MachineMachine Type No.HLT-H-150Technical DataApplication of the hose: water, oil, steam
Size range: DN32 up to DN150
Wall thickness: 0.2-0.3mm
Production speed:2.5~3.5m/min
Strip thickness: 0.18-0.3mm
Material: sus304, 321 and 316L
Outer dimensions:15000*1100*1700Packing detailsPlywood box and standard palletMOQ1 setWarranty1 yearPayment termsT/T, L/C, D/P, Western union

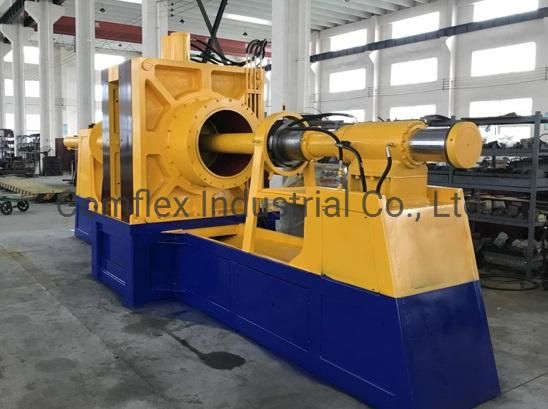

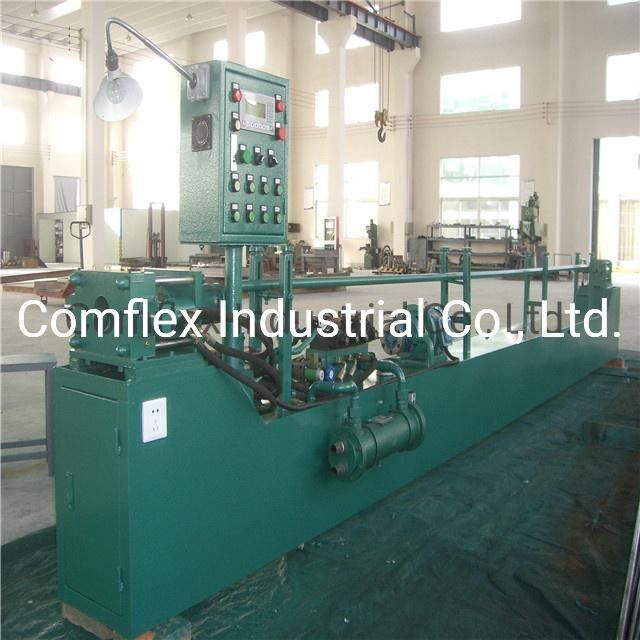

Picture of machine


DN200- DN630

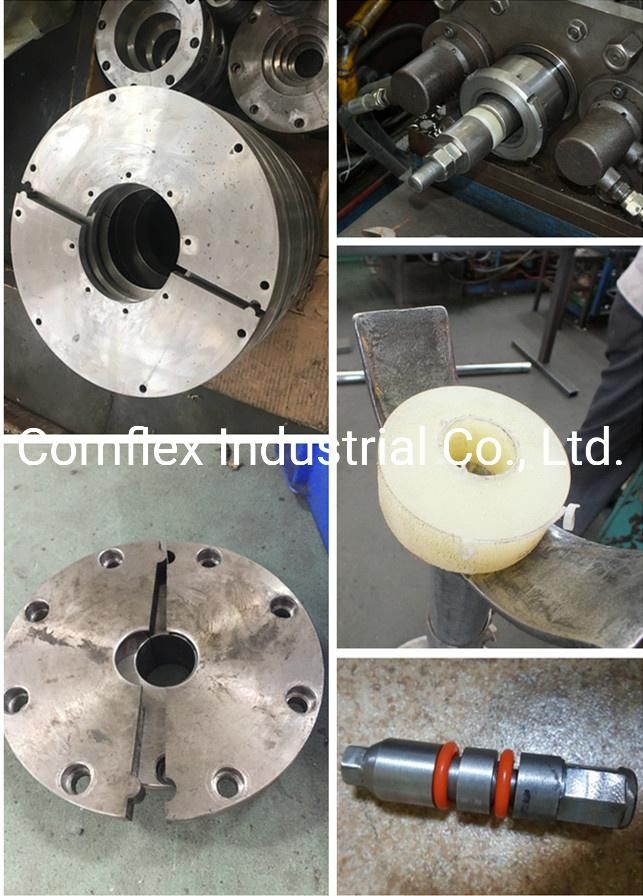

Spare Parts of Machine

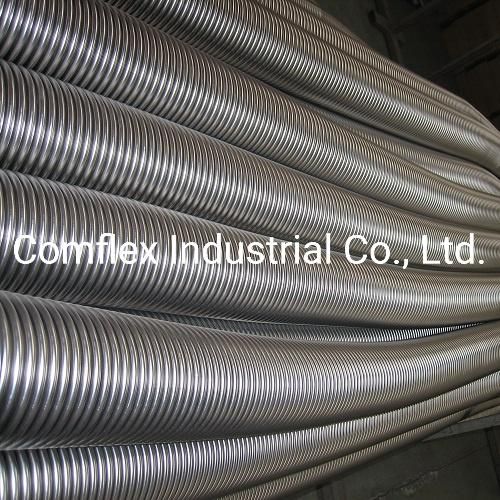

Products show


Customer's visit


Tecnique Communication

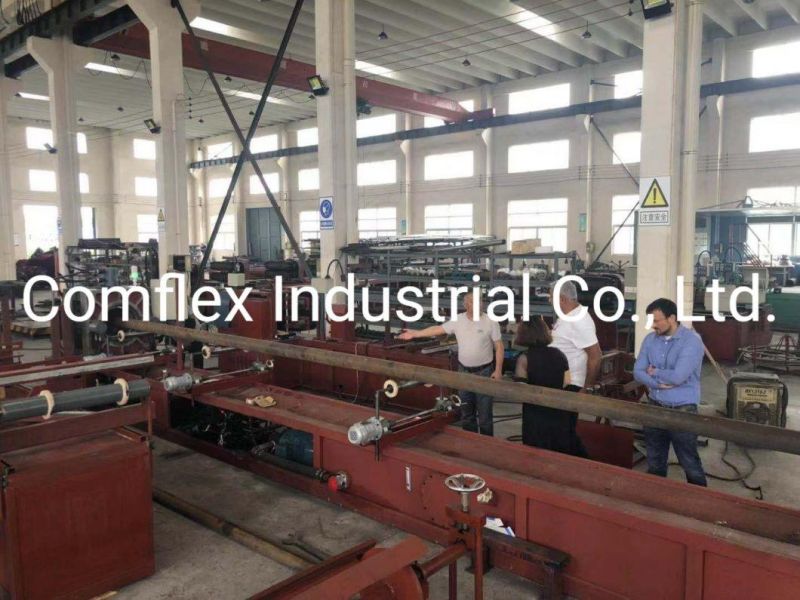

Customer visit our factory


Related machines

DN10-150 Tube welding machine

Wall thickness d³0.18mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit

DN15-100 Elastomer forming metal hose making machine

Omega shape

1). Diameter: DN12mm-DN100mm
2). Mill Length: 4m-8m
3). Hydraulic pressure: 3.5-4.5MPa
4). Operation mode: manual/automatic

Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose ,chemical hose, etc..Annular and corrugated metal hose: ID8 till ID600 on different machine.

Package Pictures


Our service
 Warranty period of one year
 standard seaworthy package
 Engineers available to service machinery oversea

FAQ for hose making machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3.Wall thickness
