• Model NO.：Z427
• Certification：CE, ISO9001
• Type：Sand Casting
• Color：Customized
• Use：Foundry Industrial
• Type of Sand：Clay Sand(Green Sand)
• Transport Package：Wooden Box, Steel Structure or Customized
• Specification：CE ISO
• Trademark：bestech
• Origin：Qingdao, China
• HS Code：8474809090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. Z427 Certification CE, ISO9001 Type Sand Casting Color Customized Use Foundry Industrial Type of Sand Clay Sand(Green Sand) Transport Package Wooden Box, Steel Structure or Customized Specification CE ISO Trademark bestech Origin Qingdao, China HS Code 8474809090 Production Capacity 50 Sets Per Month

Product Description

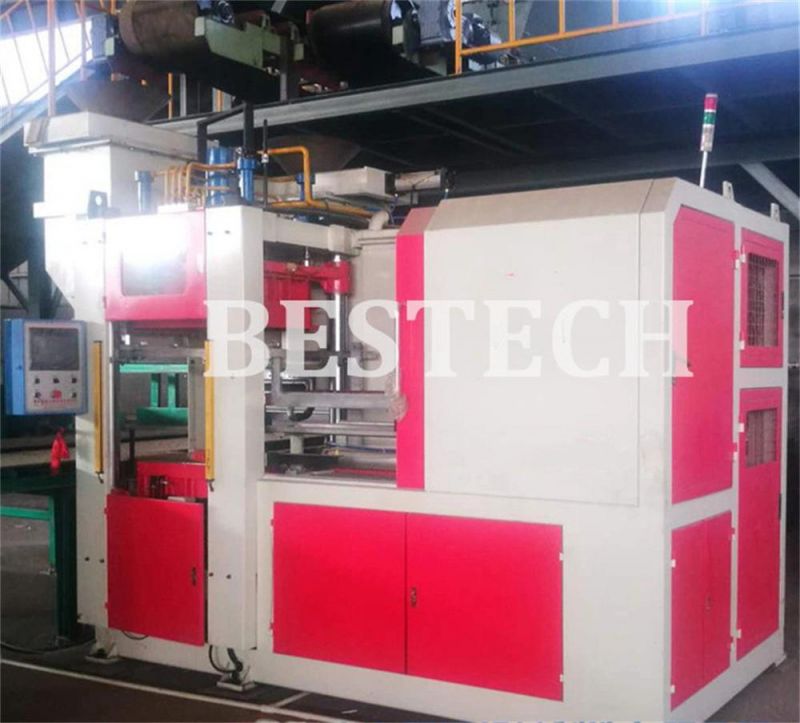

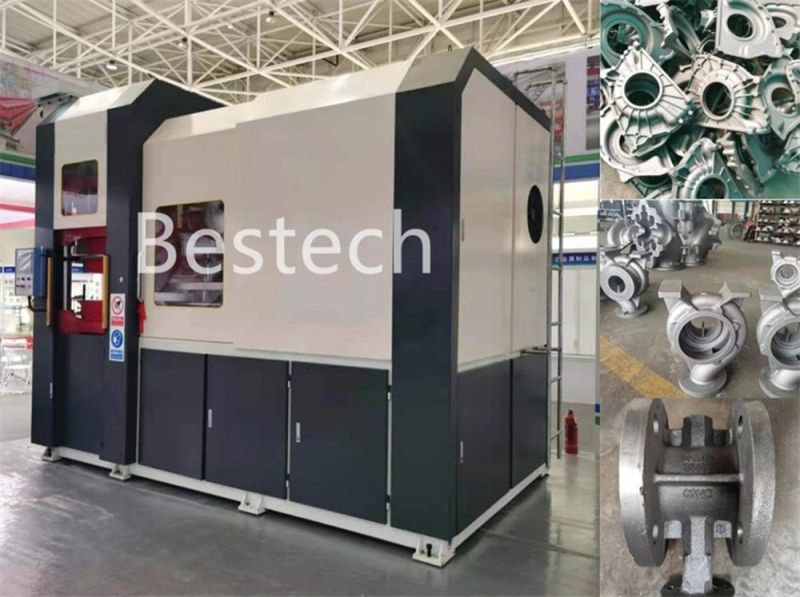

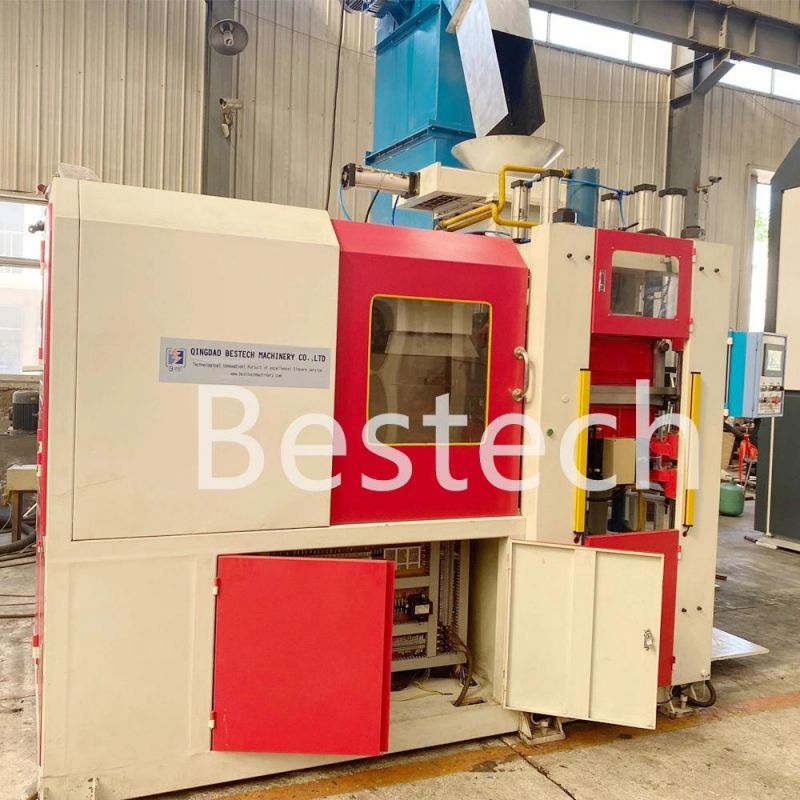

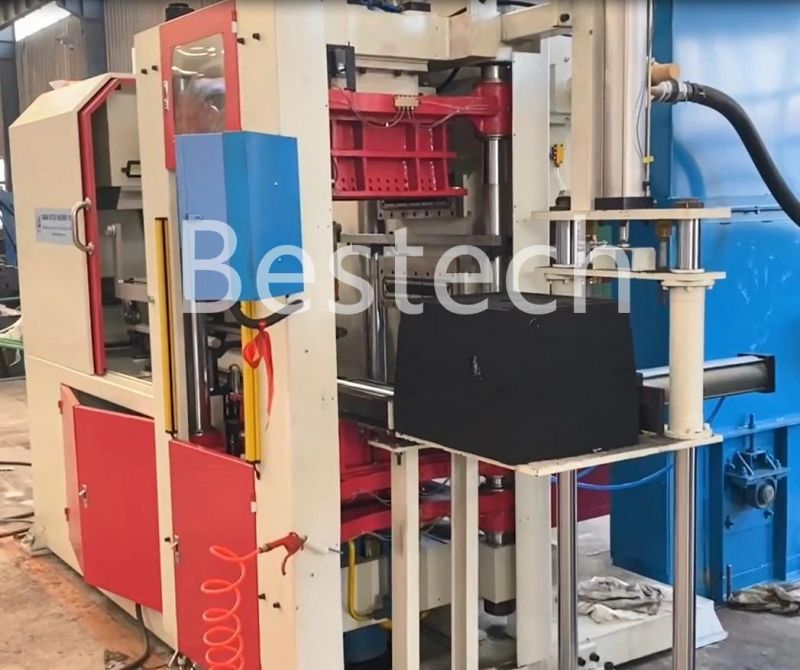

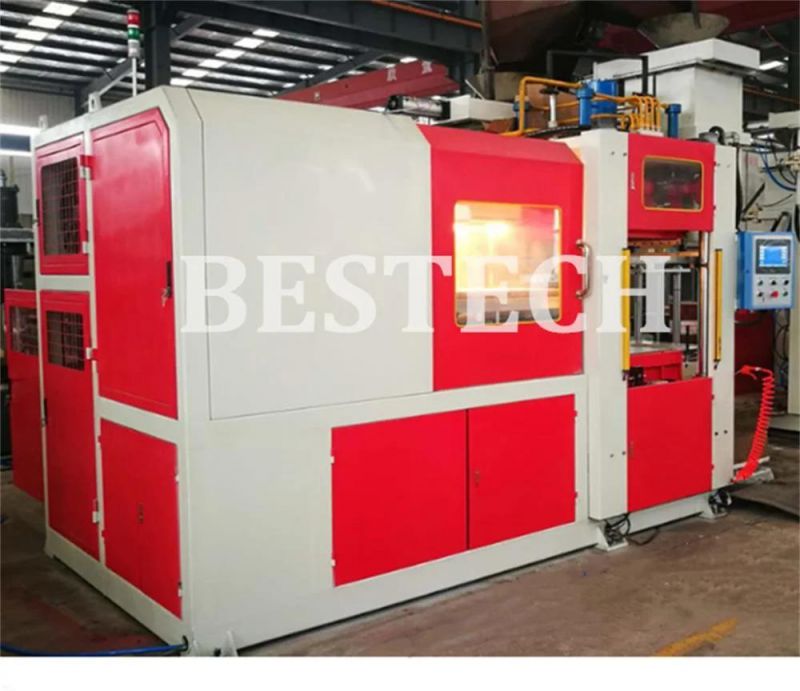

Green Sand Automatic Flaskless Sand Molding Machine Moulding Line

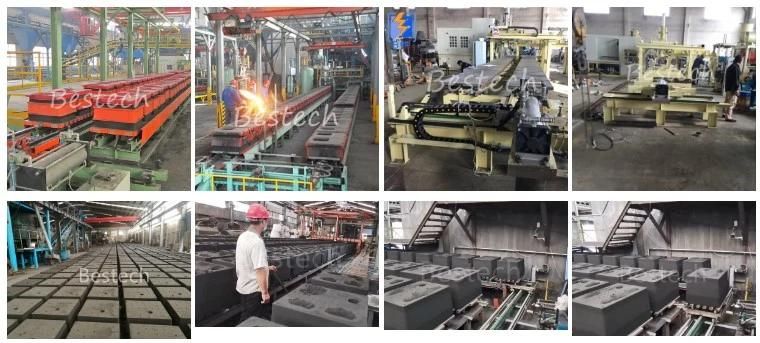

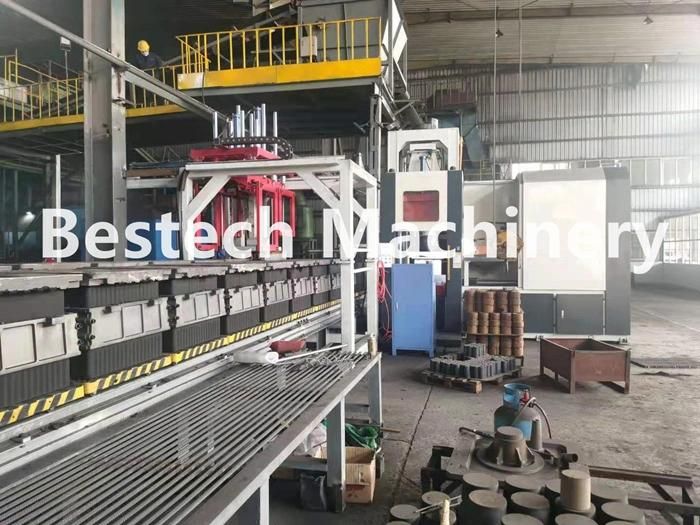

Full Automatic Horizontal Flaskless Molding Line is mainly suitable for moulding production of valves, mechanical parts, automobile parts, hydraulic parts, pipe fittings and fastening these parts, also suitable for ductile iron,gray iron, malleable cast iron and non-ferrous metails these materials,with advantages of high production efficiency, low investment, quick effect, energy-saving and environmental protection. This moulding line mainly consists of moulding machine, pouring line, cooling line, castings conveying system, and electric control, hydraulic control and pneunatic control system, which can realize full automatic control of sand feeding, moulding, pouring, cooling and castings movement.

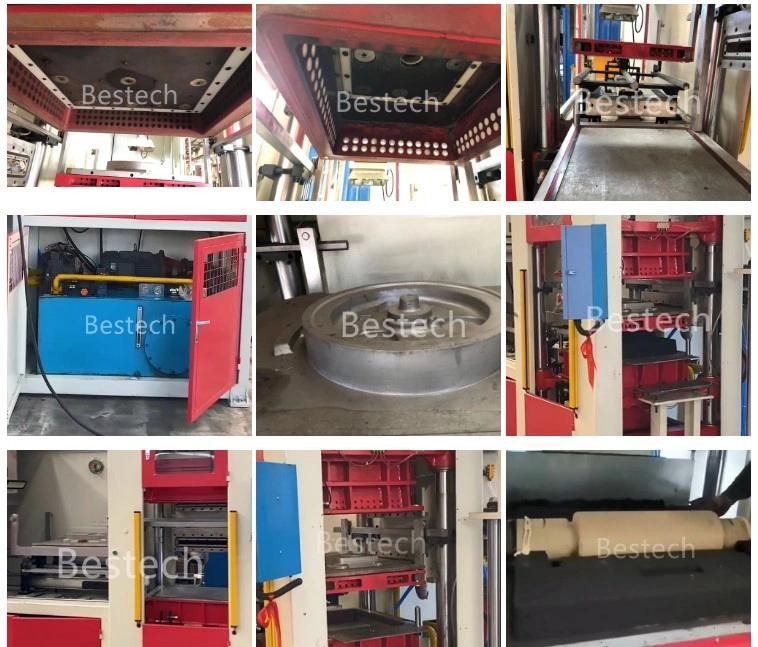

Main characteristics automatic sand molding machine as follows:1. Horizontal parting, suspended shot sand, horizontal casting.Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.2. Adjustable castings height and compaction pressureThe user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.3. Convenient template replacement.Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.4. Failure displayThe fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.5. High reliability of hydraulic, pneumatic and electrical system.The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.6. Easier, more convenient and safer for core settingAll types of equipment manufactured by the company adopt a stable and reliable safety defense system.7. Adopt servo hydraulic system to save energy.With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.

technical parameter of green sand automatic molding machine:

Parameter/Model	XGA-Z425	XGA-Z426	XGA-Z427	XGA-Z428	XGA-Z4210
Sand Mold Dimension (mm)	500*400*120-150 550*450*120-150	610*508*130-180 660*508*130-180	700*600*130-180 600*600*130-180	800*700*200-250 800*800*200-250	1000*800*200-280 1000*1000*200*280
Productivity (Second/Mould)	36-40	40-45	40-45	50-55	55-60
Air pressure (Mpa)	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
Air consumption (m³/Min)	1.6	2	2.2	2.5	2.8
Oil pressure (Mpa)	8.5	10.6	9.2	8.9	8.5
Total power (Kw)	15	18.5	22	22	30
Sand consumption (T/h)	8.6-12	10.5-17	12-22	23-30	30-40

Our Service

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
