• Model NO.：XGX5
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Control Mode：CNC Control
• Diameters Available：50-1000mm
• Cutting Speed：30-6000mm,Min
• Temperature：-5°~50°
• Transport Package：Plywood Case
• Trademark：Nakeen
• Origin：Dezhou
• HS Code：84569010
• Production Capacity：40 Set,Year

Model ParametersFive-axis Intersection Line Cutting MachineDiameters Available50-8000MMCutting MaterialCarbon SteelLongitudinal  moving speed mm/min(Maximum)6000Cutting Speed30-6000mm/minAmount of axis4Rotary Axis for the pipeInfinite rotatingTorch up-down span (mm)1-300Effective Cutting Length of X-axis6000mm(can be customized)Z-axis350MMY-axisUnlimited rotary (pipe rotary)A-axis±60°(torch moves around X-axis)B-axis±65°(torch moves around Y-axis)Oblique crossing angle10°-100°Length Positioning accuracy0.3mm/2000mmBus Positioning accuracy0.2mm/1000mmPrecision tolerance0.2°-360°Beveled angle-60°-  +60°Smallest crossing angle 20Chuck3-claw chuckHand support roller5 group (can be customized)Leveling wayBy handTemperature-5ºC-50ºCPower supply220V 50HZ 6KW
Technology standard---
1.The system adopted is developed for the processing of welding machine and pipe cutting machine. It can calculate and automatically generate processing codes.It can generate the final processing codes through the technologic parameters settings and post-processing. Through this process, a lot of manpower and time can be saved, the working efficiency is improved.Meanwhile,it can make the pipe cutting precision higher and welding more steadily.
2.Simple programming for customers.Customers only need to input according parameters,then the cutting procedure of man pipe and branch pipes can be generated automatically .
3.Rich image gallery including arbitrarily connected tee pipe(main pipe and bran pipes),main pipe cutting off,and arbitrary polygons.Circular processing is supported.
4.Users' processing track can be generated by programming teaching.
5.Display of three-dimensional graphics track
6.Graph splicing function .Input the parameters at one time, and all the processing codes are generated directly.
7.Functions of cutting gap compensation and track returning function.
8.Function of memory recovery(after power failure and breakpoint)
   9. High reliability and capacity to prevent plasma high voltage interference , lightning and surging.
   10.Support both flame and plasma cutting modes
11. Chinese and English interface

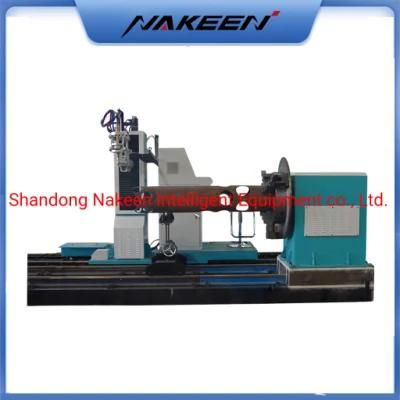

Product picture

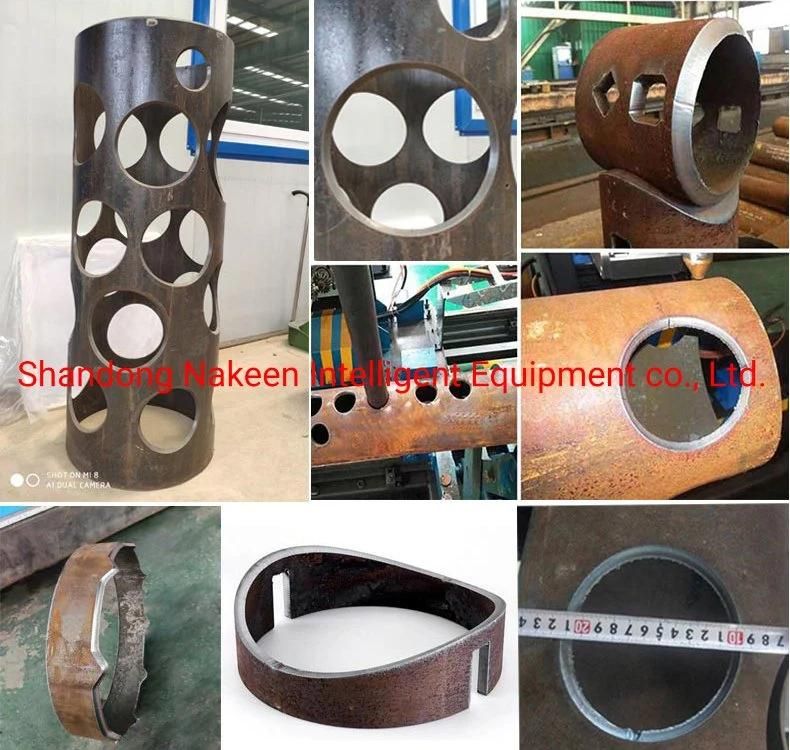

Cutting sample

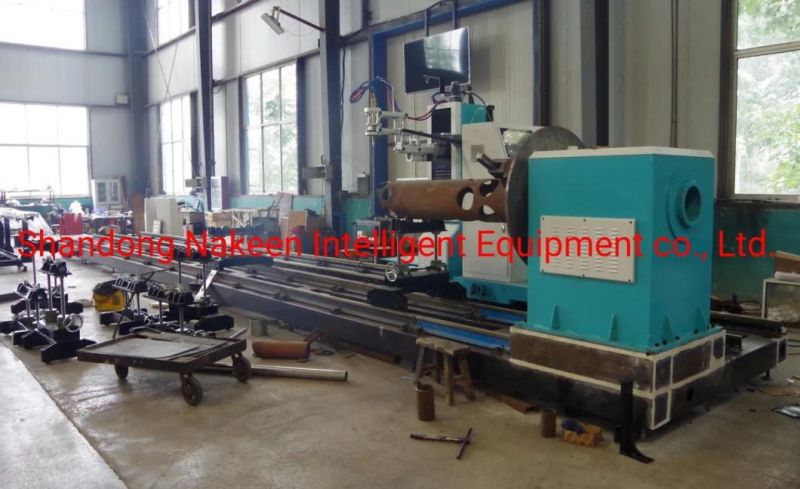

Workshop picture



Company introduction---

Dezhou Nakeen Industry Automation Equipment Co., Ltd is one of the earlier company in the industrial
digital control technology development and product manufacturing.Nakeen Industry is located in Tianqu
Industrial Park,Dezhou City, Shandong Province,which is one of the most powerful cutting and welding
equipment manufacturer in Shandong Province.
Nakeen industry build strong R & D team and has won eight national patents.Among these,Digital
controlled drilling machine get national invention and new type patent; Portable CNC cutting machine
Antire sistance to trip equipment,Maintenance free self-positioning torch lifter body,CNC cutting machine
electronic clutch device and Scaffolding welding equipment machine get national utility model patent.
These self-patented technology resolve many industry problems firstly resolve many industry problems and widely emulated by industry peers. With independent research and development,at the same time,
Nakeen industry remain its own patent open for industry peers and upstream suppliers for free using,in order to promote industry technology development.
Nakeen industry currently has a full line of CNC cutting equipment product line and CNC welding transfer,
CNC drilling machine, multi-axis industrial robots, robot control systems.

Nakeen industry lifelong philosophy:Technology will change "Made in China".
Choose Nakeen industry,"All for you to improve the effectiveness"
