Electrostatic Powder Coating Gun for Distributors

Hangzhou Feifu Import and Export Co., Ltd.
  • After-sales Service：Yes
  • Warranty：12 Moths
  • Type：Powder Coating Machine
  • Coating：Powder Coating
  • Substrate：Steel
  • Certification：CE, ISO

Base Info

  • Model NO.：COLO-191STH
  • Condition：New
  • Item：Electrostatic Powder Coating Gun
  • Packaging：Carton,Wood Case
  • Delivery：3 Working Days After Payment
  • Name：Electrostatic Powder Coating Gun
  • Power Range：220V
  • Frequency：50Hz
  • Product：Electrostatic Powder Coating Gun
  • Application：Powder Coating
  • Packing Weight：15kg
  • Transport Package：Carton
  • Specification：CE ISO
  • Trademark：COLO
  • Origin：China
  • HS Code：8424899990
  • Production Capacity：1000sets,Month

Description

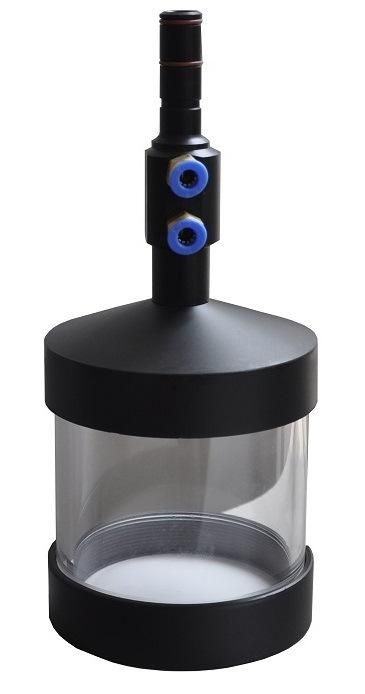

Electrostatic Powder Coating Gun for DistributorsCOLO-MIN 03 Powder Cup,
Size: Dia10xHeight10cm,
Can hold 1 pounds powders.
With self-fluidization functions

Technical Specifications of Electrostatic Powder Paint Equipment
Electrical Data
MODELCOLO-191S-B
Gun Weight 500G
Rated output voltage 24VDC
Input voltage    -200KV
Maximum output current 180Ua(max)
Maximum output voltage0-100K(adjustable)
Pneumatic data
Maximum powder injection 600g/min
Polarity negative
Maximum input-air pressure 10kg/cm
Optimum input-air pressure6kg/cm
Optimum input-air pressure4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air   0.1ppm
Maximum compressed-air consumption13.2 m3/h
Temperature range in use -10 ºC+50 ºC
 Contact us for more product detail  !!!
