• Model NO.：WFP-1000
• Power Source：Electric
• Certification：CE, ISO
• Facing Range：160-1000mm
• Mounting Range：158-820mm
• Tool Feed Stroke：102mm
• Tool Holder Swivel Angle：+-30°
• Rtation Speed：0-33r,Min
• Operation Type：Pneumatic,Electric,Hydraulic
• Seal Surface Type：RF,Rtj
• Feature：Compact Structure,Light,Easy Carry
• Process：Flat Face,Water Line,Continuous Groove,Rtj Groove
• Transport Package：Wooden Box
• Specification：500*320*290
• Trademark：wellnit
• Origin：China
• HS Code：8461909000
• Production Capacity：20sets,Month

ModelSpecFacing Range(O.D) mmMounting Range(O.D)mmTool Feed Stroke(mm)Tool Holder Swivel AngleRoration SpeedWFP61050-61050-50850+-300-42r/min 1000153-1000145-813102+-300-33r/min 1650500-1650500-1500102+-300-22r/min 2000762-2000604-1830102+-3600-20r/min 30001150-30001120-2800102+-3603-12r/min



Features:

• Quick set adjustable clamping jaws
• Lightweight construction
• Quality for demanding conditions
• Swivel tool post for grooves, RTJ flanges and bevels
• Quick set independent bases
• Continuous groove geared facing and boring feeds
• Latest linear technology for durability and repeatable accuracy
• High torque drive with only a 60 dB noise level
• Hydraulic,Electric,Pneumatic,all  is available

POWER SUPPLIES

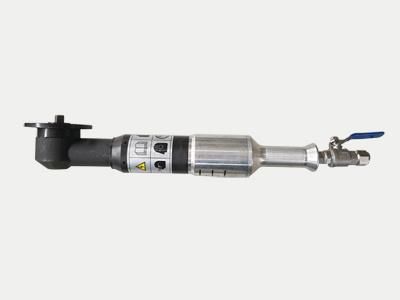

 Pneumatic:
Air requirement:1500-3000L/min @0.63-0.8Mpa
Power:2HP,3HP,4HP
Double motor for big model or heavy duty

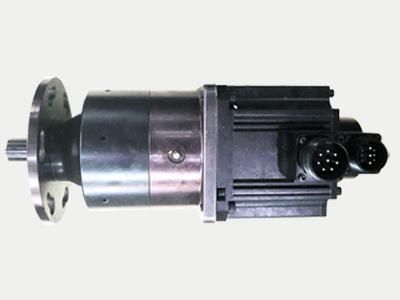

NC:
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power:2.0KW or 3.0KW
Double motor for big model or heavy duty

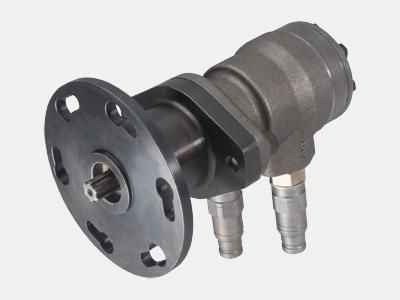

Hydraulic:
Hydraulic requirement:28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure:13MPa
Rated flow:28L/min
Max.Torque:380NM

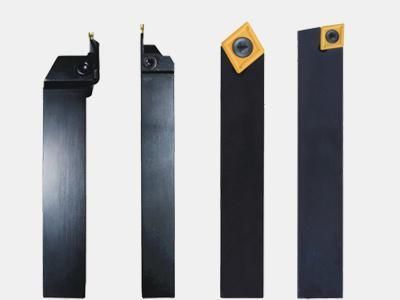

Insert style Tooling

Material:Holder HSS ;
Insert: HSS-Co or Carbide


Type:Grooving,Facing,

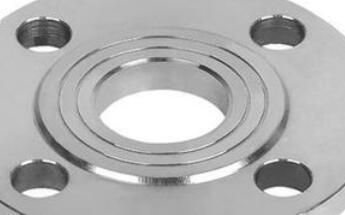

Machine process surface  show:




Company introduction:

Order Guide
Before you place order to us, please let us know the following information:

• Choose the right Model
• Confirm your electric power supply ( Voltage, frequency and phase)
• Confirm the beveling angel required
• Confirm the welding joint required (U, V, Double V or Compound preparation)
• Advise your pipe material ( Carbon steel, stainless steel or others)
• Other special demands about machine
• The spare parts needed
• Advise pipe wall thickness (Important)
