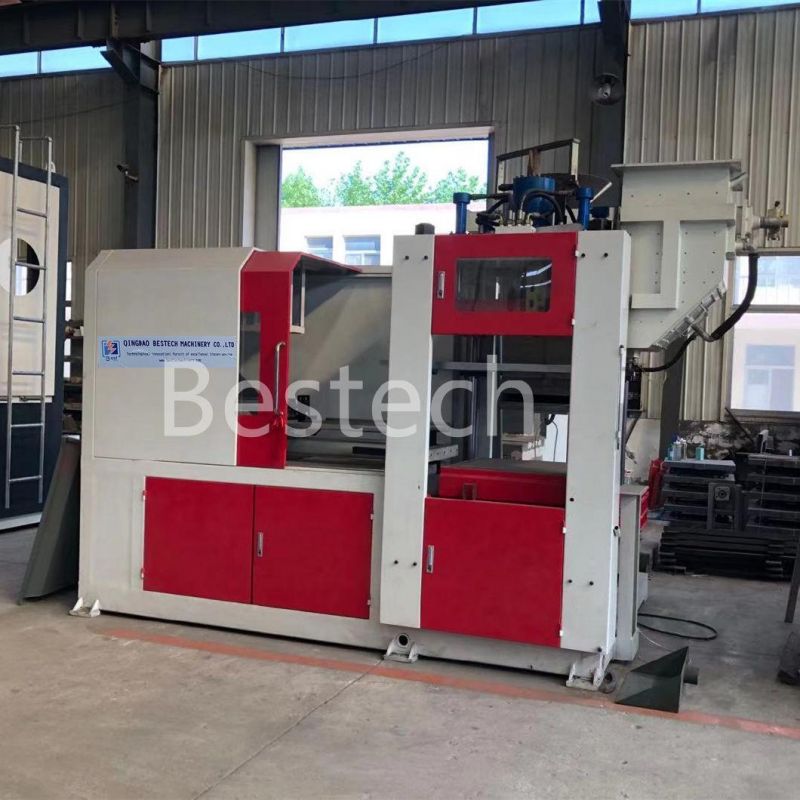

The Advantages of Automatic Horizontal Frequency Conversion Molding Machine
Qingdao Bestech Machinery Co., Ltd.- After-sales Service：Oversea Service
- Type：Foundry Casting
- Forging Forming Method：Hydraulic Molding
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：ISO9001, CE
Base Info
- Model NO.：Z4210
- Warranty：12 Months
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Usage：Foundry Industrial
- Color：Customized
- Transport Package：Wooden Box or Nude
- Specification：customized
- Trademark：BESTECH
- Origin：Qingdao, China
- HS Code：8474809090
- Production Capacity：300sets, Year
Description

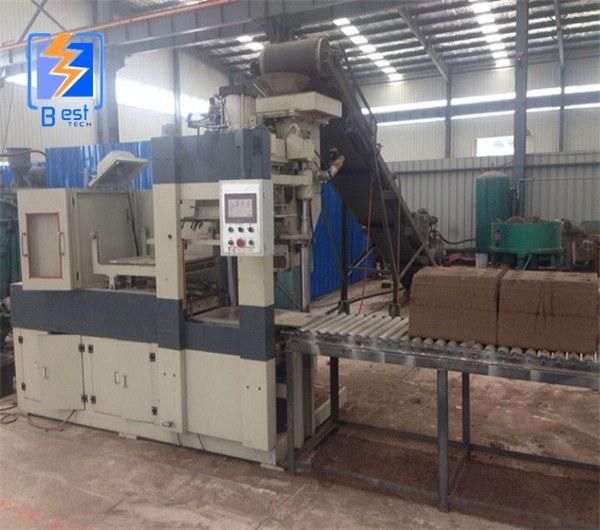

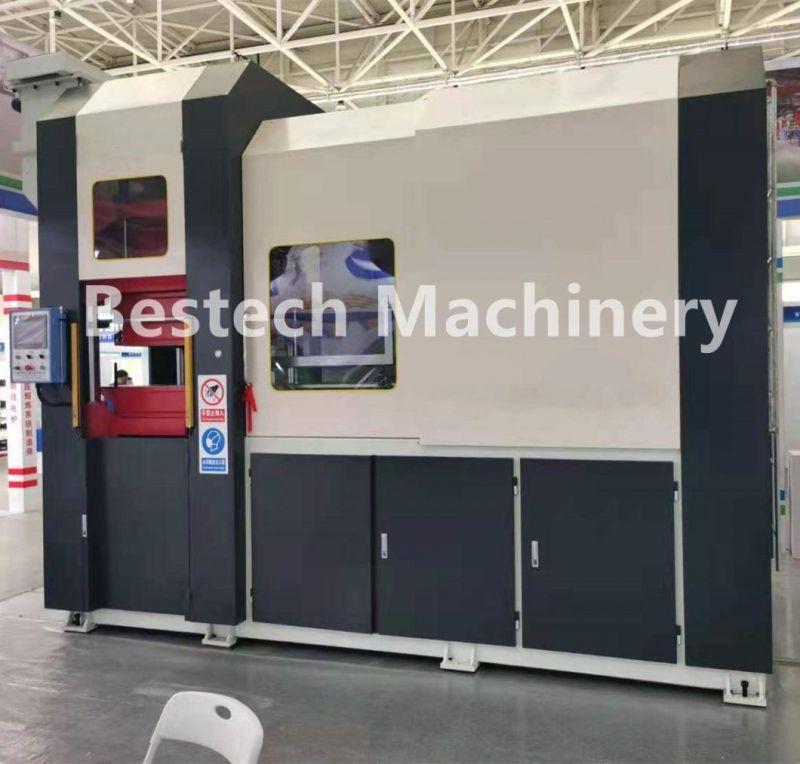

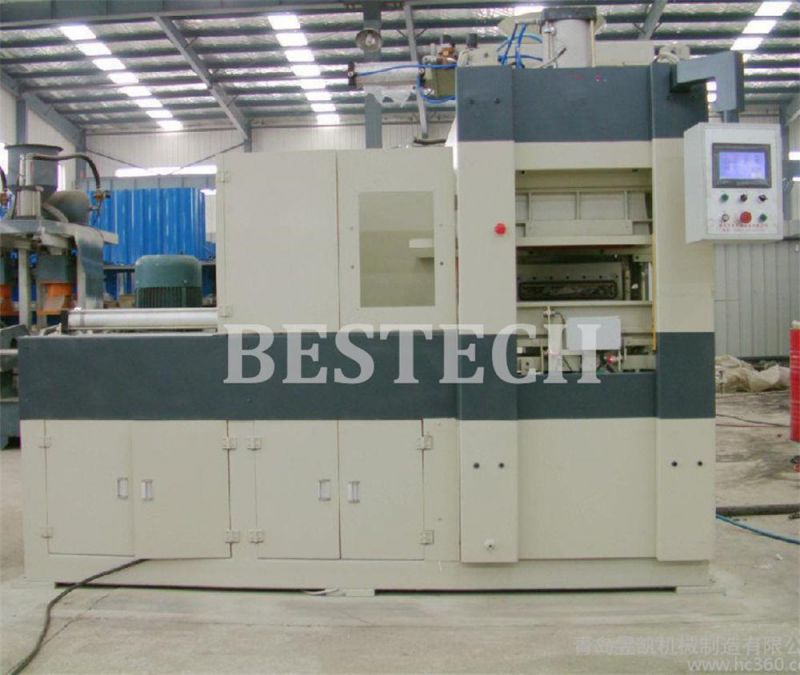

Main characteristics automatic sand molding machine as follows:1. Horizontal parting, suspended shot sand, horizontal casting.Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.2. Adjustable castings height and compaction pressureThe user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.3. Convenient template replacement.Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.4. Failure displayThe fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.5. High reliability of hydraulic, pneumatic and electrical system.The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.6. Easier, more convenient and safer for core settingAll types of equipment manufactured by the company adopt a stable and reliable safety defense system.7. Adopt servo hydraulic system to save energy.With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.technical parameter of green sand automatic molding machine:
| Parameter/Model | XGA-Z425 | XGA-Z426 | XGA-Z427 | XGA-Z428 | XGA-Z4210 |
| Sand Mold Dimension (mm) | 500*400*120-150 550*450*120-150 | 610*508*130-180 660*508*130-180 | 700*600*130-180 600*600*130-180 | 800*700*200-250 800*800*200-250 | 1000*800*200-280 1000*1000*200*280 |
| Productivity (Second/Mould) | 36-40 | 40-45 | 40-45 | 50-55 | 55-60 |
| Air pressure (Mpa) | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Air consumption (m³/Min) | 1.6 | 2 | 2.2 | 2.5 | 2.8 |
| Oil pressure (Mpa) | 8.5 | 10.6 | 9.2 | 8.9 | 8.5 |
| Total power (Kw) | 15 | 18.5 | 22 | 22 | 30 |
| Sand consumption (T/h) | 8.6-12 | 10.5-17 | 12-22 | 23-30 | 30-40 |
