• Model NO.：HT
• Wire Diameter：0.8-2.5mm
• Welding Width：600-2000mm
• Rated Capacity：65kvax4
• Dimensions：3350X1800X1400mm
• Certification：ISO9001

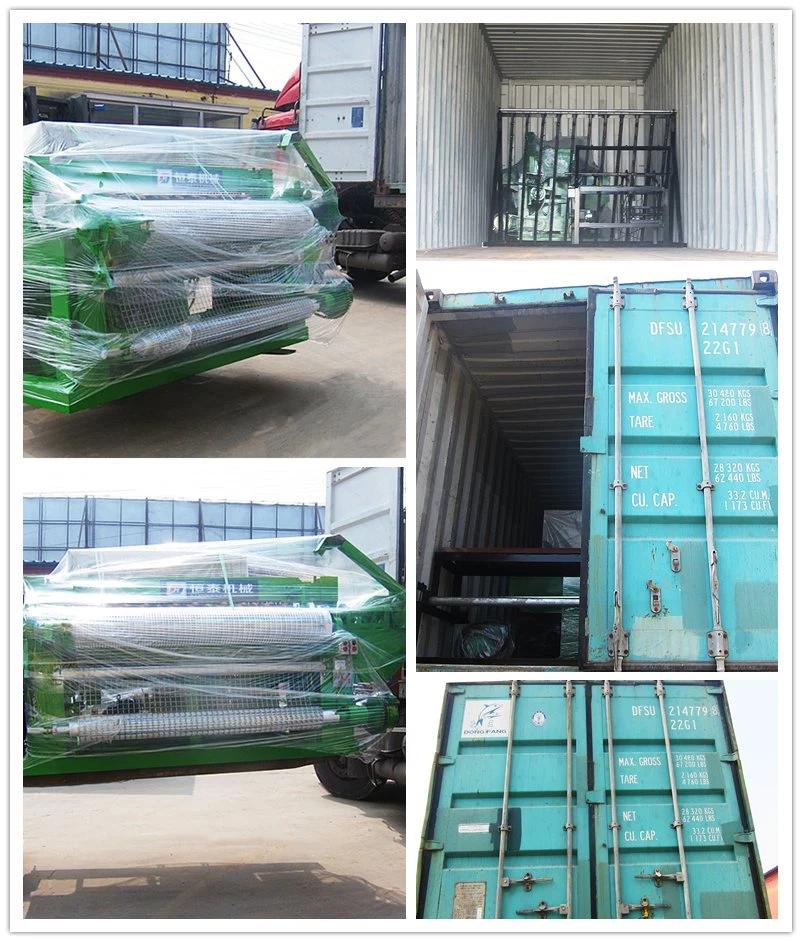

• Transport Package：Plastic Bag, Also Can Made as Your Request
• Specification：wire diameter: 0.8-2.5mm
• Trademark：hengtai
• Origin：China
• HS Code：8463300000
• Production Capacity：20 Sets,Month

Size of mesh (mm)
12.7-101.6 (1/2"-4")
Width (mm)
914.4-1219.2 ( 12"-48")
Diameter of wire (mm)
Dia.0.63-Dia.2 ( BWG23-BWG14)
Max. rolled net size (mm)
120 (400')
Welding speed ( mesh/minute)
65 ( radia)
Power
380/220V
50-60HZ
50KWAx4
Outside size(mm)
2600x1700x1350

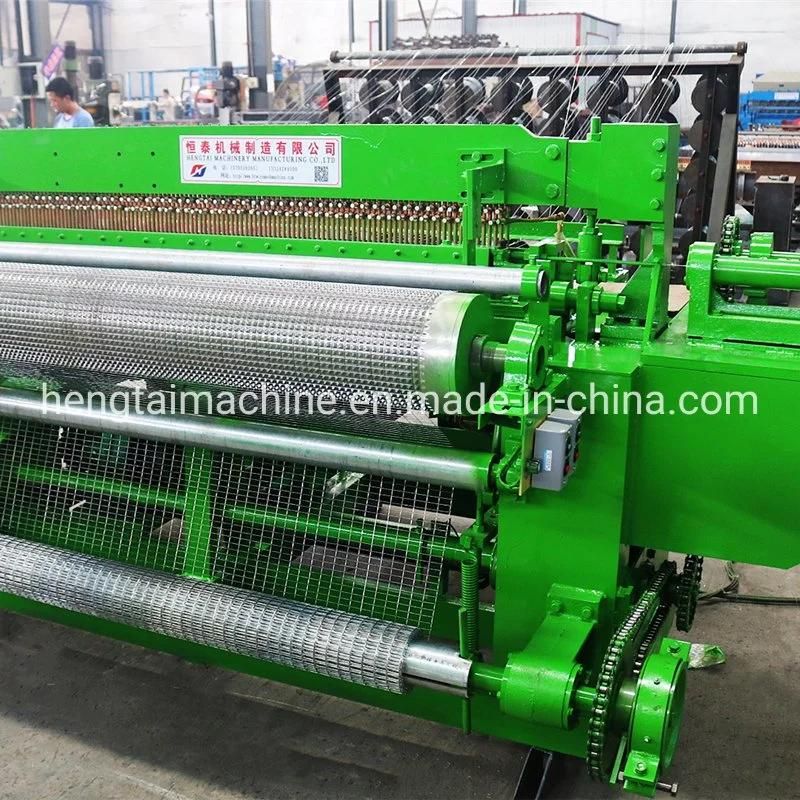

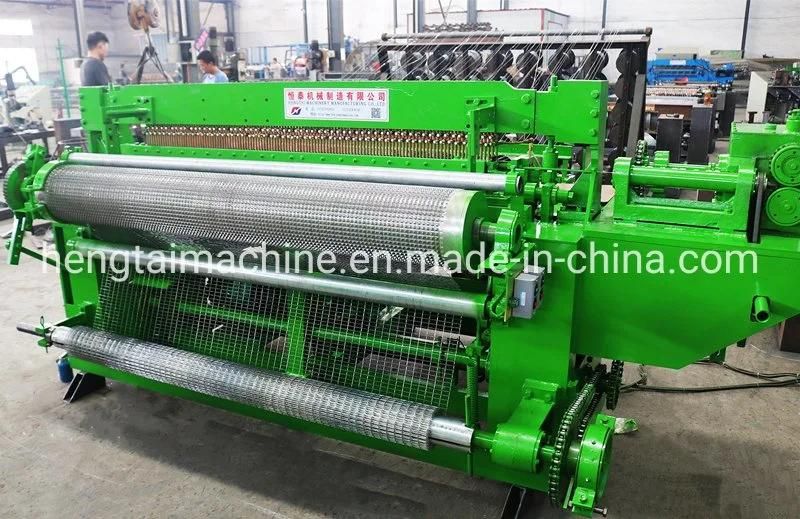

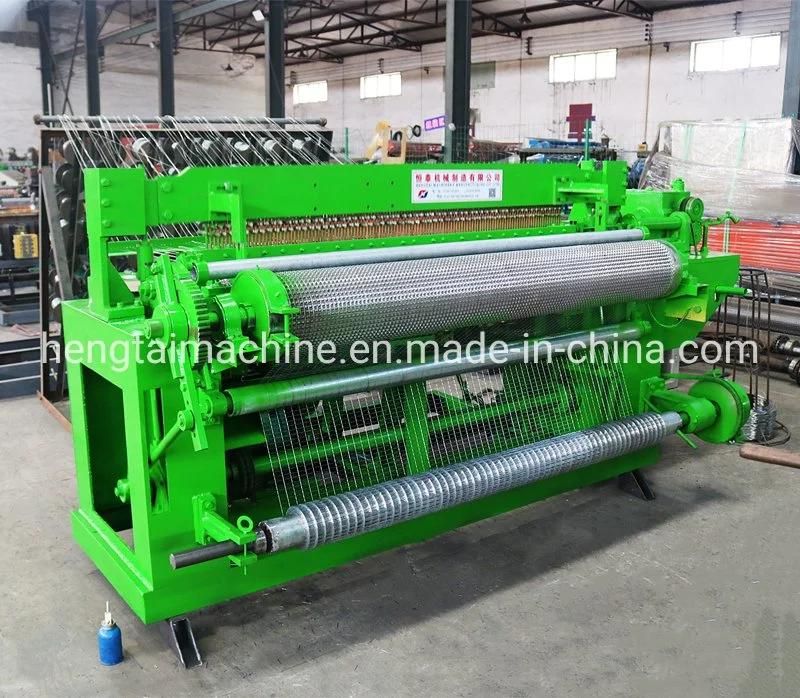

Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.
Size of mesh (mm)
25.4-152.4 (1"-6")
Width (mm)
1219.2,1524,1828.8 (48", 60", 72")
Diameter of wire (mm)
Dia.1.07-Dia.2 ( BWG19-BWG14)
Max. rolled net size (mm)
91.4m (300')
Welding speed ( mesh/minute)
45 ( radia)
Power
380/220V;50-60HZ;50KWAx6
Outside size(mm)
3350x1800x1400
Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of wire diameter 0.45, diameter 1.07, mesh 1/4" -1/2".
Size of mesh (mm)
6.35-12.7 (1/4"-1/2")
Width (mm)
914.4-1219.2 (12"-48")
Diameter of wire (mm)
Dia.0.45-Dia.1.07 ( BWG25-BWG19)
Max. rolled net size (mm)
120m (400')
Welding speed ( mesh/minute)
75 ( radia)
Power
380/220V;50-60HZ;50KWAx4
Outside size(mm)
2350x1820x1700





Usage
Mainly used for the construction mesh.

Product Description

We produce exclusive range of welding mesh machine, which is widely appreciated among our customers due to its reliable and efficient performance. It is ergonomically designed in accordance with international quality standards, so that to deliver a faultless product range to our clients.
