Product Description

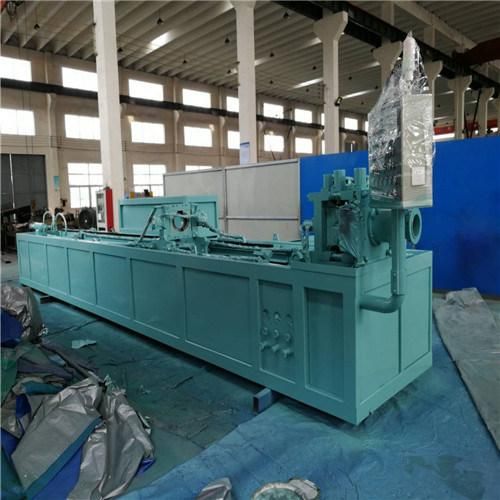

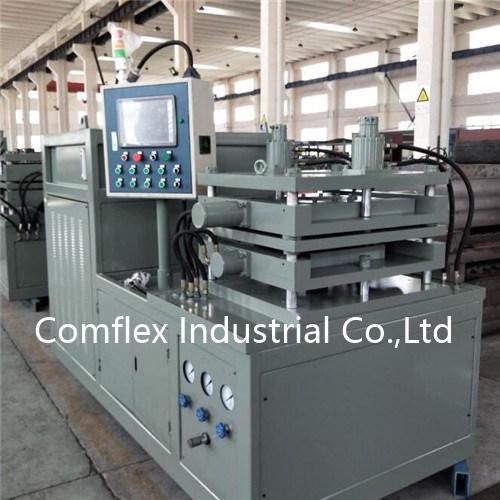

Flexible metal hose forming & pitch closing machine

The working principle:The machine will form the flexible metal hose with standard pitch distance and then close the pitch on the same machine. Compress the hose into smaller pitch


product description

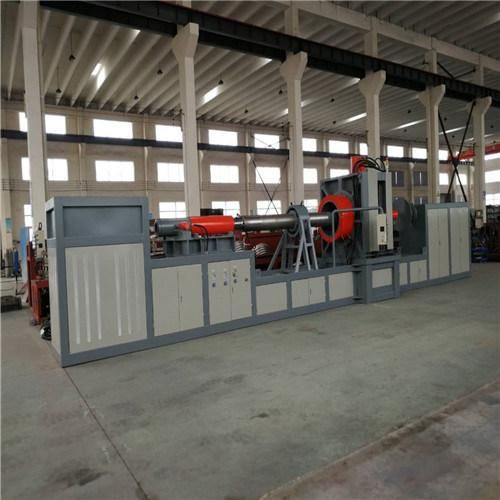

(YKCX-100DHydraulic metal hose forming machine with compressing)


I. Equipment working rangement and technical parameters

1. The equipment is an emulsion liquid as a drum wave medium. Under the joint action of the hydraulic control system and the fixed length mold, the welded stainless steel tube blank with one layer or double-layer is automatically and continuously formed into a ring-shaped metal hose or expansion joint of corresponding diameter through a setting process of positioning,  waving and forming.

2. Through the specially hydraulic metal hose forming machine with compressing along the machine center axis to press or extend the formed corrugated bellows and draw to get the desired pitch and shape.
3. The range of the inner diameter of the metal hose can be Φ40-Φ100mm.
4.Length of corrugated metal hose: L≤5000mm.
5. Technical parameters of the bellows: (Note: The data listed in the table is provided by the demander).






No.	Type	Inner diameter	Outer diameter	Pitch distance	Thickness	Width	Application
1	40A	Ф40.5	Ф57.0	8.0	0.6	129.1	Fire fighting
2	50A	Ф53.5	Ф70.5	10.0	0.6	170.0	Fire fighting
3	65A	Ф67.0	Ф86.0	10.0	0.6	212.4	Fire fighting
4	80A	Ф78.5	Ф102.5	10.0	0.1	249.8	Fire fighting
5	100A	Ф103.5	Ф128.5	11.0	1.0	328.3	Fire fighting

6. The system is controlled by programmable PLC and has two waves at each end to adjust to change the height of wave
 7. The system sets the automatic straight edge function and configures the wave count display.
  8. A positioning device for adjusting the opening position of the front and rear dies before the drum wave is set.
  9. The corrugated metal hose size tolerance class is JS (js) 18 degree.
 10. The CPU, text display and programming cable are equipped with Chinese-made "Xinjie" brand components.
