High Quality Short Length Tungsten Carbide Rod/Ground Carbide Rods
Zhu Zhou Evergreen Hardmetal Tools Co., Ltd.- Certification:ISO9001
- Standard:DIN
Base Info
- Model NO.:K10,K20,K30,K40,Yl10.2,Yg6,Yg6X,Yg8,Yg10X,Yl10.2
- Customized:Customized
- Material:Tungsten Carbide
- Application:Metal Cutting Machine, Metal Processing Machinery Parts, Metal Engraving Machinery, Metal Casting Machinery
- Sizes:Dia12*70.5mm,Dia1.486*38.1mm,Dia1.054*38.1mm
- Transport Package:Plastic & Carton
- Specification:100% virgin material
- Trademark:Evergreen
- Origin:Zhuzhou, China
- HS Code:846691000
- Production Capacity:500000PCS,Month
- Package size per unit product:40.00cm * 20.00cm * 20.00cm
- Gross weight per unit product:1.000kg
Description
Basic Info.
Model NO. K10/K20/K30/K40/Yl10.2/Yg6/Yg6X/Yg8/Yg10X/Yl10.2 Customized Customized Material Tungsten Carbide Application Metal Cutting Machine, Metal Processing Machinery Parts, Metal Engraving Machinery, Metal Casting Machinery Sizes Dia12*70.5mm/Dia1.486*38.1mm/Dia1.054*38.1mm Transport Package Plastic & Carton Specification 100% virgin material Trademark Evergreen Origin Zhuzhou, China HS Code 846691000 Production Capacity 500000PCS/MonthPackaging & Delivery
Package size per unit product 40.00cm * 20.00cm * 20.00cm Gross weight per unit product 1.000kgProduct Description
Product DescriptionWe provide high quality tungsten carbide rods with the following advantages:
1. 100% Virgin raw material
2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 25 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
Customized according to your requriements.
5. Competitive price and fast delivery
Recommanded grades to your refer:
EG GRADE | ISO CODE | GRAIN SIZE(μm) | DENSITY(G/cm³) | HARDNESS | TRS(N/MM) |
EG06 | K05 | 0.5 | 14.8 | 94.3 | 3800 |
EG08 | K10 | 0.6 | 14.75 | 92.2 | 3900 |
YL10.2 | K20 | 0.6 | 14.5 | 91.8 | 4000 |
EG12 | K30 | 0.5 | 14.1 | 92.5 | 4000 |
YG15X | K40 | 0.6 | 14.0 | 89.5 | 4000 |
Dimension and Tolerance
Dimension(mm) | Tolerance of diameter(mm) | Tolerance of length(mm) |
Min BL-Φ3.0×330 | +0.20/+0.45 | -0/+5.0 |
Max BL-Φ50.0×330 | +0.20/+0.45 | -0/+5.0 |
Diameter | h4 | h5 | h6 | h7 |
0-3.0mm 0-0.1181 in. | 0.003mm 0.00012 in. | 0.004 mm 0.00015 in. | 0.006 mm 0.00024 in. | 0.010 mm 0.00039 in. |
3.001-6.0mm 0.1181 - 0.2362 in. | 0.004mm 0.00015 in. | 0.005 mm 0.00020 in. | 0.008 mm 0.00031 in. | 0.012 mm 0.00047 in. |
6.001-10.0 mm 0.2363 - 0.3937 in. | 0.004mm 0.00015 in. | 0.006 mm 0.00024 in. | 0.009 mm 0.00035 in. | 0.015 mm 0.00059 in. |
10.001-18.0 mm 0.3938 - 0.7087 in. | 0.005mm 0.00020 in. | 0.008 mm 0.00031 in. | 0.011 mm 0.00043 in. | 0.018 mm 0.00071 in. |
18.001-30.0 mm 0.7088 - 1.1811 in. | 0.006mm 0.00024 in. | 0.009 mm 0.00035 in. | 0.013 mm 0.00051 in. | 0.021 mm 0.00083 in. |
30.001-50.0 mm 1.1812 - 1.9685 in. | 0.007mm 0.00028 in. | 0.011 mm 0.00043 in. | 0.016 mm 0.00063 in. | 0.025 mm 0.00098 in. |

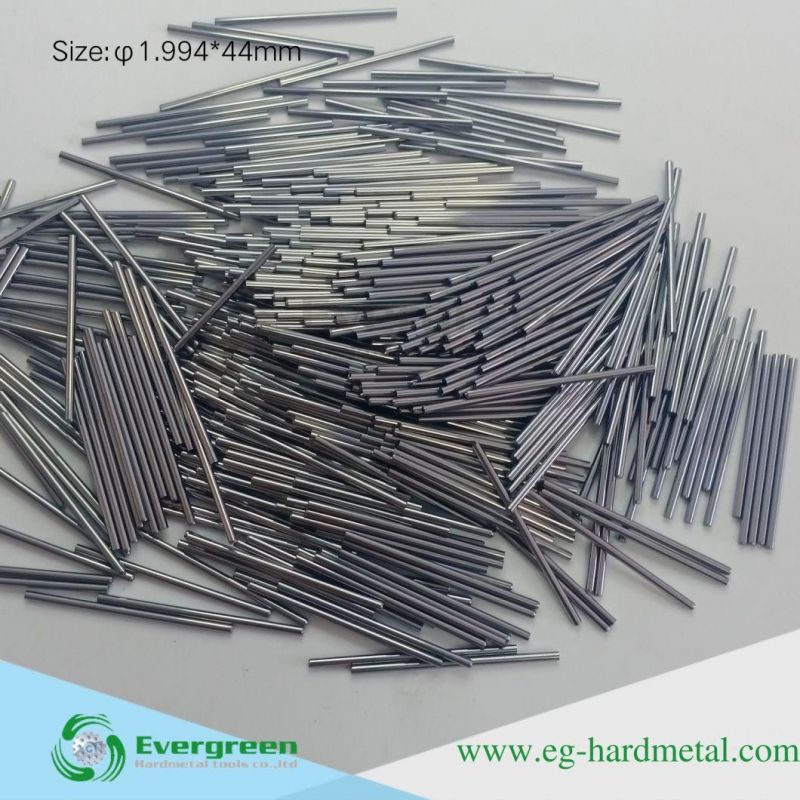

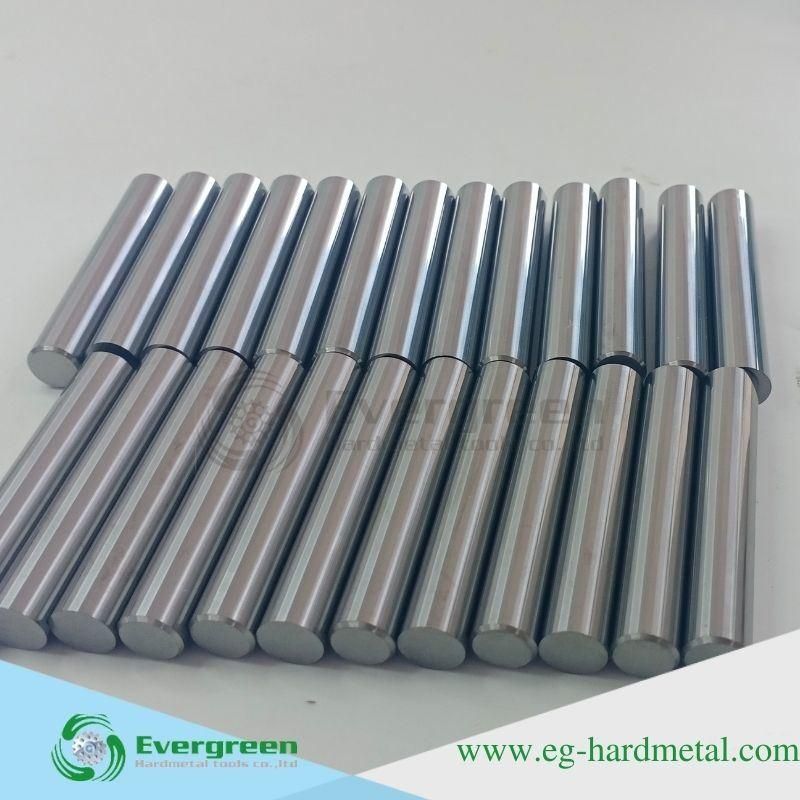

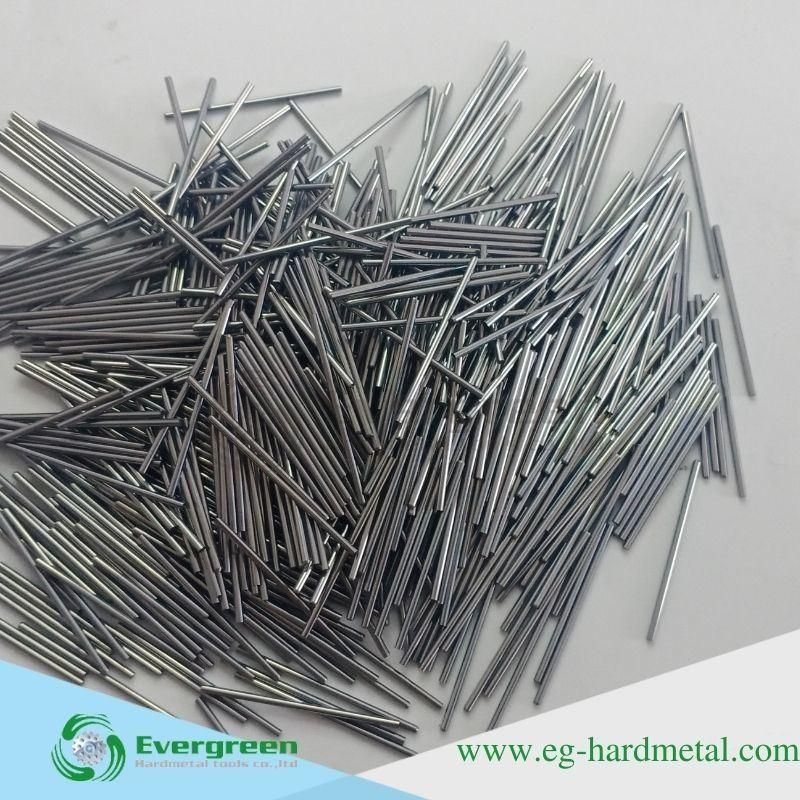

Product Show

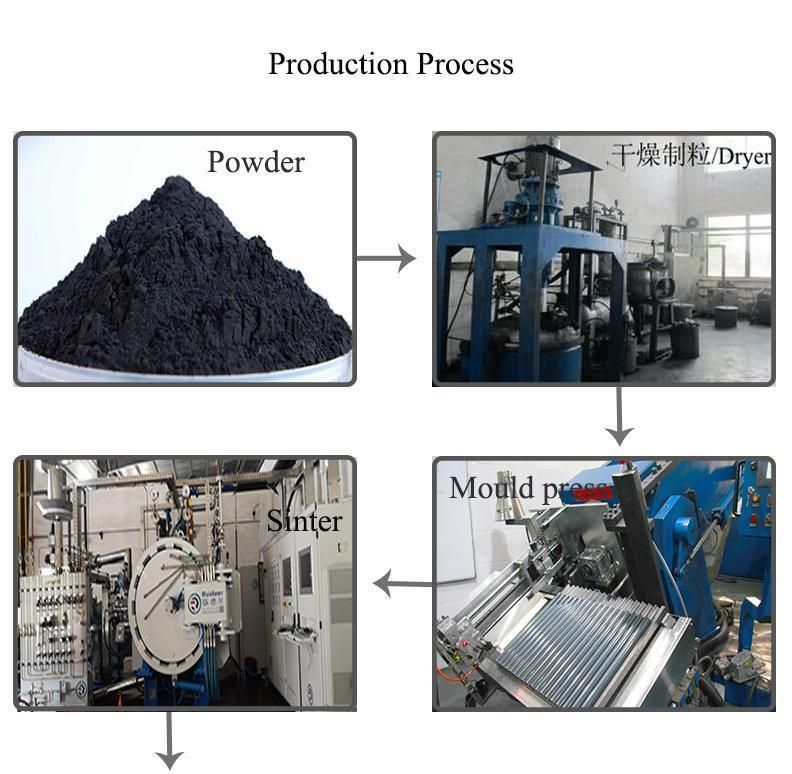

Production Process

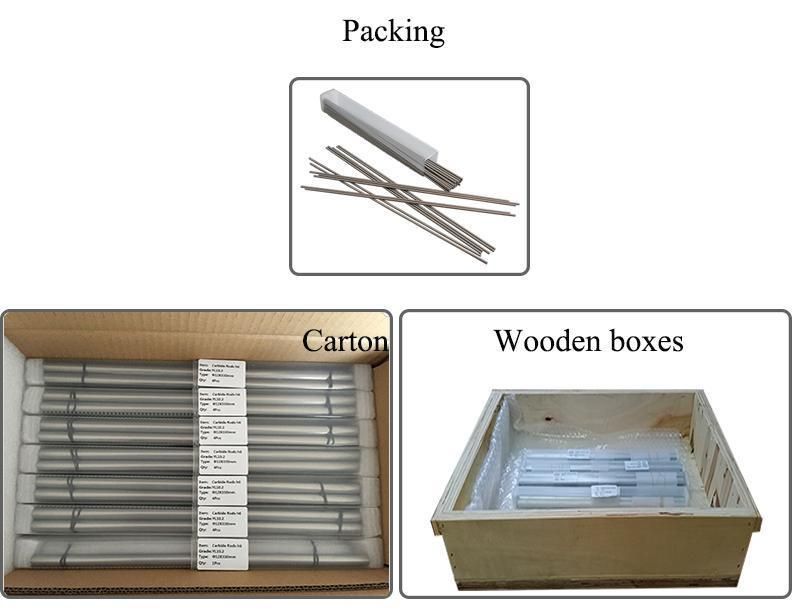

Packing
A. Standard packing
1).Plastic boxes with foam inside and carton outside.
2).Paper boxes with foam inside and carton outside.
3).Inner boxes/packing material inside and plywood box outside (for heavy product).
B. Customized packing available: We can do special packing based on client's requirements..
Welcome to inquiry
Contact way:+86-19973330313
