• Model NO.：W24Y-400
• HS Code：84622990
• Production Capacity：50 Units,Montg

Basic Info.

Model NO. W24Y-400 HS Code 84622990 Production Capacity 50 Units/Montg

Product Description

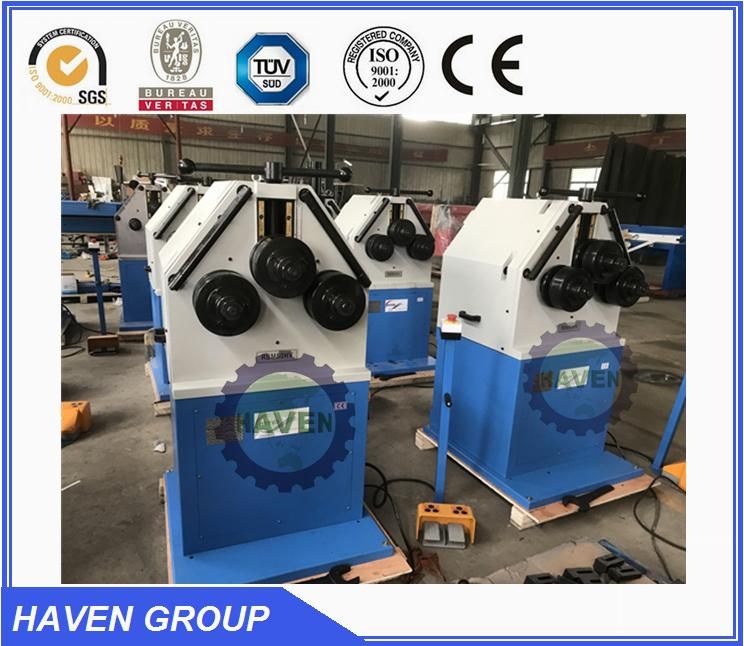

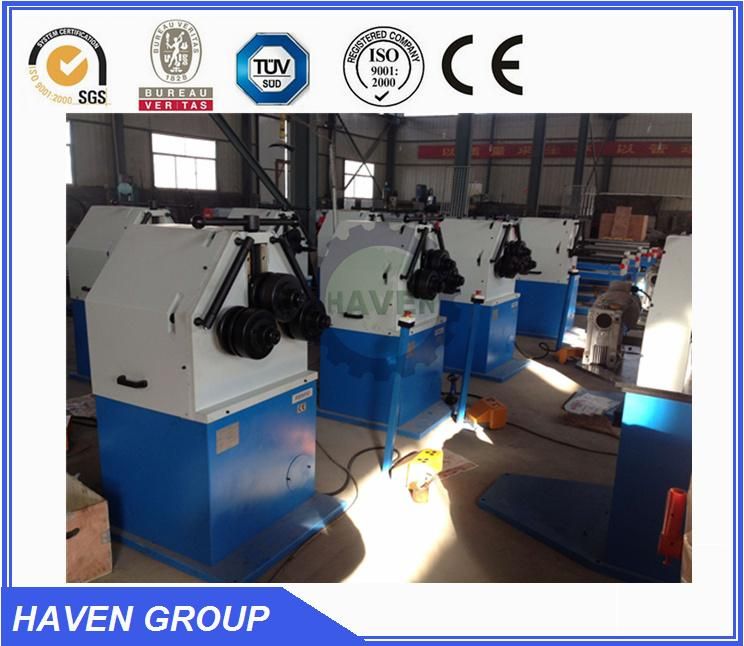

Mechanical type section bender, profile bending machine W24Y-400




1.Main features:
Steel-welded construction frame
With hydraulic motor
Mobile control panel
Top roll hydraulic moveable
One standard combination roller
Horizontal and vertical working position.

Model	W24Y-400	W24Y-500	W24Y-1000
Yield limit	245Mpa	245Mpa	245Mpa
Min bending diameter	200-400mm	300-400mm	400-600mm
capacity	L40x4mm	L50x5mm	L75x7mm
Machine dimension	600x500x1200mm	800x750x1300mm	1000x900x1200mm
Weight	500kgs	800kgs	1600kgs
Motor power	2.2KW	0.75+2.2KW	1.5+3 KW

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
