• Model NO.：GB4235
• Saw Blade Tension Form：Manual
• Dimension：2000*1000*1300
• Weight：2000kg
• Delivery：Our Factory Has Machine in Stock
• Transport Package：Wooden Case
• Specification：G4235
• Trademark：HENGHUA
• Origin：Mainland, China
• HS Code：8461500090
• Production Capacity：10000 Sets Per Month

Metal Band Sawing MachineModelG4230G4235G4240G4250Max.sawing range (mm)300*300*300350-350*350400*400*400500*500*500Saw belt (mm)3705*27*0.94115*34*1.15000×41×1.35450*41*1.3 mmSawing wire speed(mm/min)27,45,6927,45,6927,45,6927,45,69Working clamping methodHydraulicHydraulicHydraulicHydraulicMain motor power(kw)334kw5.5KWVoltage (V)380V/3 Phase220V/3 Phase380V/3 Phase380V/3 PhaseHydraulic motor power(kw)0.750.750.75kw1.5 KWCooling pump power(kw)0.040.040.09kw0.125KWFeed speed adjustment modeHydraulic/stepless speedHydraulic/stepless speedHydraulic/stepless speedHydraulic/stepless speedWorkbench height (mm)300300300mm300MMCooling pump power(kw)0.040.040.09kw0.125KWDimension (mm)1890*900*1420mm2000*1100*1500mm2500×1300×1600mm2800*1800*2100MMMain drive structureWorm gearWorm gearWorm gearWorm gearTensioning method of band sawManualManualManualManualclamping systemHydraulic pressureHydraulic pressureHydraulic pressureHydraulic pressureCleaning of band sawWire brush and chip coolantWire brush and chip coolantWire brush and chip coolantWire brush and chip coolant


Feature:
1.Double column structure,high stability & rigidity
2.Hydraulic control of blade vertical feed speed, variable speeds

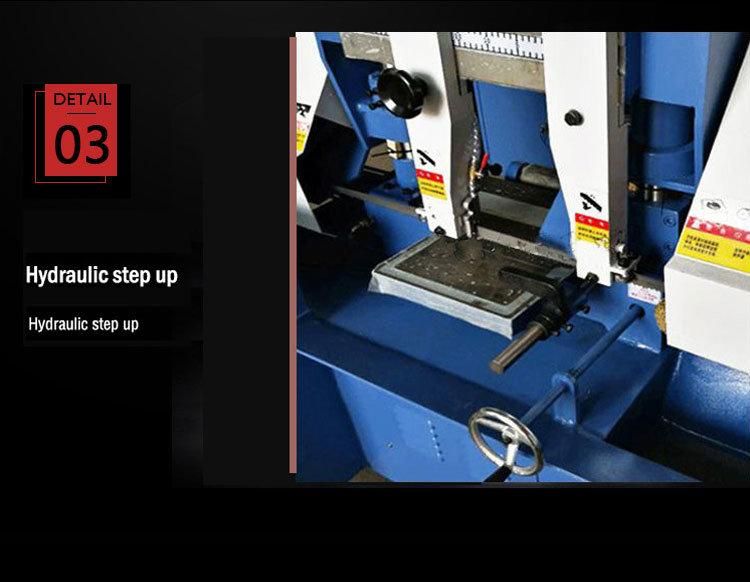

3.Hydraulic clamp of workpiece
4.manual tension of saw blade
5.saw blade is installed between vise, can clamp & cut ultra-thin workpiece
6. gantry type band sawing machine is mainly used for processing large workpieces with high eddiciency and accurancy.


FAQ
1. What level of service do you provide ?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.


When you want to know the quality, the price and so on , please call on Sebella.
