• Model NO.：CNCDG-2000
• Transport Package：Plastic Covering
• Specification：CNCDG-2000
• Trademark：HAVEN
• Origin：China
• HS Code：84569010
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. CNCDG-2000 Transport Package Plastic Covering Specification CNCDG-2000 Trademark HAVEN Origin China HS Code 84569010 Production Capacity 200 PCS/Month

Product Description

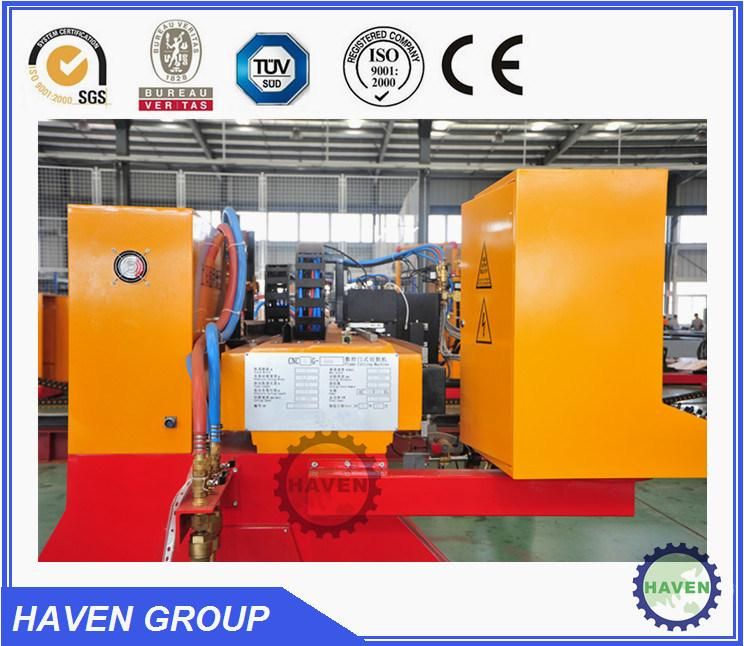

                           CNCDG-2000 CNC Table Style Plasma and Flame Cutting Machine




Main features:

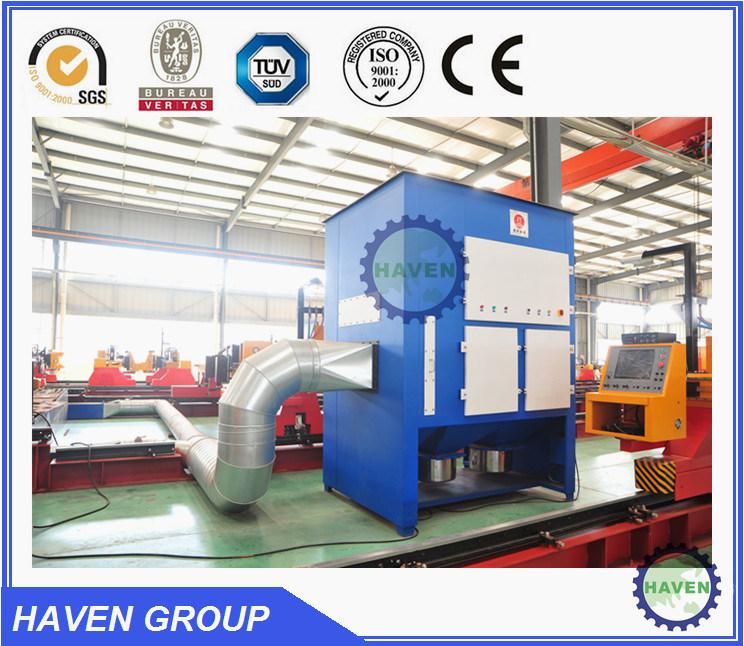

CNC table style cutting machine is a high speed, high accuracy plasma cutting machine which features compact modular construction for easy and fast installation and initial operation. Fume extraction table is integrated integrated to satisfy environmental requirements.

Main specification:

Machine specification	2000mm
Track length	4000mm
CNC Plasma torch (American Hypertherm)	1set
Drive mode	Double drive
Driving system*dynamo	Japan Panasonic servo
CNC system	American Hypertherm MicroEDGE
Gear box	Germany
Automatic Programming, Nesting software	FastCAM Nesting Software
Plasma Power (American Hypertherm)	MAX200
Precision cutting table	1set
Water table	1set

Programming software (FastCAM professional made in Australia)	1set
Motorized plasma torch height capacitor sensor (China)	1set

Max effective cutting width	1500mm
Max effective cutting length	3000mm
Rapid speed	0-9000mm/min
Max plasma cutting thickness (edge cutting)	50mm
Max plasma perforation thickness	25mm
Automatic  higher  Precision	<+±1.0mm
Setting  speed  error	≤±5%
Plasma cutting speed	50-5500mm/min
Torch lifting distance	150mm
Straight line positioning precision	±0.2mm/10m
Straight line repeat precision	±0.2mm/10m
