Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.
  • Warranty：a Half Year
  • Certification：CE, ISO9001
  • Customized：OEM
  • Material：Tungsten Carbide
  • Application：Metal Cutting Machine, Metal Processing Machinery Parts
  • Logo Printing：OEM

Base Info

  • Model NO.：D10*75
  • Size：OEM
  • Type：OEM
  • Coating：Coating
  • Tooth Form：Spiral Tooth
  • Tooth Space：Sparse Tooth
  • Structure：Indexable Type
  • Work Piece：65
  • Coating Types：Blue Nano
  • Cutting Form：Corner Radius
  • Flutes Number：4
  • Delivery Time：5-7days
  • Flexural Strength：2500-4000n,mm2
  • End Mill Flute Diameter：10mm
  • Package：1 PCS in a Plastic Tube, 10 PCS Per Group
  • Transport Package：Standard Export Carton
  • Specification：33x23x19cm
  • Trademark：Grewin
  • Origin：Zhuzhou, China
  • HS Code：8207709000
  • Production Capacity：500000PCS,Month

Description

Basic Info.

Model NO. D10*75 Size OEM Type OEM Coating Coating Tooth Form Spiral Tooth Tooth Space Sparse Tooth Structure Indexable Type Work Piece 65 Coating Types Blue Nano Cutting Form Corner Radius Flutes Number 4 Delivery Time 5-7days Flexural Strength 2500-4000n/mm2 End Mill Flute Diameter 10mm Package 1 PCS in a Plastic Tube, 10 PCS Per Group Transport Package Standard Export Carton Specification 33x23x19cm Trademark Grewin Origin Zhuzhou, China HS Code 8207709000 Production Capacity 500000PCS/Month

Product Description

Gw Carbide - D10*75 4F Carbide corner radius End Mill with Copper Coating

1. Products Description

Micro grain raw material
Grain size:  0.4-0.6μm
Co   10%, 12%
TRS   >3600 N/mm2
Hardness   HRA 91.8-92.5
Work piece   HRC45-50   HRC55-60   HRC65   HRC68
Helix angle   30°-45 °
Diameter of cutting edge   0.2-0.9 mm; 1-20 mm
Diameter of rods   4-20 mm
Length   50-100 mm
Cutting Form   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No.   1-7
HRC45HRC55  HRC60HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2		Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2		Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2		Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2


2. Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER,  ANCA,  ROLLOMATIC
Testing equipment: ZOLLER

3. Coating

Coating
Color
Coating Temperature
Thickness (um)
HV
Application Temperature
Friction coefficient

TiAlN		Purple-Gray<600°C3-53300800 °C0.3
AiTiNBlack<600 °C3-53500900 °C0.3
TiXcoCopper<600 °C3-535001500 °C0.4
NaNoBlue<600 °C3-538001200 °C0.4
AiCrNSilver Gray<480 °C2-2.52500700 °C0.3

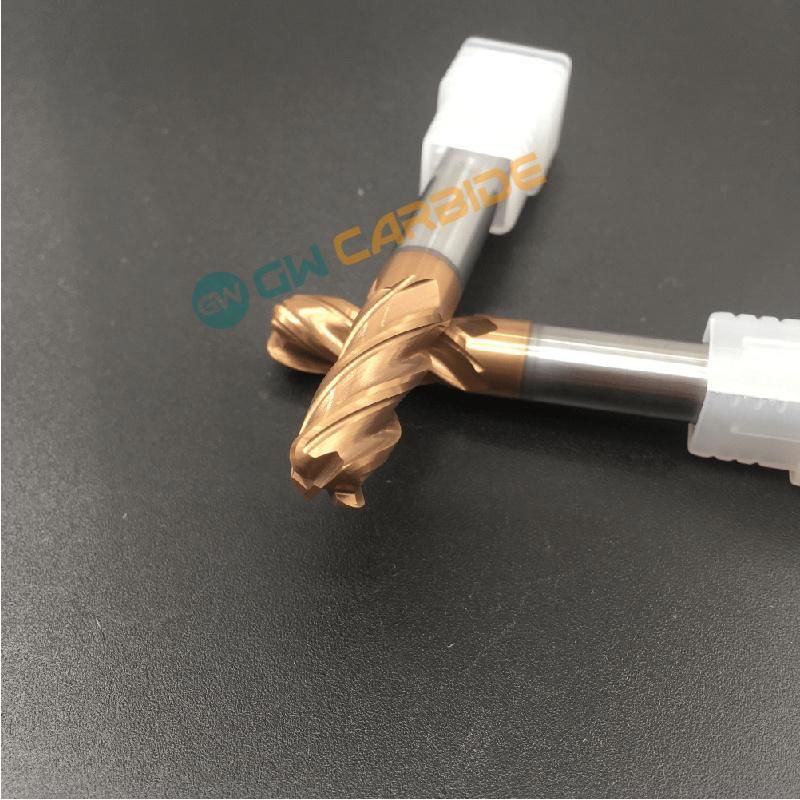

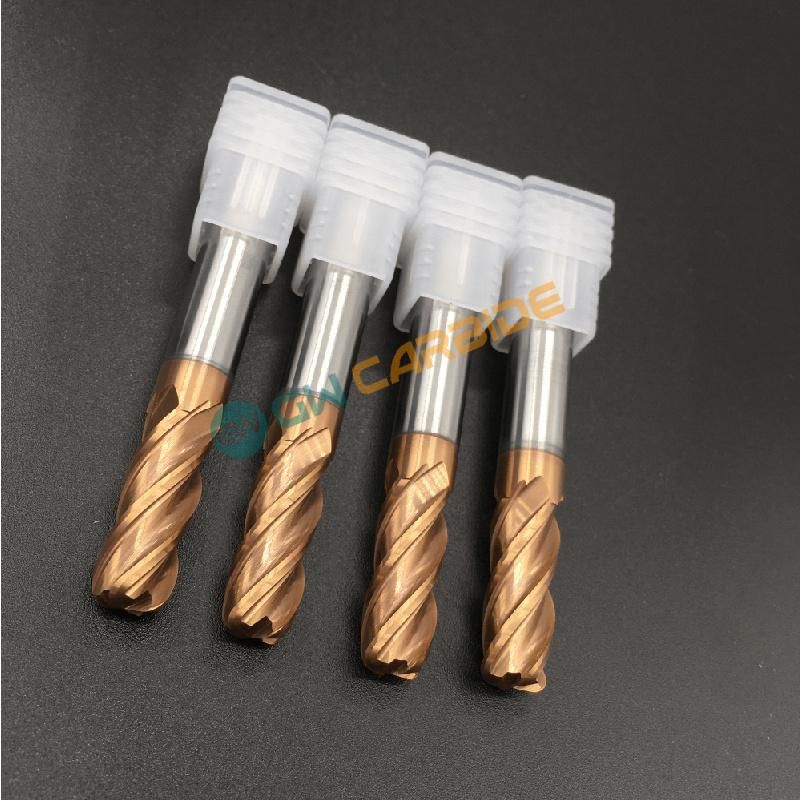

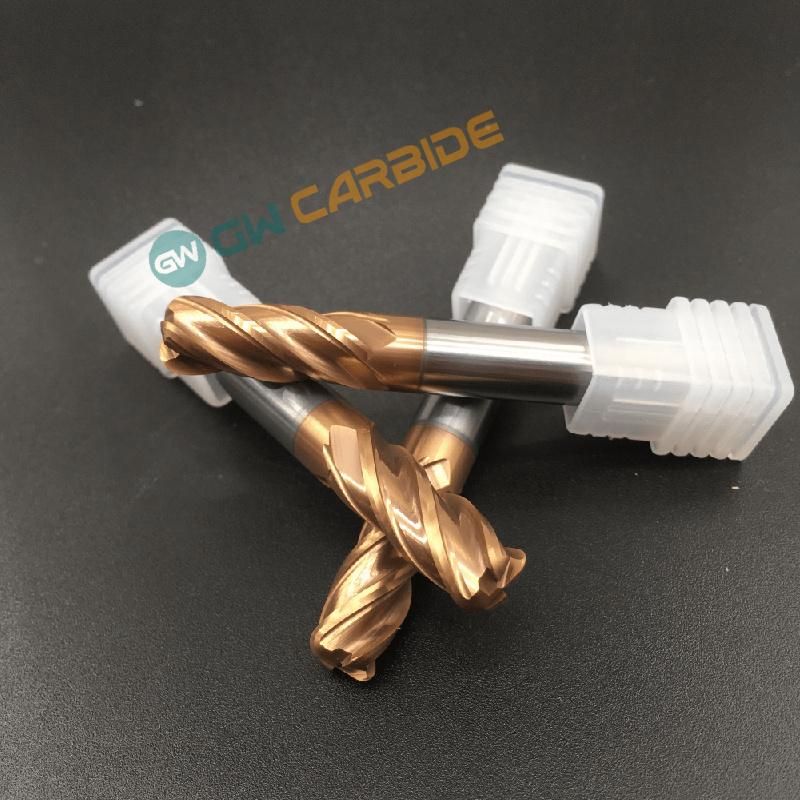

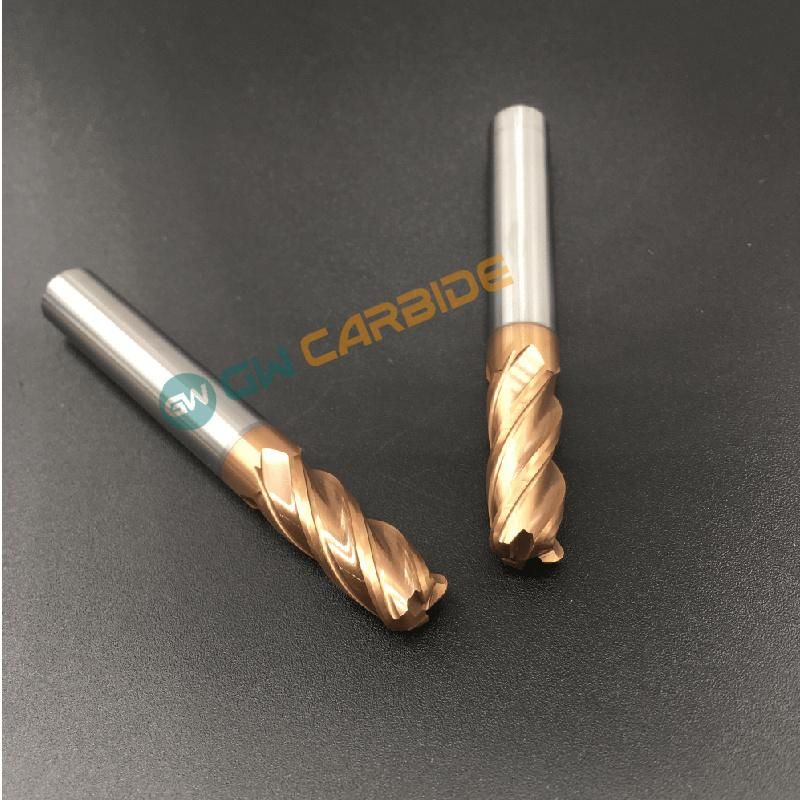

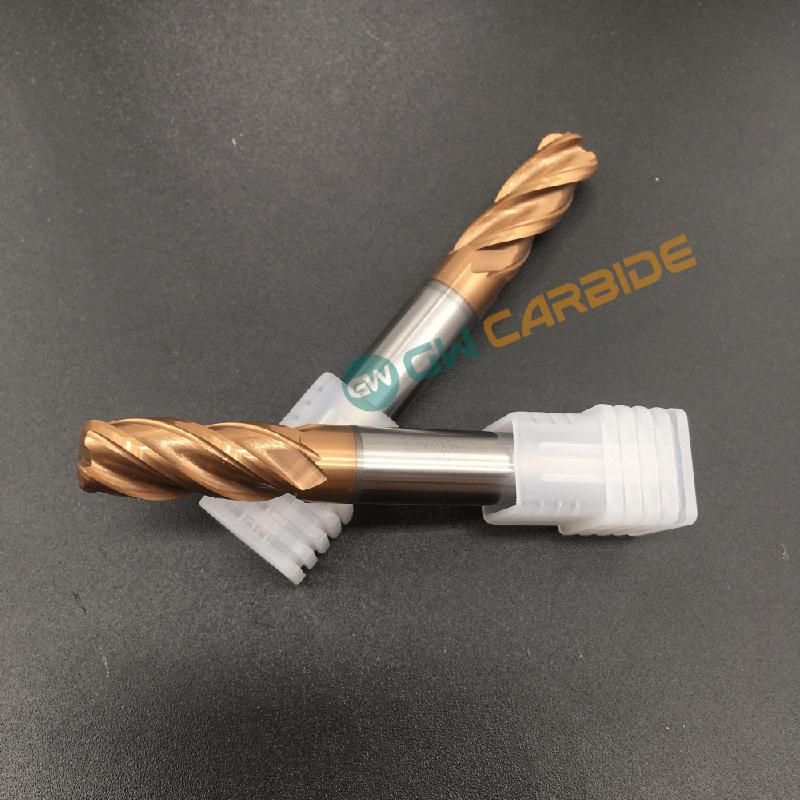

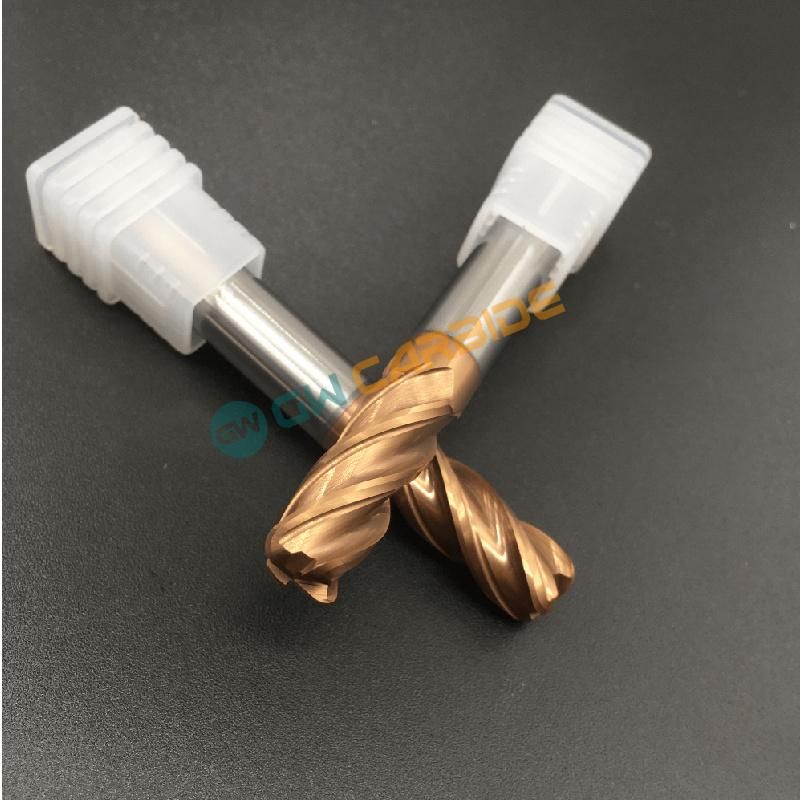

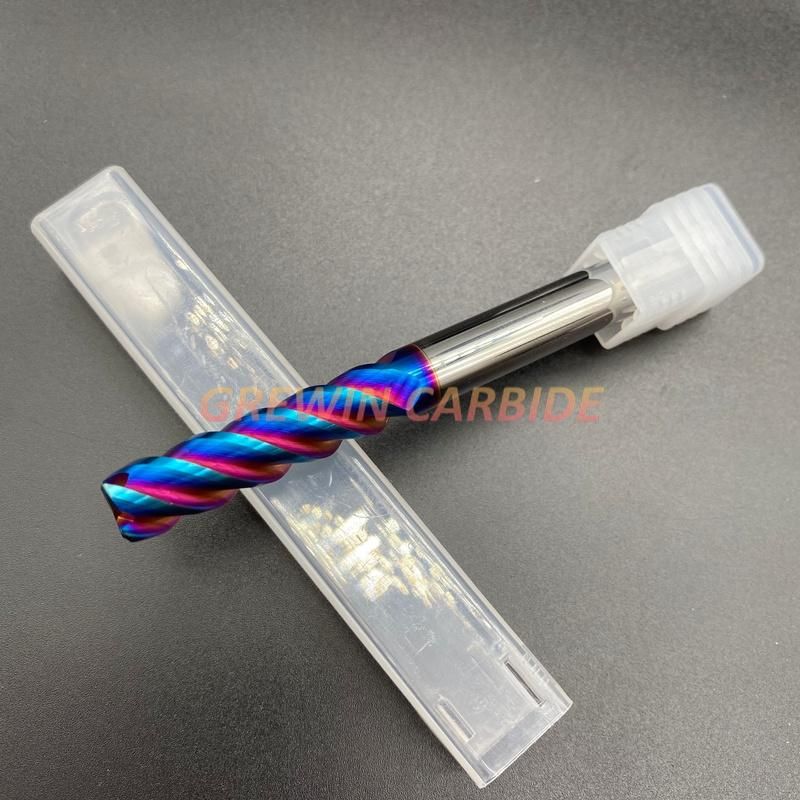

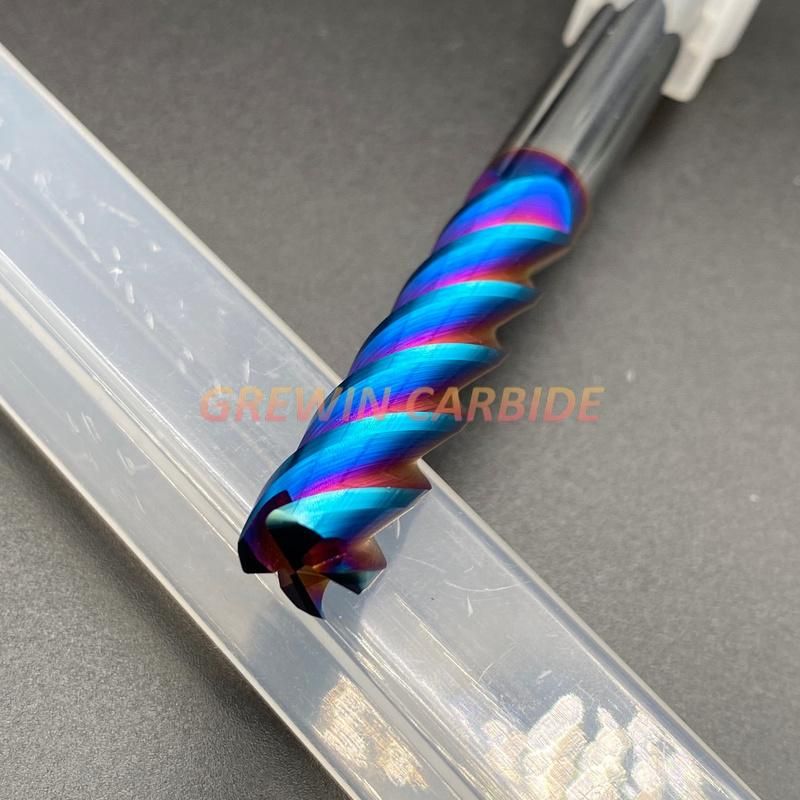

Product Show:
Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper CoatingGw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper CoatingGw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper CoatingGw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper CoatingGw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper CoatingGw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating
Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating
Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating
Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating


Gw Carbide - D10*75 4f HRC55 Carbide Corner Radius End Mill with Copper Coating
Waiting for your kindly inquiry.

Best regards
GREWIN CARBIDE
