Full Cover High Precision Mould Milling Drilling CNC Metal Engraving Machine
Jinan Firm CNC Equipment Co., Ltd.- Carving Material：Metal Alloy
- Controlling Mode：CNC
- Main Axle Rotational Speed：≤24000rpm
- Milling Cutter Diameter：3.175mm-12.7mm
- Feeding Height：200mm
- Certification：CCC, RoHS, ISO9001, CE
Base Info
- Model NO.：FM4040
- Warranty：24 Months
- Customized：Customized
- Condition：New
- Item：Metal Engraving Machine
- Working Area：400*400mm
- Machine Bed：The Whole Cast Iron Bed, Heavy-Duty
- Spindle：3kw Constant Water Cooling Spindle
- Inverter：3.7kw Taiwan Delta Inverter
- Motor and Drive：750W Yaskawa Servo Motor and Drives
- Transmission：Taiwan Tbi Ball Screw
- Guide Rails：Taiwan Hiwin Square Rails
- Control System：Original Nc Studio
- Interface：USB
- Transport Package：Standard Wood Box
- Specification：400*400*200mm
- Trademark：FIRMCNC
- Origin：Jinan, China
- HS Code：8465990000
- Production Capacity：100 Sets,Month
Description
Temperature: 0ºC~45ºC Relative humidity: 30%~75

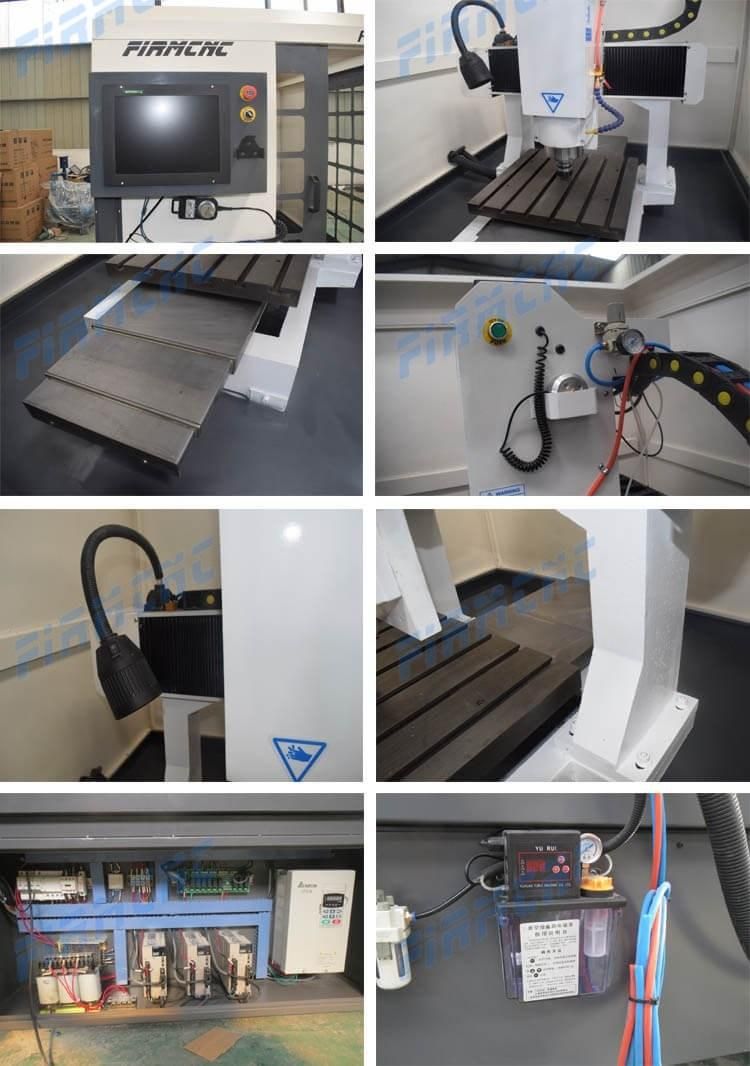

Main parts:
Equipped with constant water cooled spindle, high speed step motor, strong stainless steel T-slot table etc
Applied material: iron,aluminum,copper electrode and graphite,stainless steel,etc.
Application industry:
-advertising industry
-mold industry
-printing industry
-decoration industry
-clock and watch industry,etc.

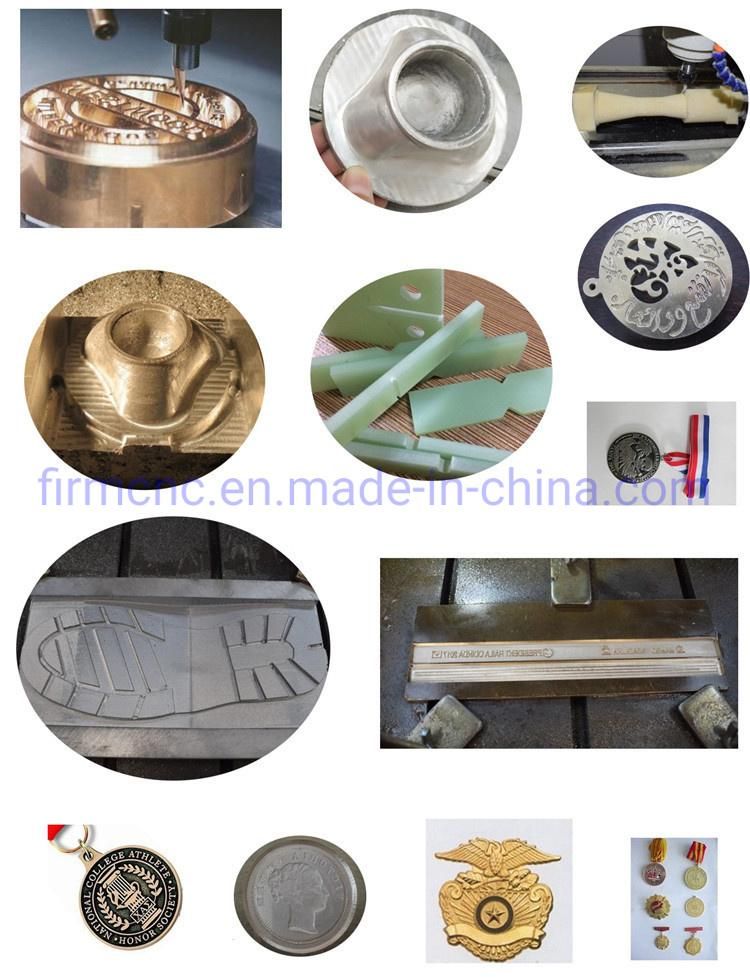

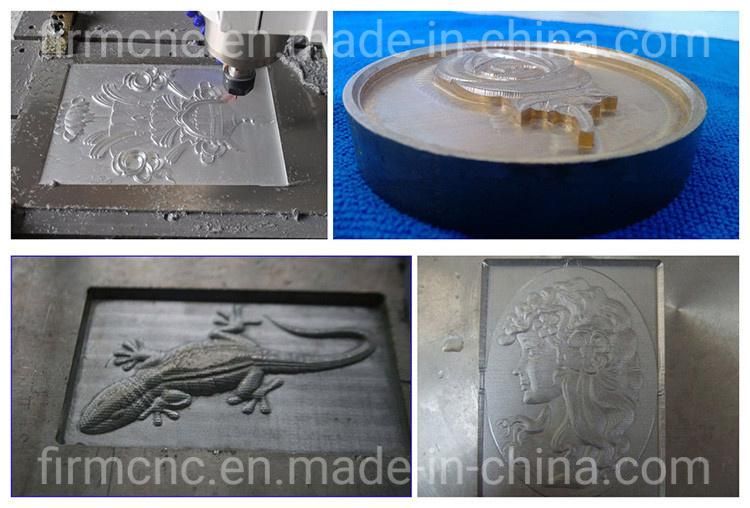

Samples:

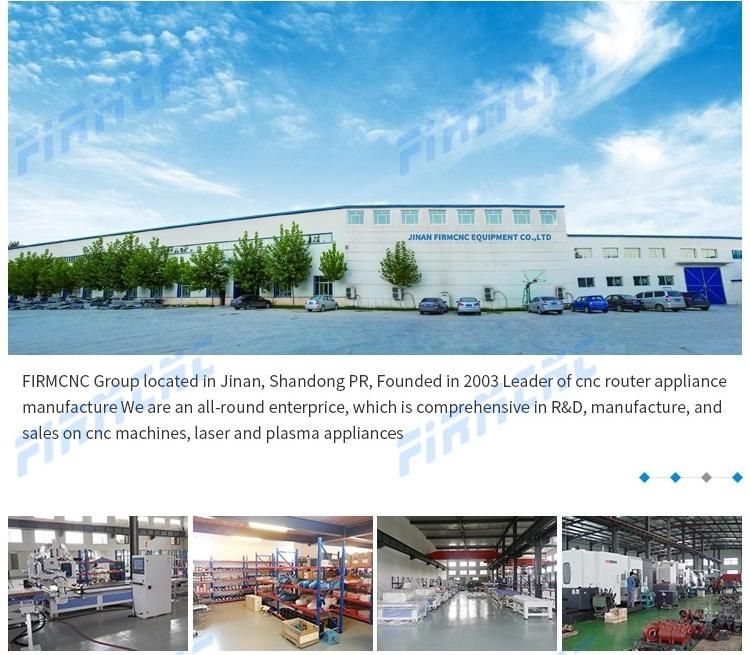

Our company:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc milling machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D,manufacture, and sales on cnc milling machine appliances.
Our Servies
1.Two years quality warranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.We will provide the consumable parts at an agency price when you need replacement.
4.24 hours on line service each day, free technical support.
5.Our staff can be sent to your company to install or adjust if necessary.
Certificates:

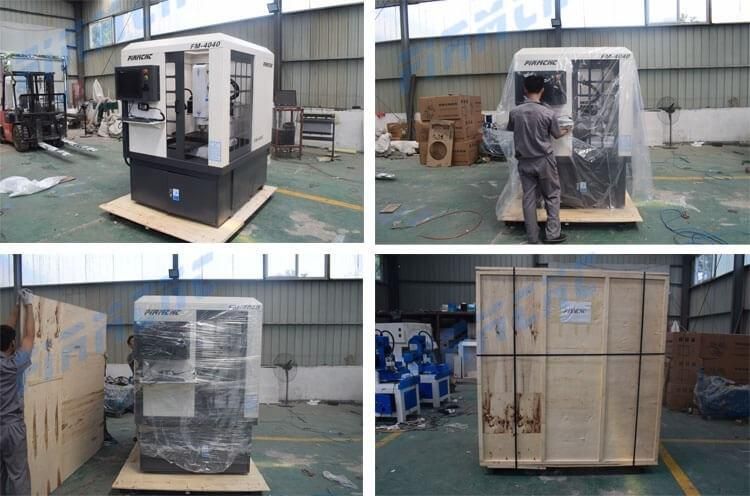

Paking&shipment:
Save space as much as possible for container loading.
- Inside:Water-proof Plastic Film Package With Foam Protection
- Outside:Solid Seaworthy Wood Box Package
- Below: Steel Tube
FAQ:
Q1.Can you recommend a cnc router to me ?
Yes, In order to give you a suitable cnc router,pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
Q3.Does your company can processing my samples?
Yes, we can.
Q4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
Q6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
