Industrial Electric Powder Coating Curing Oven for Hot in North America Sale
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Months
- Type：Powder Coating Oven
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO, RoHS
Base Info
- Model NO.：COLO-1864
- Condition：New
- Name：Industrial Electric Powder Coating Curing Oven for
- Item：Electric Powder Coating Oven for Sale
- Work Size：1500X1500X1500mm
- Power Supply：Electric
- Warm-up Time：15-30 Minutes
- Temperature：180-250′c
- Voltage：220,380V,400V 3phase as Your Industrial Standards
- Delivery：10 Working Days
- Product：Electric Powder Coating Oven for Sale
- Transport Package：Wooden Cases
- Specification：CE
- Trademark：COLO
- Origin：China
- HS Code：8419899090
- Production Capacity：50sest,Month
Description

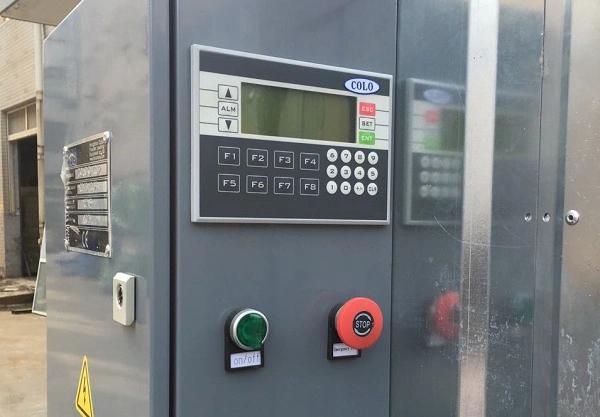

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.
Bottom of this electric powder coating oven is installed with electric heating tubes with great thermal conductivity to created hot air and rapidly raise temperature to the required curing, then circulation fan cycles the hot air and ensures parts to be heated evenly.
Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.

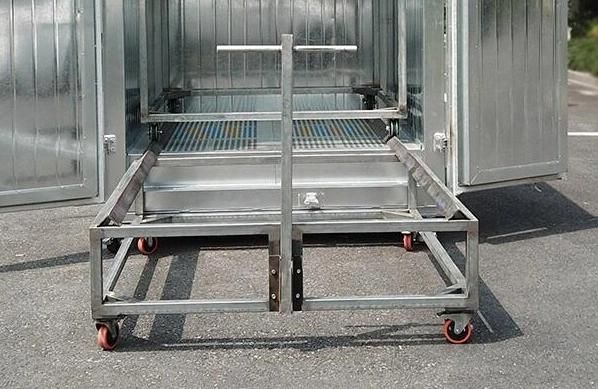

Supply with trolley and frames for easy carrying and loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.
Specifications of Electric Powder Coating Curing Oven
| Model | COLO-1864 |
| Worksize dimensions | 1600width x 1800 height x 1400 depth |
| Overall dimensions | 1900 width x 2200 height x 1700 depth |
| Power supply | Electric/ 12kw |
| Voltage/Frequency | 380V/220v(50-60hz) |
| Warm-up time | 15-30 min. (180° C) |
| Temperature stability | < ± 3-5°C |
| Temperature max. | 250° C |
| Ventilation performance | 805-1677m3/h |
| Motor power | 0.75kw |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Transportation | Trolley |
| Warranty | 12 months |
Different standard size of Powder Coating Oven for chioce
size1: 1000width x 1000 depth x 1800 height
size2: 845width x 845depth x 1600 height
size3: 1500width x 1500 depth x 1500 height
size4: 1800width x 1800 depth x 1800 height
size5: 1650width x 3200 depth x 1700 height
Application of Powder Coating Oven
Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment
2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.
3.Customed as you want.
4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.
5.One year of warranty period and life long technical support.
6.Market share in Global: about 90%, is a leading factory in this filed.
More details weclome to contact us !
