• Model NO.：PB-80
• Power：380V 50Hz
• Total：4800W
• Milling Width：0-70mm
• Single Milling Width：15-20mm
• Slope Angle：0-60 Degree(Adjustable)
• Clamp Thickness：6-60mm
• Clamp Width：>100mm
• Process Length：>300mm
• Worktable Height：820-860mm
• Net Weight：250kg
• Processing Material Materials：Carbon Steel,Stainless Steel,Aluminum Alloy etc...
• Transport Package：Wooden Case
• Specification：1310*760*690mm
• Trademark：Wellnit
• Origin：Zhejiang, China
• HS Code：8461909000
• Production Capacity：80 Sets,Weeks

Basic Info.

Model NO. PB-80 Power 380V 50Hz Total 4800W Milling Width 0-70mm Single Milling Width 15-20mm Slope Angle 0-60 Degree(Adjustable) Clamp Thickness 6-60mm Clamp Width >100mm Process Length >300mm Worktable Height 820-860mm Net Weight 250kg Processing Material Materials Carbon Steel,Stainless Steel,Aluminum Alloy etc... Transport Package Wooden Case Specification 1310*760*690mm Trademark Wellnit Origin Zhejiang, China HS Code 8461909000 Production Capacity 80 Sets/Weeks

Product Description

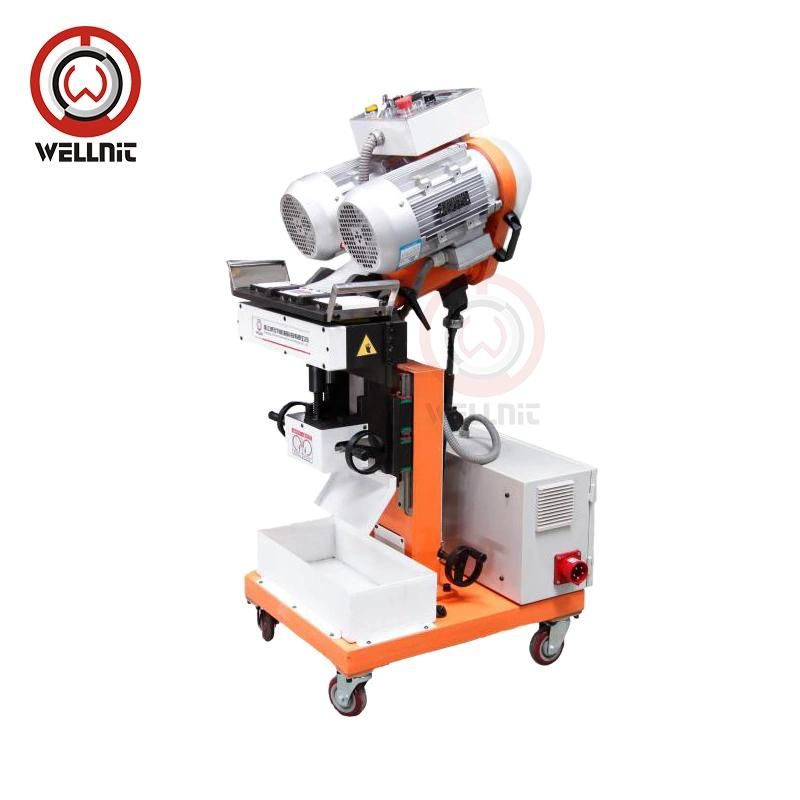

PB-80 Double motors Automatic Plate milling machine milling width 70mm

Main Features:

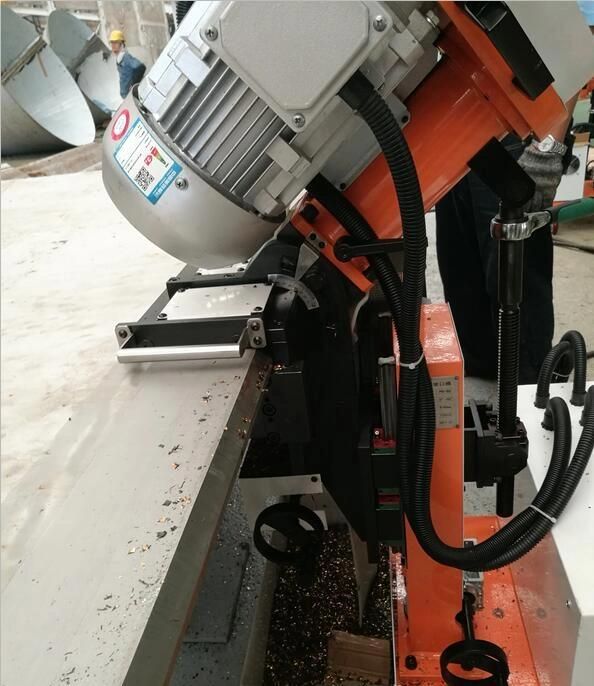

The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.

The PB-80 type edge milling machine:

1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;

2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;

3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not
contact with operation interface.

Technical parameters:


power	4800w	clamp  width	>100mm
voltage	380V 50HZ	slope angle	0-60 deg(adjustable)
spindle speed	750-1050r/min	clamping thickness	6-60mm
feed speed	0-1500mm/min	worktable height	820-860mm
milling width	0-70mm	net weight	250kg
single milling width	15-20mm	processing materials	carbon steel,stainless steel,aluminumalloy,composite plate
processing length	>300mm

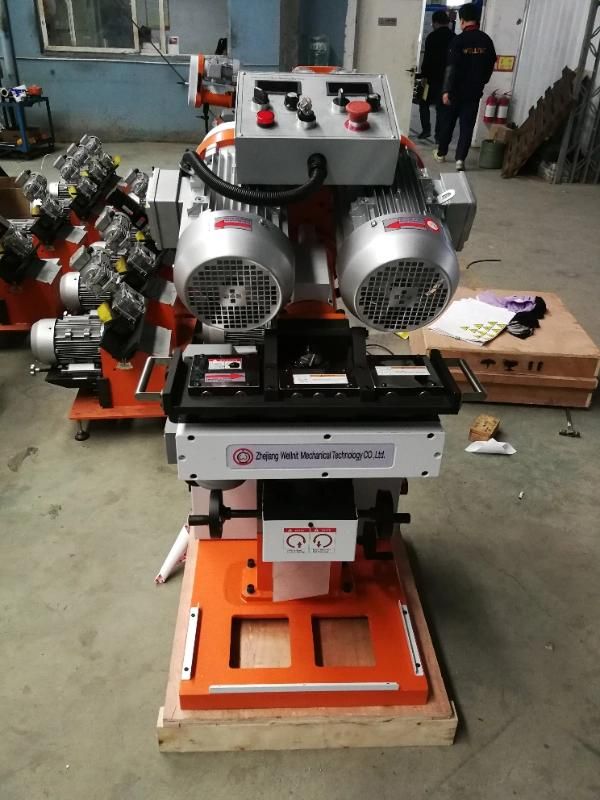

Specification:


Product packaging

1.How to choose a suitable model?

RE: Before choose the model,we need to know more details about the pipe,such as the
I.D,O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately decision .Thanks!

2.Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,

hydraulic and NC.

3. About the type of the beveling?

RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
