EDM Wire Cut EDM Machine
Creator Industry (Suzhou) Co., Ltd.- Max Taper：±5degree
- Max Cutting Thickness：80mm,280mm(Option)
- Electrode Dia：0.12-2.2mm
- Accuracy：0.003
- Wortable Travel：400*320mm
- Max Loading：500kg
Base Info
- Model NO.：SF-40JC
- Max Cutting Speed：>220mm,Min
- 3 Average Cutting Speed：>80mm,Min
- Best Surface Finish：0.8um
- Interface：USB,LAN,RS232
- Transport Package：Wooden Case
- Specification：2000*1800*1900
- Trademark：Lead
- Origin：Suzhou, China
- HS Code：8456103090
- Production Capacity：500
Description
Basic Info.
Model NO. SF-40JC Max Cutting Speed >220mm/Min 3 Average Cutting Speed >80mm/Min Best Surface Finish 0.8um Interface USB/LAN/RS232 Transport Package Wooden Case Specification 2000*1800*1900 Trademark Lead Origin Suzhou, China HS Code 8456103090 Production Capacity 500Product Description
WHY CHOOSE US ?1.WITH 30-YEAR HISTORY SINCE 1986 ESTABLISHED IN TAIWAN;
2.WE PRODUCE CNC MACHINE FOR SODICK
3.THE BEST QUALITY & ACCURACY AMONG COMPETITORS IN CHINA.

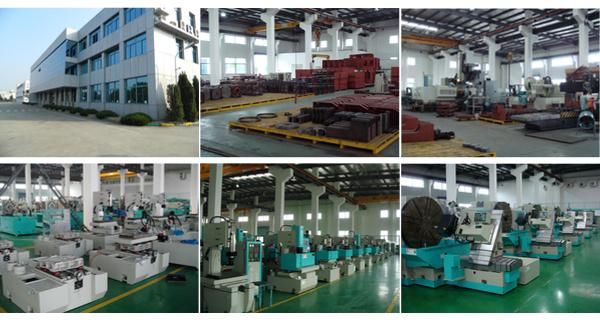

Company Introduction:
Creator Precision Co., LTD. was established in Taiwan at 1986.
In 1997 , Creator Industry (Suzhou) Co., Ltd. was found to extend Mainland China market. 1.The registered capital is USD 5,080, 000.
2.The new factory covers 24,680sqms and holds a building area of 19,000sqms.
3.There are 250 employers which assure
4.Annual production at least as 600 sets of EDM and 100 sets of VMC.

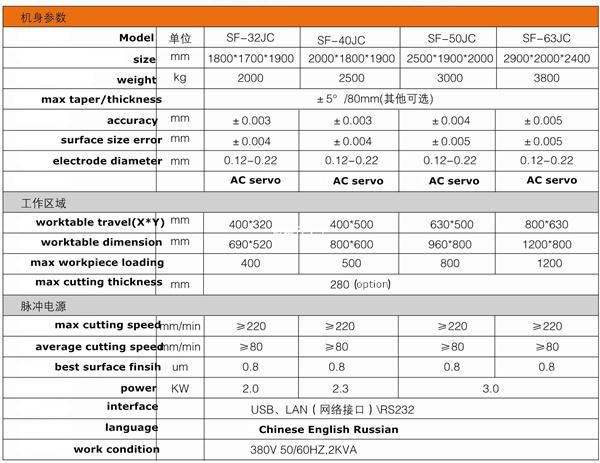

SPECIFICATION OF SF-40JC
