• Model NO.：300T
• Transport Package：Plastic Package
• Specification：6.4*1.7*2.8
• Trademark：Longhua
• Origin：Anhui, China(Mainland)

Basic Info.

Model NO. 300T Transport Package Plastic Package Specification 6.4*1.7*2.8 Trademark Longhua Origin Anhui, China(Mainland)

Product Description

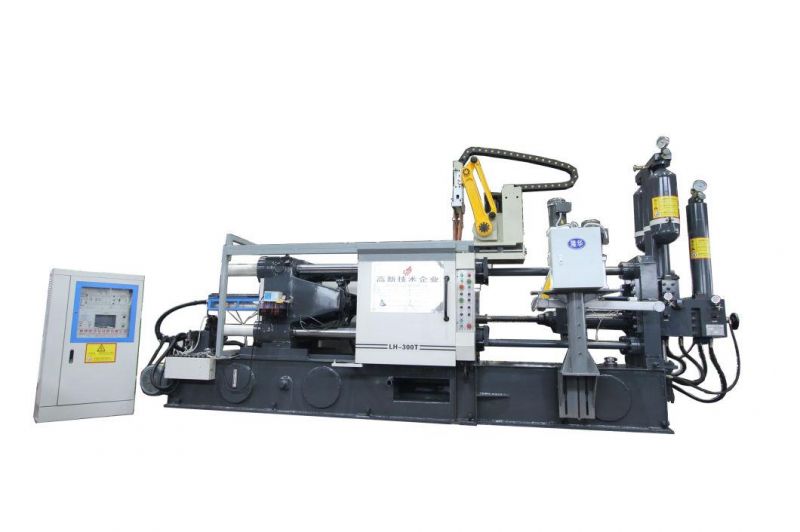

This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and supplies.

computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.

The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.

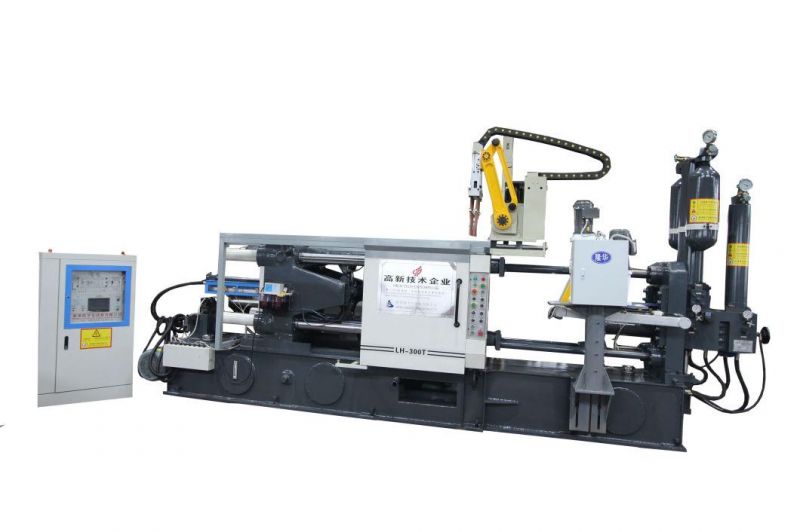

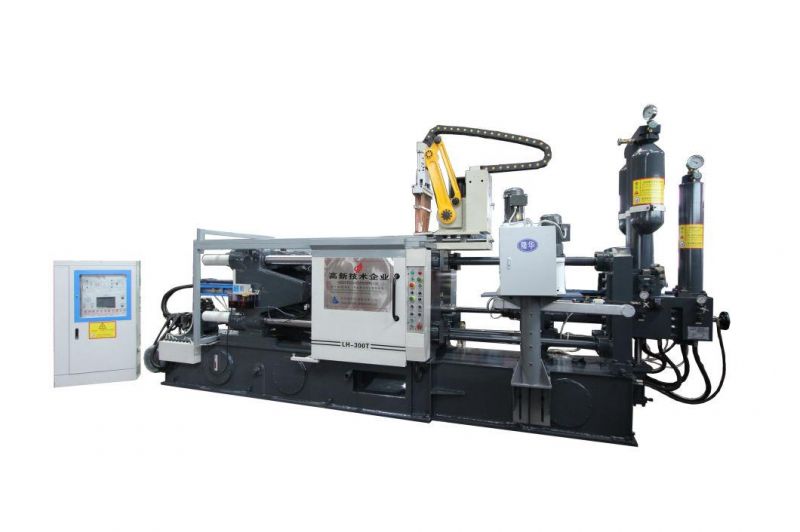

Specification of 250 ton Cold Chamber Die Casting  Machine Aluminium:

       LH series of standard parameter table (300 t)

Items	Unit	Specification
Hydraulic Working Pressure	MPa	14
Clamping Force	KN	3000
Space Between Tie Bars	mm	510*510
Tie Bar Diameter	mm	¢90
Die Opening Stroke	mm	400
Injecction Force(intensify)	KN	270
Plunger launch distance	mm	140
Injection position	mm	0  --  140
Plunger Diameter	mm	¢50----¢70
Injection Stroke	mm	345
Casting pressure (intensify)	MPa	112/78/57
Casting Fiange Protrusion	mm	10
Casting Fiange Diameter	mm	110
(40Mpa) Max Casting Area Under40Mpa	CM2	160-679
lnjection Weight(Al)	Kg	3
Die Height(Min--Max)	mm	220~600
Ejector Force	KN	120
Ejector Steoke	mm	90
Motor Capacity	Kw	15
Machine Dimensions  (L*W*H)	m	6*1.7*2.6
Referential Machine Weight For Uplifting	T	8.8
Oil Tank Capacity	L	680

WE reserve the right to make any technical improvement without further notice
