Automatical Metal/Iron/Stainless Steel CNC Plasma Cutting Machine
Jinan Allwin CNC Machinery Co., Ltd.- After-sales Service：Online
- Warranty：2 Years
- Customized：Customized
- Layout：Vertical
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：1530
- Power Source：Electric
- Cutting Mode：Plasma Cutting
- Cutting Gas：Oxygen + Acetylene or Propane
- CNC System：Beijing Start CNC
- Motor and Driver：Stepper&Nbsp;Motor and Driver
- Software：Fastcam Software
- Moving Precision：0.01mm Per Step

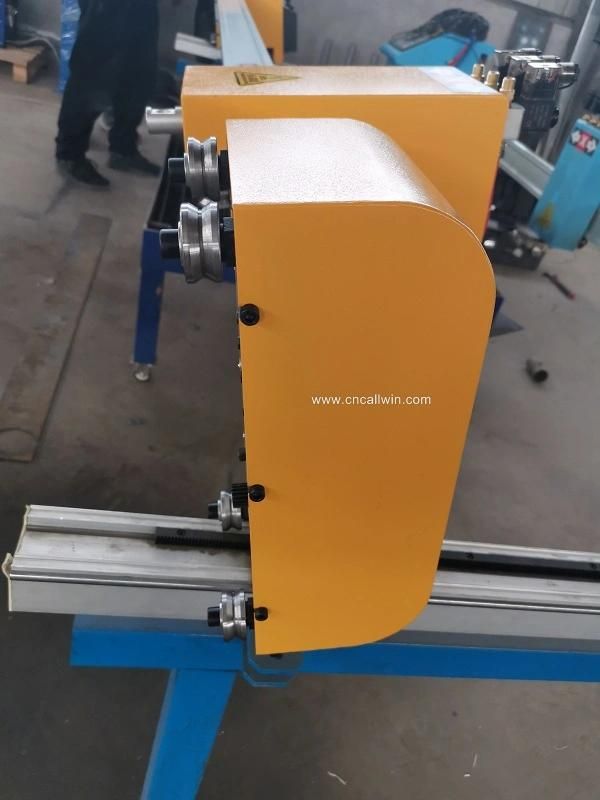

- Drive Mode：Linear Guide and Rack Gear
- Cutter Torch Cooling Method：Air Cooling or Water Cooling
- Current：30-400A Plasma Cutter Source
- Lead Time：7 Days
- Nest Software：Fastcam
- Working Size：1500mmx3000mm
- Working Area：Customized
- Service：Oversea or Online
- Driving System：Stepper Motor
- Height Controller：T.H.C

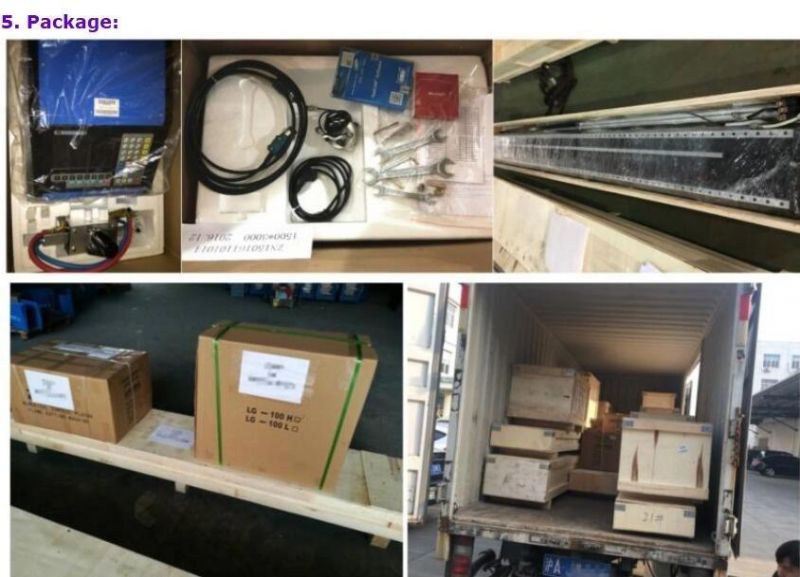

- Transport Package：Wooden Box
- Specification：1530
- Trademark：ALLWIN
- Origin：China
- HS Code：8456909000
Description

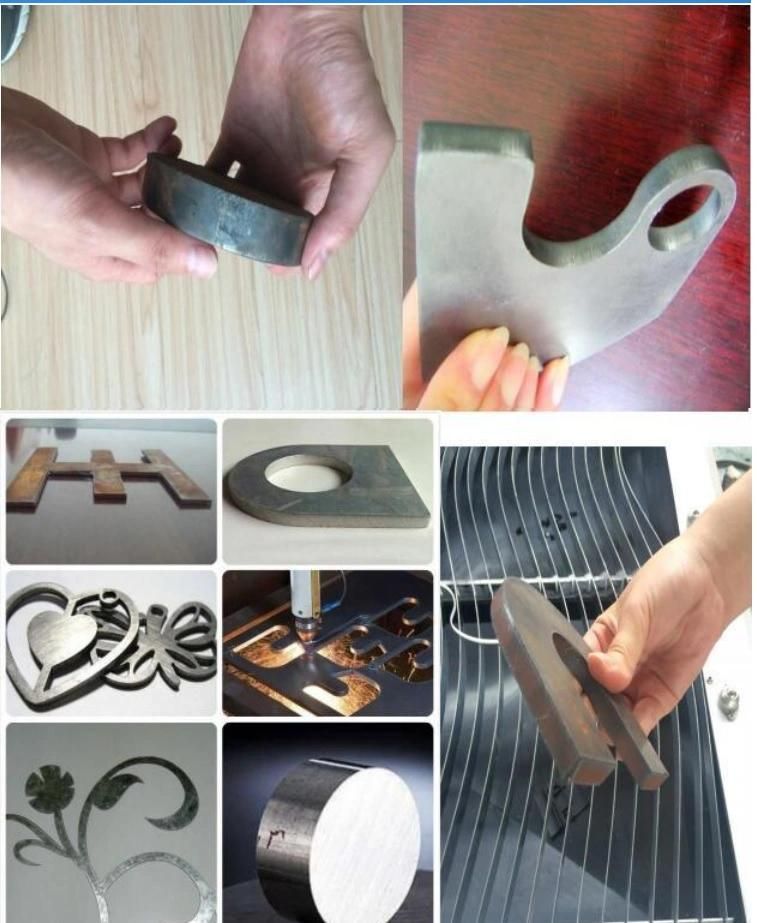

Iron, steel aluminum sheets, galvanized sheets, Titanium plates
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsappAlso, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.Different cnc plasma power supply cutting capacity:
1. Chinese Huayuan Power:
63A cutting thickness: 0-8mm
100A cutting thickness: 0-15mm
160A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
USA Hypertherm power
65A cutting thickness: 0-12mm
85A cutting thickness: 0-16mm
105A cutting thickness: 0-18mm
125A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
Product Application

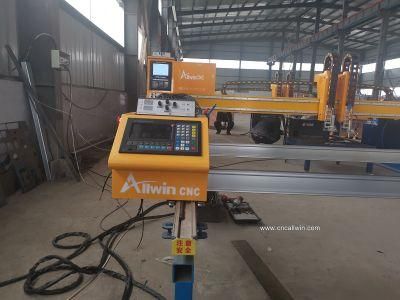

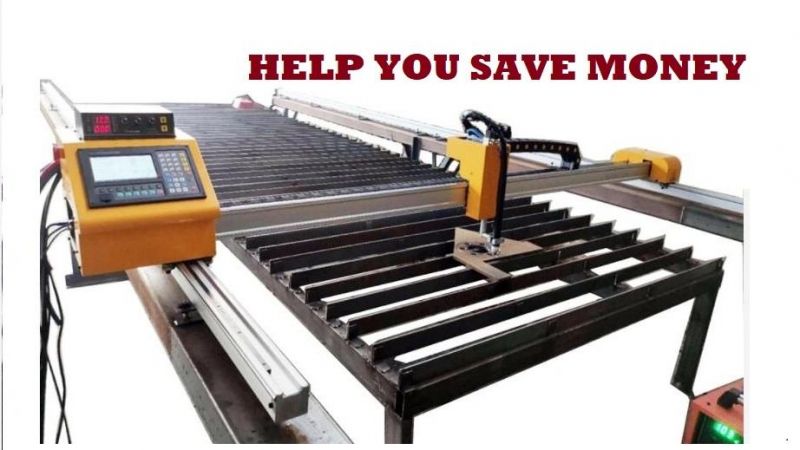

This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.
This gantry plamsa and oxgen gas cutter can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
FAQ for CNC plasma cutting table:
Q: Do you have after-sale service and support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this CNC plasma cutting machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
Q: Are you factory or trading company?
A: We are factory, which manufactures CNC machines with over 10 years experience in CNC machine's industry.
Q: What other things also need after we bought your CNC plasma cutting machines?
A: With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC plasma cutting machine together, then more conveniently to use.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service. Please contact us ASAP and don't try to fix the machine by yourself or someone else. We will response as soon as we can to solve it for you.
Service. We have 10 experienced engineers and 1 technical online customer service to supply 18-hour online service. If you have any problems, we can solve them online via skype and whatsappAlso, remote control service via the software Team Viewer is provided for the customer to install the software and adjust the program.Different cnc plasma power supply cutting capacity:
1. Chinese Huayuan Power:
63A cutting thickness: 0-8mm
100A cutting thickness: 0-15mm
160A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
USA Hypertherm power
65A cutting thickness: 0-12mm
85A cutting thickness: 0-16mm
105A cutting thickness: 0-18mm
125A cutting thickness: 0-20mm
200A cutting thickness: 0-30mm
Product Application

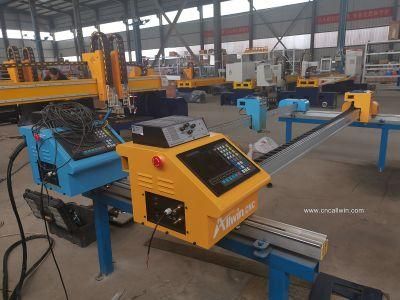

Portable CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time.
This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2d graphics, thus is widely used in metal cutting fields.This gantry plamsa and oxgen gas cutter can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
FAQ for CNC plasma cutting table:
Q: Do you have after-sale service and support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this CNC plasma cutting machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
Q: Are you factory or trading company?
A: We are factory, which manufactures CNC machines with over 10 years experience in CNC machine's industry.
Q: What other things also need after we bought your CNC plasma cutting machines?
A: With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC plasma cutting machine together, then more conveniently to use.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, online service is offered, you could contact our sales. Also, we offer engineer delivery service. Please contact us ASAP and don't try to fix the machine by yourself or someone else. We will response as soon as we can to solve it for you.
