Machine features

_________________________________________________________________________

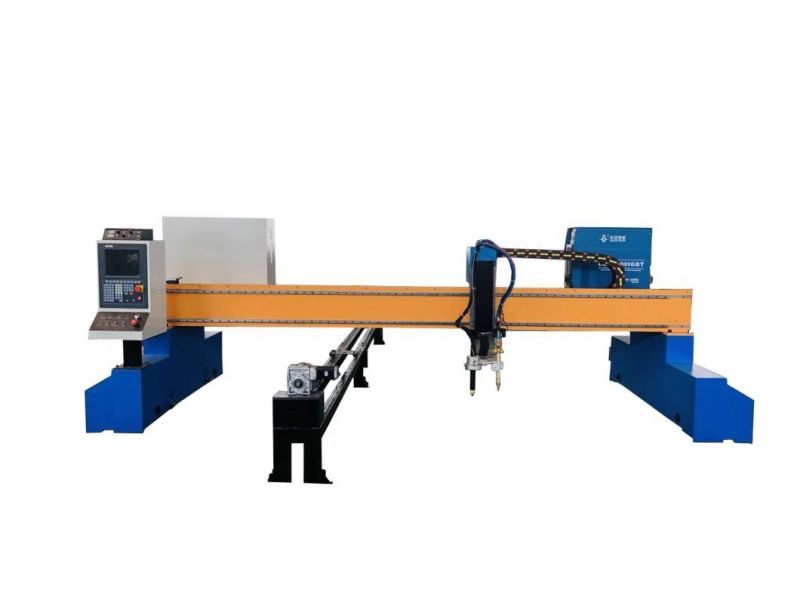

1. Gantry structure, perfect load capacity. The machine body is strong, rigid, high precision, reliable and durable. Gantry plasma cutting machine.

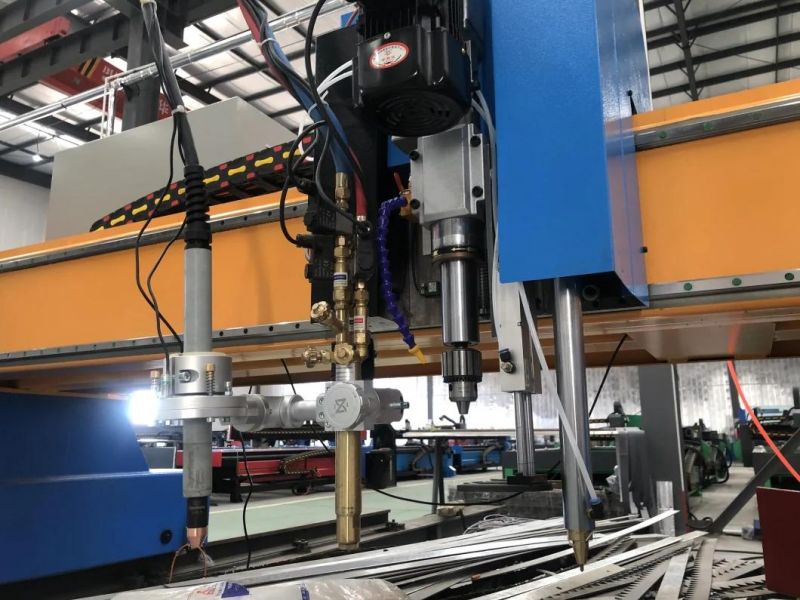

2. Double cutting torch: plasma cutting torch and flame cutting torch (oxygen), suitable for cutting steel boards of different thicknesses.

3. Adopt the well-known Hypertherm plasma energy, supply and domestic cutting torch. CNC plasma cutting machine.

4.The cutting edge is small and smooth, without defections, the thickness for metal cutting is up to 50 mm. Plasma cutting machine.

5. With the automatic arc voltage height adjustment device, the arc success rate exceeds 99% and can protect the cutting torch from damage, increase the cutting quality.

6. Adopts imported high-precision Hiwin linear guide rails, smooth movement, to ensure the machine tool is high precision.

7.The gear and drive rack, customized by a professional manufacturer, are processed on the surface by rapid cemented cooling, which can prolong the life of the machine.

8.Servo drive system is available, with features of function detection, high operating accuracy, wide speed range and short acceleration time.

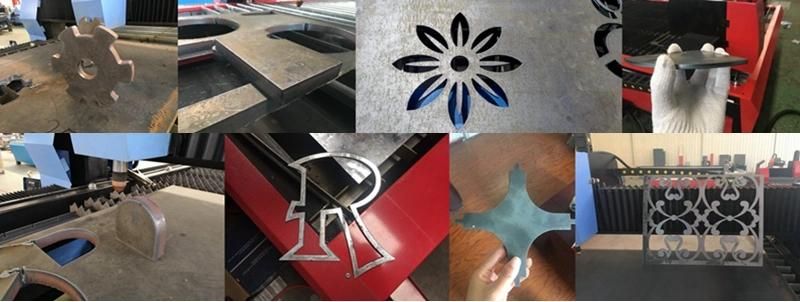

10. Excellent performance in cutting illuminated letters for advertising and channel letters on metal surface board

11. Designer perfectly, select the best machine accessories, to minimize the preferred failure rate.

12. Supports Wentai G code files, ARTCAM, Type 3 software. It also supports AUTOCAD DXF files via transfer software. The control system supports file transfer on U disk, easy operation


Quick Details

________________________________________________________________________

Condition: New

Place of Origin: ShanDong, China (Mainland)

Model Number: 6030

Voltage: 220V / 380V

Nominal power: 7.5kw

Dimension (L * W * H): 3000 * 6000 * 800 mm (L * W * H)

Weight: 2500 kg

Certification: ISO

Warranty: 2 years

After-sales service provided: engineers available to service machinery abroad

Name: CNC plasma cutter

Color: placement color

Cutting mode: oxyfuel (flame)

Cutting thickness: 0-60mm

Control system: START control system

Cutting speed: 0-15000 mm / min.

Cutting material: Metal. Metal Alloy Aluminum

Machine type: cnc plasma cutter

Type: Gantry type

Reference
_______________________________________________________________________________

For metal Pipe cutting, if you need this function, can add rotary shaft in addition, just tell us the diameter and the length of pipe needed, we will recommend the suitable rotary axis to you.

Assembly parts:

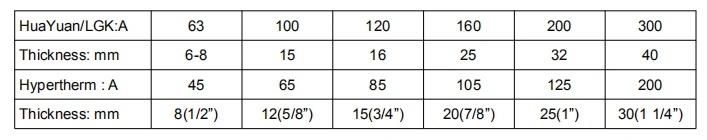

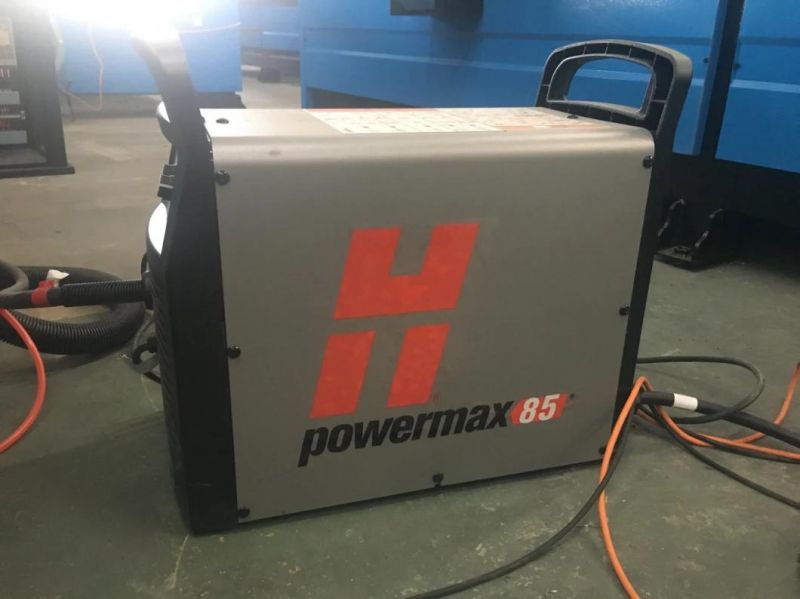

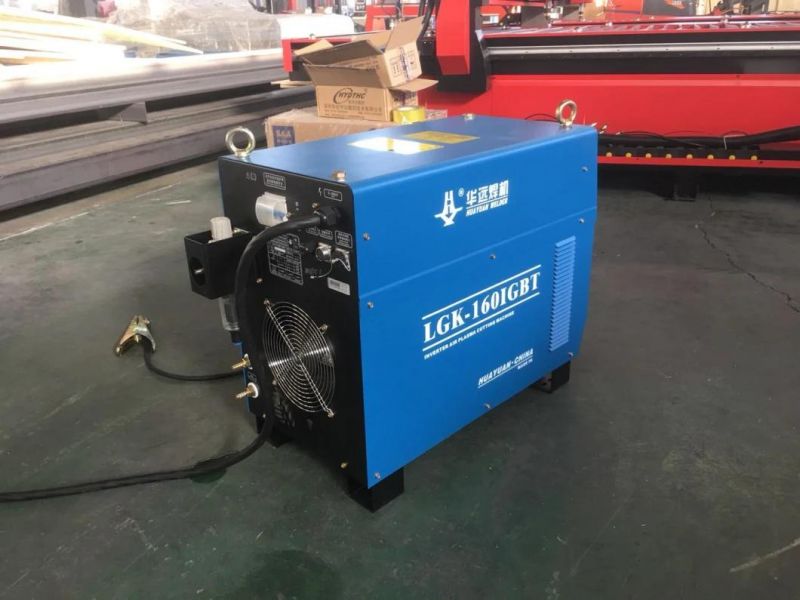

                                                  LGK                                                                       Hyper therm Power max

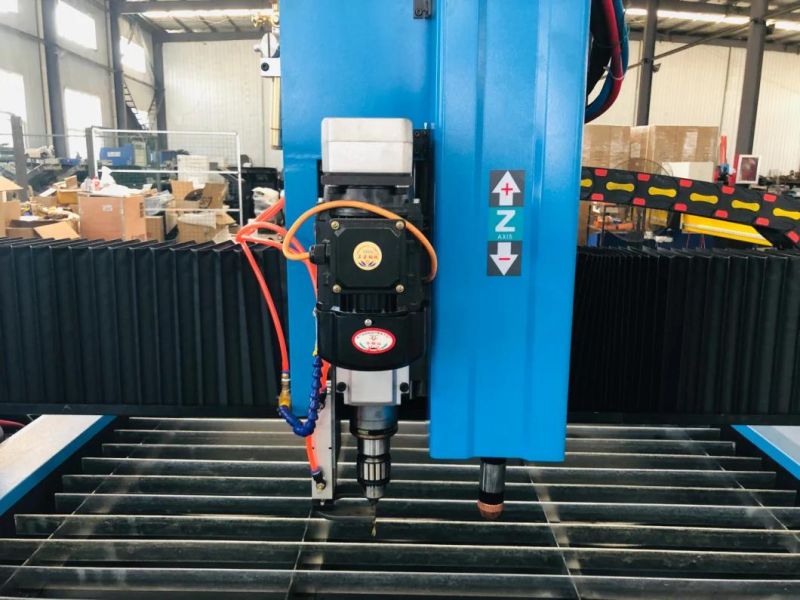

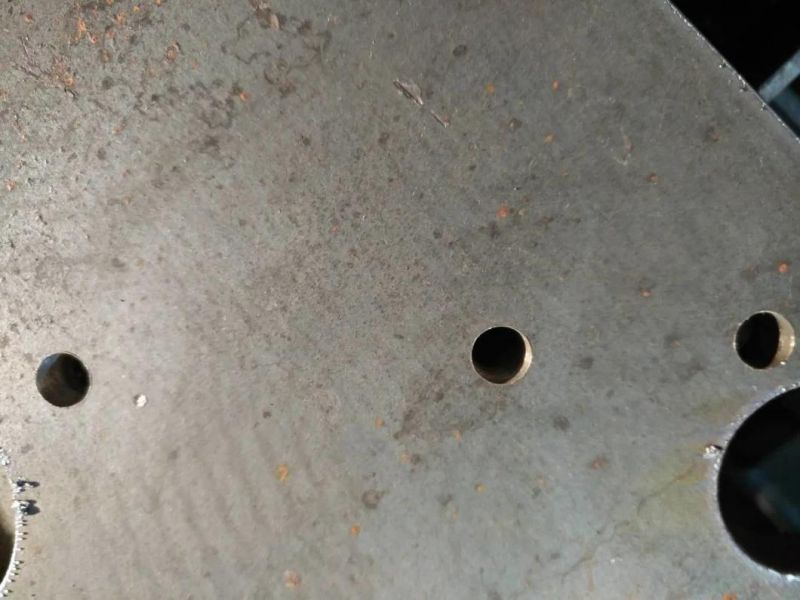

Drilling Bit (Suggest Diameter <18mm)

Maring Head (can mark on metal sheet, like company logo etc.)

Equipped all of functions above mentioned

Application

________________________________________________________________________

1) Shipbuilding, construction equipment, transportation equipment, aerospace industry, bridge construction, wind power, structural steel, boiler containers, agricultural machinery, electrical chassis cabinets, elevator manufacturers, textile machinery, equipment environmental protection, etc.

2) Aluminum, copper, titanium, nickel, iron, galvanized sheet, white steel, titanium plate, carbon steel, stainless steel, alloy steel, composite metal.
